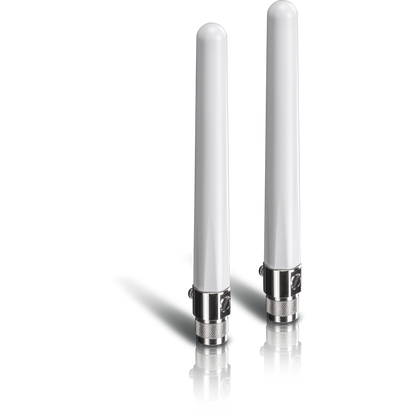

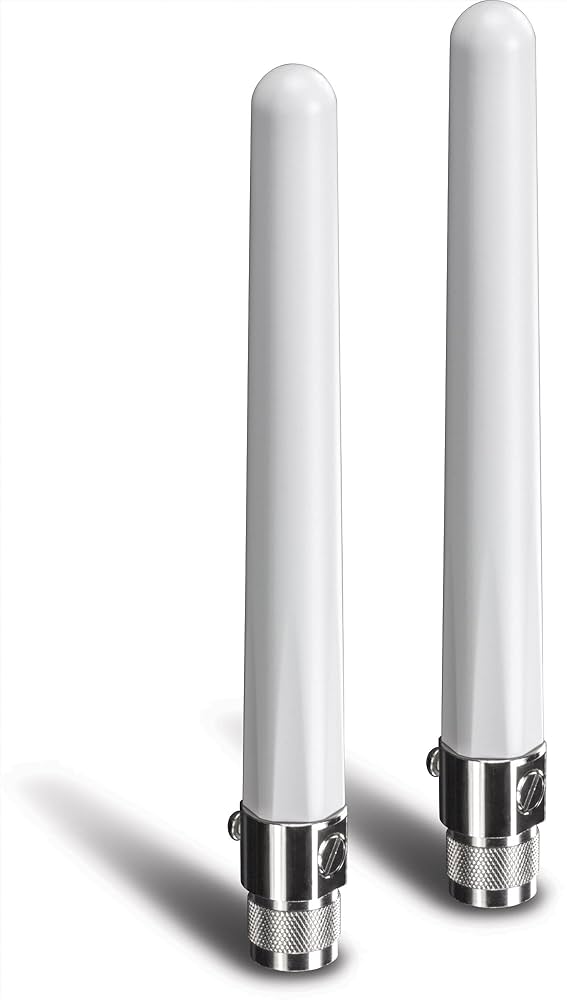

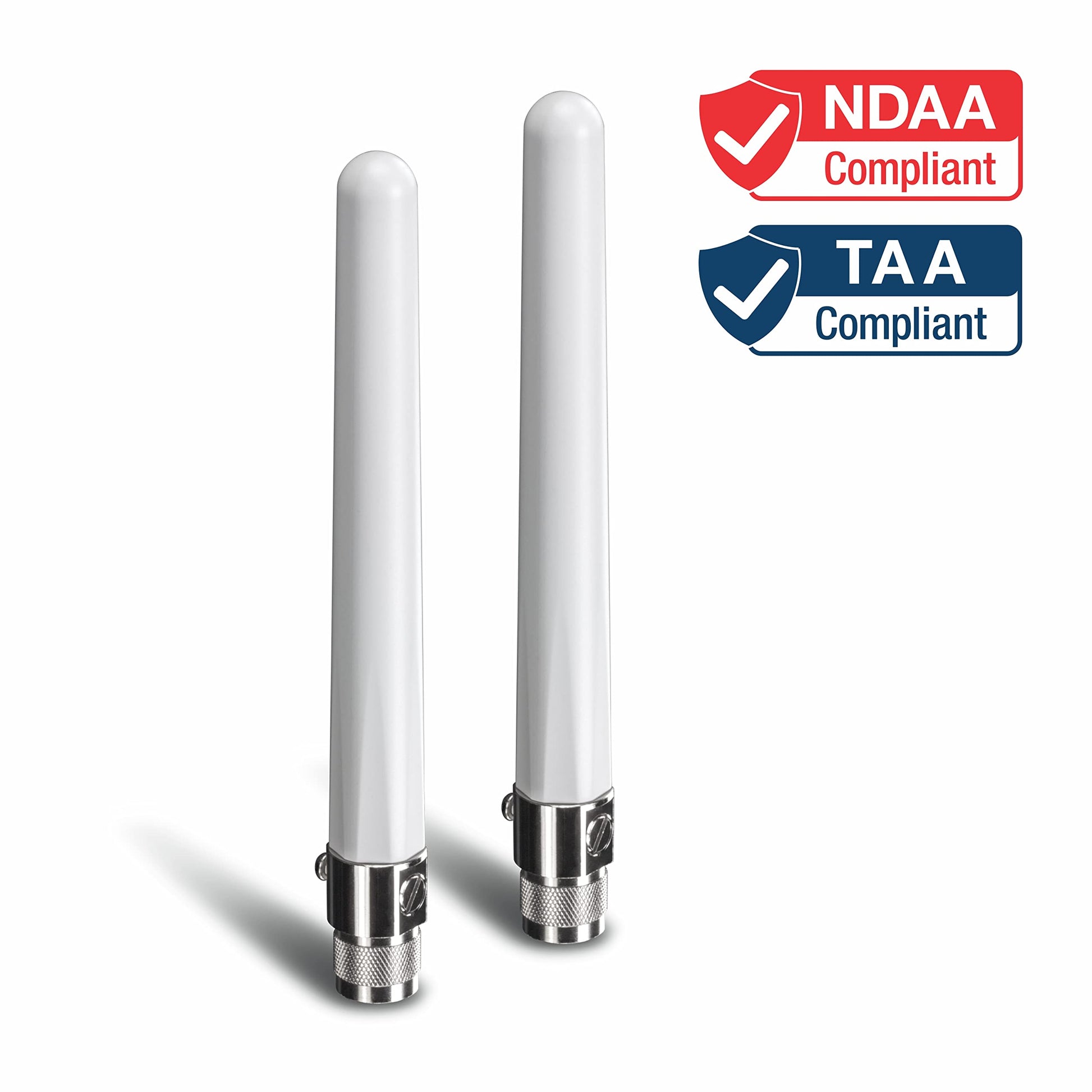

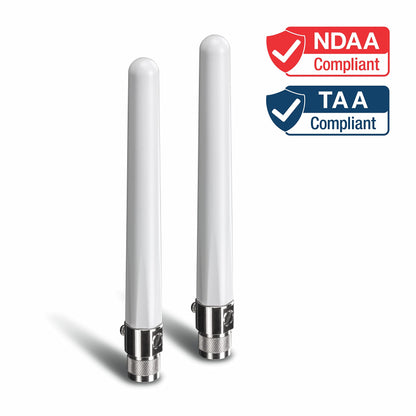

TRENDnet TEW-AO46S Outdoor Dual Band Omni Antenna Kit, 4/6 dBi

VENDOR: TRENDNET Mfg Part#: TEW-AO46S UPC#: 710931130539
1 5
Photo is for illustration purposes only. Actual product may be different.
$65.02
$65.02
Sale Sold out
MSRP: $69.99
Shipping calculated at checkout.
  • Omni-directional antenna design for 360° signal distribution
  • Dual-band support: 2.4 GHz (4 dBi gain) and 5 GHz (6 dBi gain)
  • N-Type male connectors for secure and reliable connections
  • Outdoor-rated black housing for weather resistance
  • Standard 50-ohm impedance for signal efficiency
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enhances wireless coverage with dual-band 4/6 dBi gain for outdoor applications.
  • TAA compliance and Taiwan origin ensure suitability for government and enterprise procurement.
  • Durable weatherproof design with N-Type connectors offers dependable long-term deployment.

Product Overview

The TRENDnet TEW-AO46S is an outdoor dual band omni-directional antenna kit designed to extend wireless network coverage in demanding environments. With support for 2.4 GHz and 5 GHz frequencies, it delivers reliable 4 dBi and 6 dBi gain respectively. Housed in a rugged weatherproof casing and fitted with N-Type male connectors, this antenna ensures durable performance and efficient signal transmission. It also meets TAA compliance standards and is backed by a 3-year limited warranty, providing peace of mind for enterprise and governmental applications.

Specifications

Product Overview
Product Type Dual Band Omni Antenna Kit
Form Factor External
Mount Type Pole mount
Weight 310 g (each antenna)
Power Requirements Passive; no power required
Application Wireless network coverage extension
Warranty 3-Year Limited Warranty

Wireless Features
Frequency Band 2.4 GHz and 5 GHz
Gain 2.4 GHz: 4 dBi, 5 GHz: 6 dBi
Antenna Type Omni-directional
Wireless Application 802.11a/b/g/n/ac
Dual-Band Support Yes
SWR Range <2.0

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications FCC
Environmental Certification Yes

Advanced Security Features
Firewall Protection
IDS/IPS
Content Filtering
Malware Protection

Interfaces
Connector Type N-Type Male
Impedance 50 Ohms
Cable Type Compatible Low-loss coaxial cable
VSWR <= 2.0:1
Polarization Vertical
Beamwidth (H x V) 360° horizontal / 25° vertical (2.4 GHz), 360° horizontal / 15° vertical (5 GHz)

Physical & Environmental
Enclosure UV-resistant and weatherproof housing
Color Black
Dimensions (L x D) 335 x 22 mm (13.2 x 0.87 in.) per antenna
Operating Temperature -40°C to 80°C (-40°F to 176°F)
Storage Temperature -40°C to 80°C (-40°F to 176°F)
Operating Humidity Max. 95% non-condensing
Mounting Kit Included Yes (pole mounting instructions & brackets provided)
Lightning Protection External surge protection recommended

Cloud Management & Licensing
Cloud Management
License Required No
