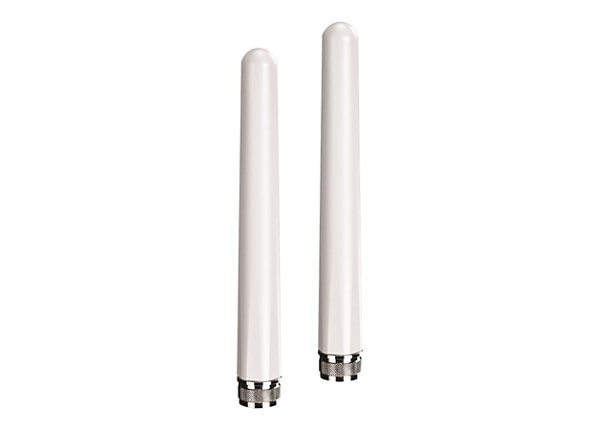

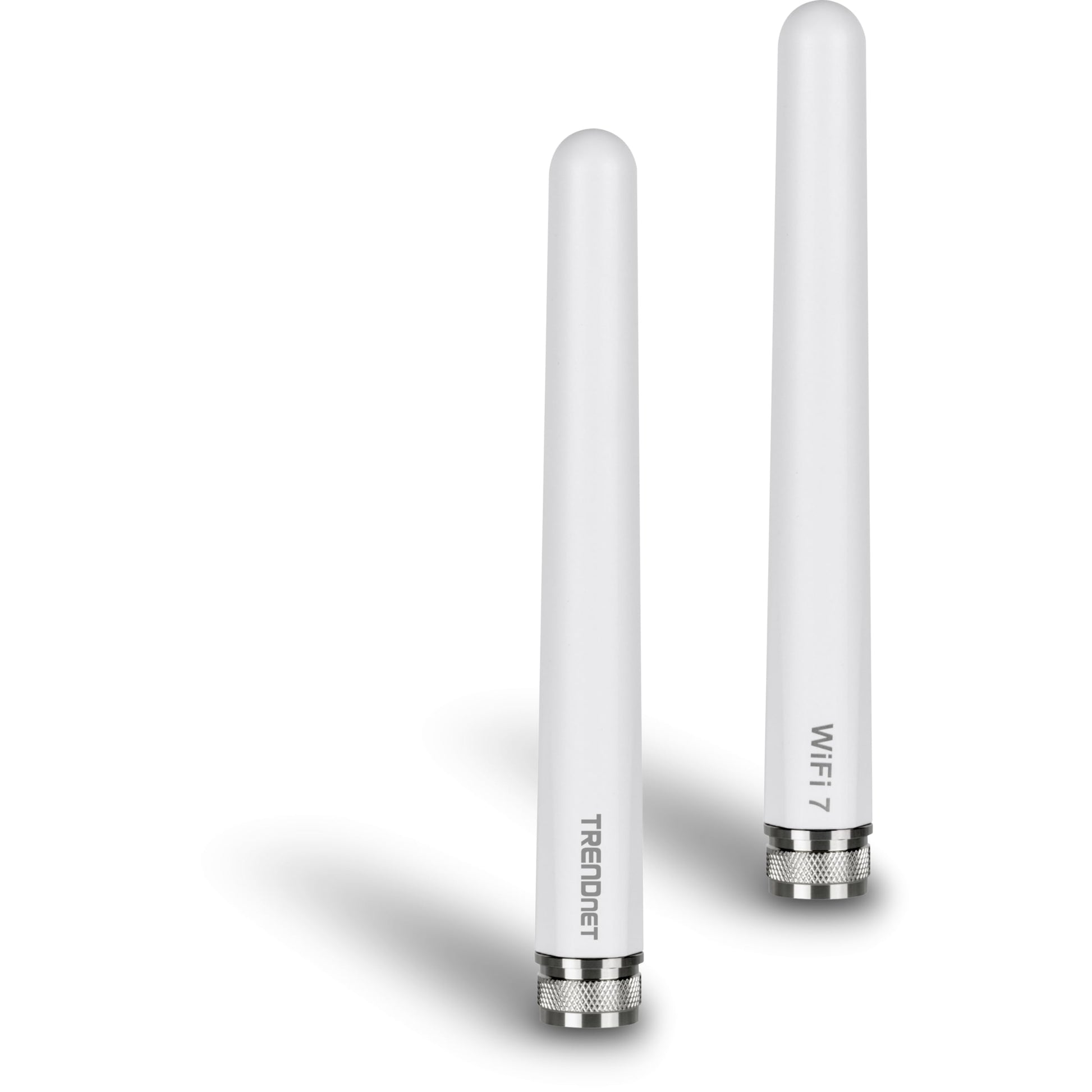

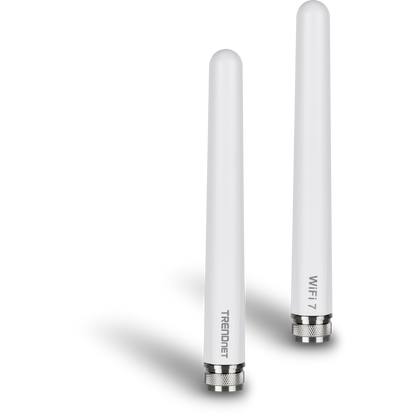

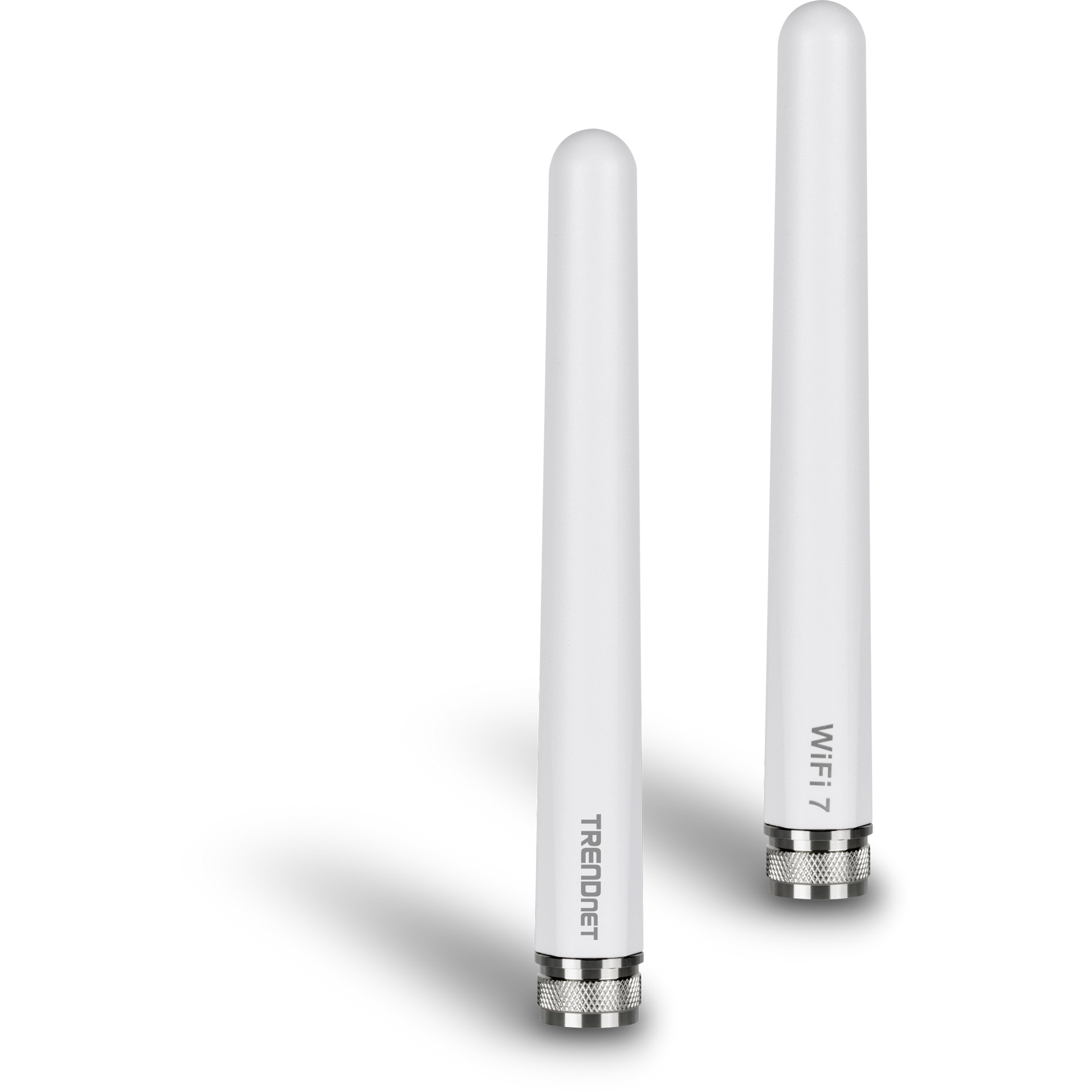

TRENDNET TEW-AO57 Outdoor Dual Band Antenna Kit, 3/6/7 dBi

VENDOR: TRENDNET Mfg Part#: TEW-AO57 UPC#: 710931130522
1 5
Photo is for illustration purposes only. Actual product may be different.
$34.76
$34.76
Sale Sold out
MSRP: $35.99
Shipping calculated at checkout.
  • Omni-directional outdoor antenna with 3 dBi (2.4GHz), 6.2 dBi (5GHz), and 6.9 dBi (6GHz) max gains
  • Operates across 2.4 GHz, 5 GHz, and 6 GHz frequency bands for tri-band support
  • Integrates via N-Type Male connector with 50 ohm impedance
  • Compatible with 802.11be/ax/ac/n/g/b/a routers and access points with N-type female ports
  • TAA-compliant design suitable for government applications
  • Compact white enclosure measuring 0.78" wide and 7" deep

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports tri-band frequencies (2.4/5/6 GHz) to maximize compatibility with latest Wi-Fi standards including Wi-Fi 6E and Wi-Fi 7
  • TAA compliance and Taiwan origin ensure suitability for federally regulated or enterprise-grade procurement
  • Rugged, compact outdoor-ready design provides reliable performance in challenging environments

Product Overview

The TRENDNET TEW-AO57 Outdoor Dual Band Antenna Kit is engineered to deliver reliable wireless connectivity for enterprise, industrial, and high-demand outdoor environments. Featuring an omni-directional radiation pattern, this tri-band antenna supports 2.4 GHz, 5 GHz, and 6 GHz frequency bands with maximum gains of 3 dBi, 6.2 dBi, and 6.9 dBi respectively. Built with an N-Type Male connector, the antenna integrates easily with compatible routers and access points. Its 50-ohm impedance ensures optimal signal integrity for wireless network expansion.

Certified for outdoor use, the TEW-AO57 features a durable chassis with compact dimensions and TAA compliance, making it ideal for government or regulated environments. Manufactured in Taiwan and backed by a 3-year service plan, this antenna is a cost-effective solution for boosting Wi-Fi range in large or hard-to-cover outdoor areas.

Specifications

Product Overview
Product Type Outdoor Wireless Antenna Kit
Antenna Type Omni-directional
Form Factor External Antenna
Environment Outdoor
Color White
Power Requirements Passive (no power required)
Product Family Networking
Mounting Type Pole-mount or wall-mount (hardware included)
Warranty 3-year limited warranty

Wireless Features
Frequency Bands Supported 2.4 GHz; 5 GHz; 6 GHz
Gain (2.4 GHz) 3 dBi
Gain (5 GHz) 6.2 dBi
Gain (6 GHz) 6.9 dBi
Supported Standards IEEE 802.11be/ax/ac/n/g/b/a
Radiation Pattern Omni-directional
Polarization Vertical
Operating Frequency Range 2400–2500 MHz; 5000–5875 MHz; 5925–7125 MHz

Compliance & Origin
TAA Compliance Yes
Country of Origin Taiwan
Certifications CE, FCC
RoHS Compliance Yes
UPC 710931130522

Interfaces
Antenna Connector Type N-Type Male
Connector Gender Male
Impedance 50 ohms
Compatibility Compatible with 802.11be/ax/ac/n/g/b/a routers and access points with N-type female connectors

Physical & Environmental
Width 0.78 inch (20 mm)
Depth (Length) 7 inch (177.8 mm)
Weight 0.3 lbs (approx.)
Radome Material UV-resistant ABS plastic
Mounting Hardware Included Yes
Operating Temperature -30°C to 80°C (-22°F to 176°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 10% to 95% (non-condensing)
Ingress Protection Rating IP66 (suitable for outdoor use)

Cloud Management & Licensing
Cloud Management Support No
Licensing Requirements No licensing required
