| Product Type | Industrial Fiber Media Converter |
| Form Factor | DIN-rail or wall-mountable |
| Power Requirements | 12 to 56 VDC, redundant power input |
| Power Consumption | 1.92 Watts |
| Weight | 0.3 kg (0.66 lb) |

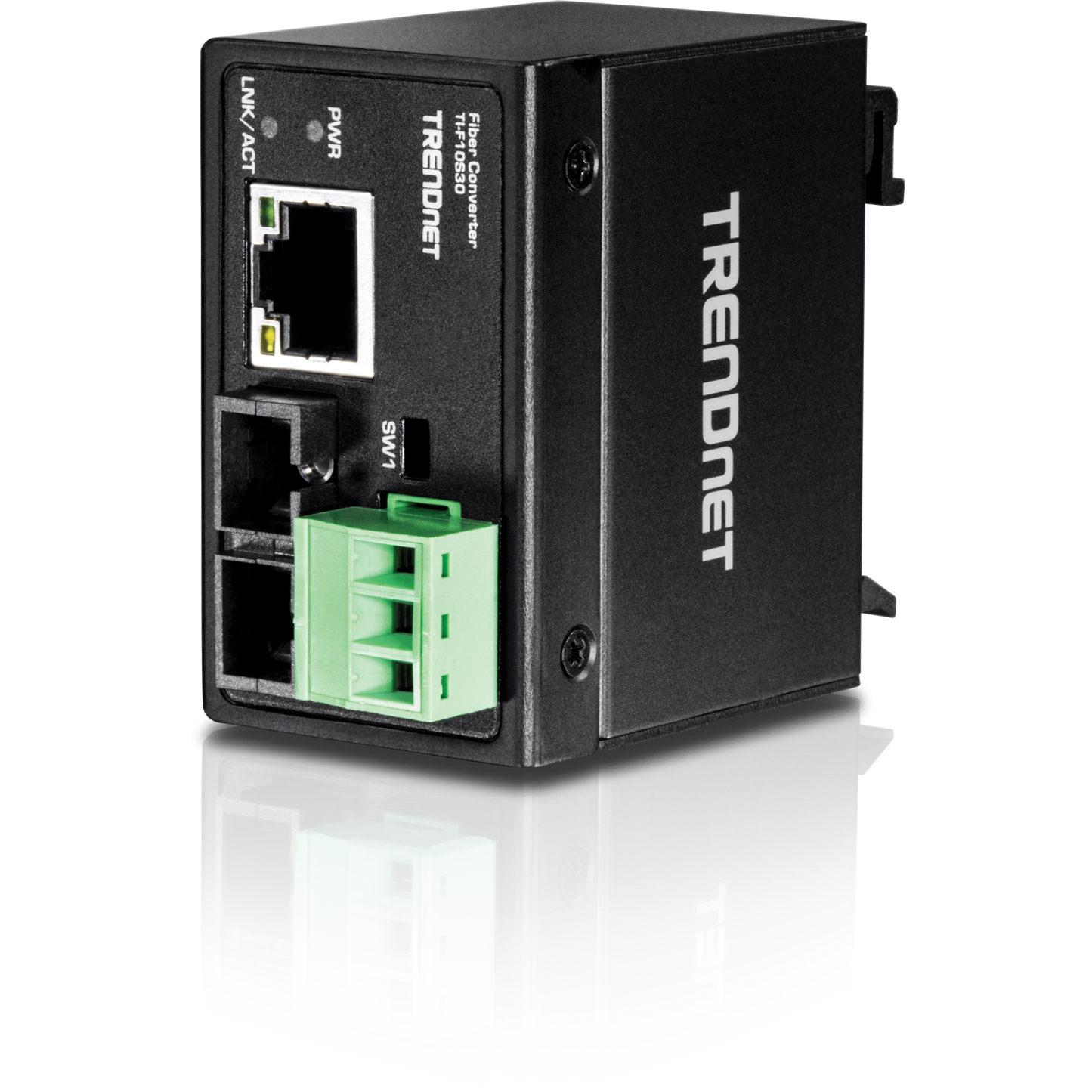

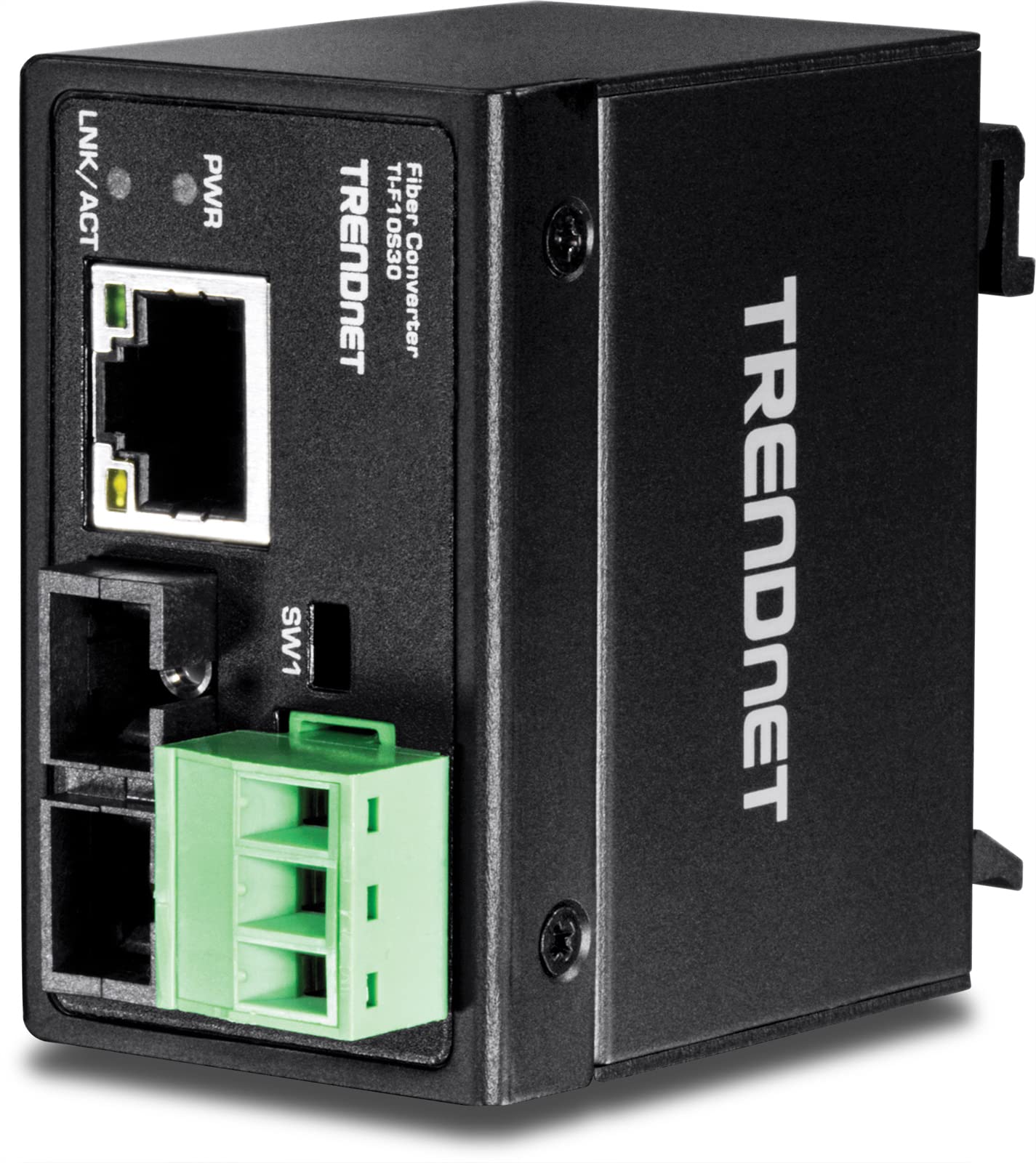

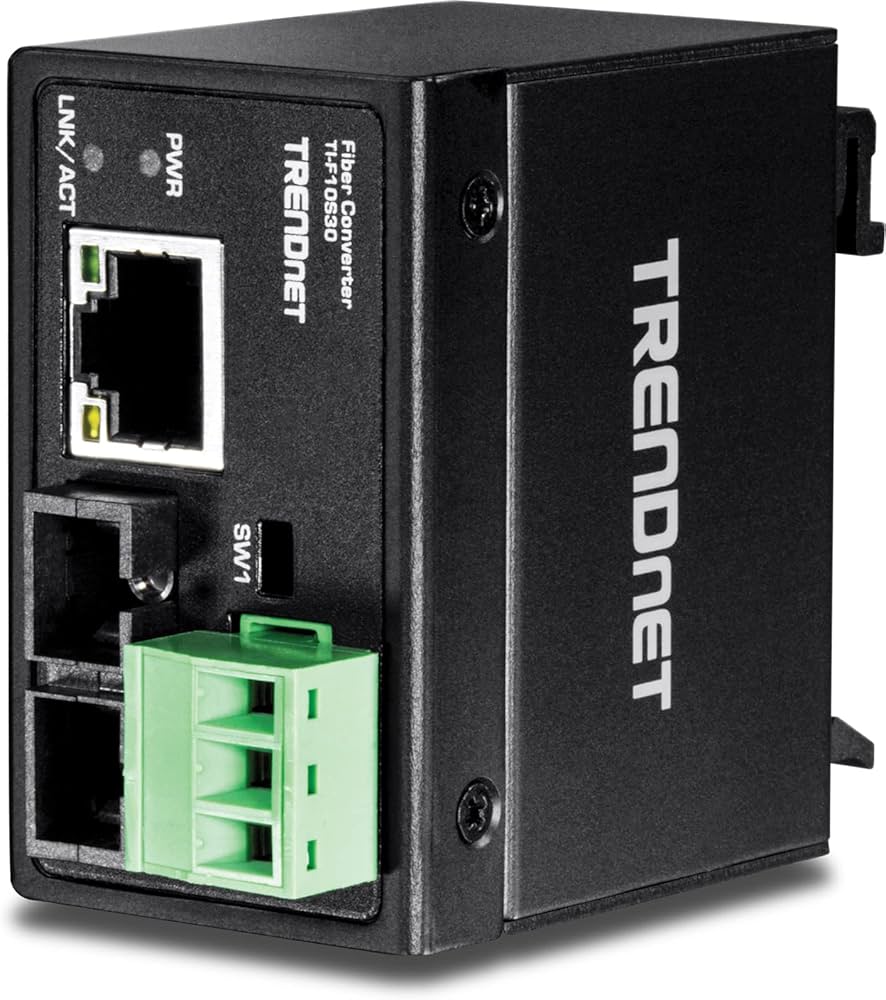

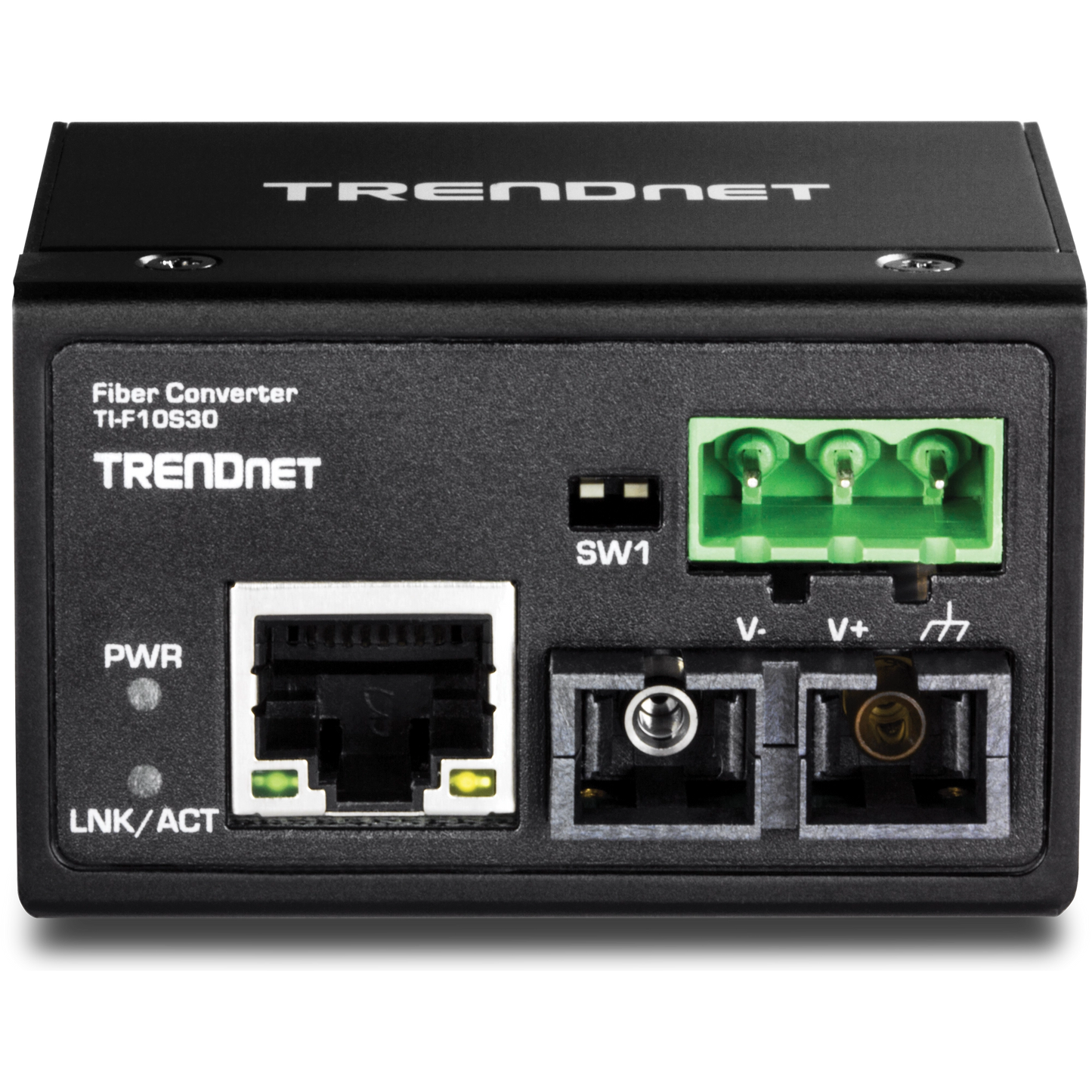

TRENDnet TI-F10S30 Industrial 100Base-FX SC Fiber Converter
Photo is for illustration purposes only. Actual product may be different.
Regular price
$112.14
Regular price
Sale price
$112.14
Unit price
per
MSRP: $114.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports 100Base-FX SC-type fiber and 10/100 Mbps copper port for flexible media conversion
- Operates on 1310 nm wavelength with a maximum fiber range of 30 km
- Compact industrial housing: 2.36" width, 1.96" depth, 1.37" height
- Robust build for hardened industrial environments
- TAA compliant and made in Taiwan
- Includes 3-pin terminal block for industrial power connections
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Ideal for industrial and long-distance network applications with its 30 km max transfer range
- Rugged design ensures reliable performance in harsh conditions and demanding environments
- TAA compliance and 3-year limited warranty make it a trusted choice for enterprise and government projects
Product Overview
Hardened Industrial 100Base-FX Single-Mode SC Fiber ConverterSpecifications
Product Overview
Wireless Features
| Wireless Support |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC, EN 55022 Class A, EN 55024 |
| RoHS Compliant | Yes |
| Warranty | 3-year limited |
Advanced Security Features
| Industrial EMC Protection | Yes |
| Reverse Polarity Protection | Yes |
| Surge Protection | Yes (power input and data line) |
Interfaces
| Copper Port Count | 1 x 10/100 Mbps RJ-45 |
| Fiber Port Count | 1 x 100Base-FX SC-type |
| Fiber Type | Single-mode |
| Connector Type | SC |
| Max Transfer Distance | 30 km |
| Wavelength | 1310 nm |
| Terminal Block Interfaces | 3-pin, power input |
| Data Transfer Rate | 100 Mbps full duplex |
| Data Link Protocol | Fast Ethernet |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
Physical & Environmental
| Width | 2.36 in (60 mm) |
| Depth | 1.96 in (50 mm) |
| Height | 1.37 in (35 mm) |
| Enclosure Type | Metal, IP30-rated |
| Mounting Options | DIN-Rail or wall mountable |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Humidity | 5%–95% RH (non-condensing) |
| Shock Resistance | EN 60068-2-27 |
| Vibration Resistance | EN 60068-2-6 |
| Free Fall Resistance | EN 60068-2-32 |
Cloud Management & Licensing
| Remote Management | No |
| Cloud Management | No |
| Licensing Requirement | None |
