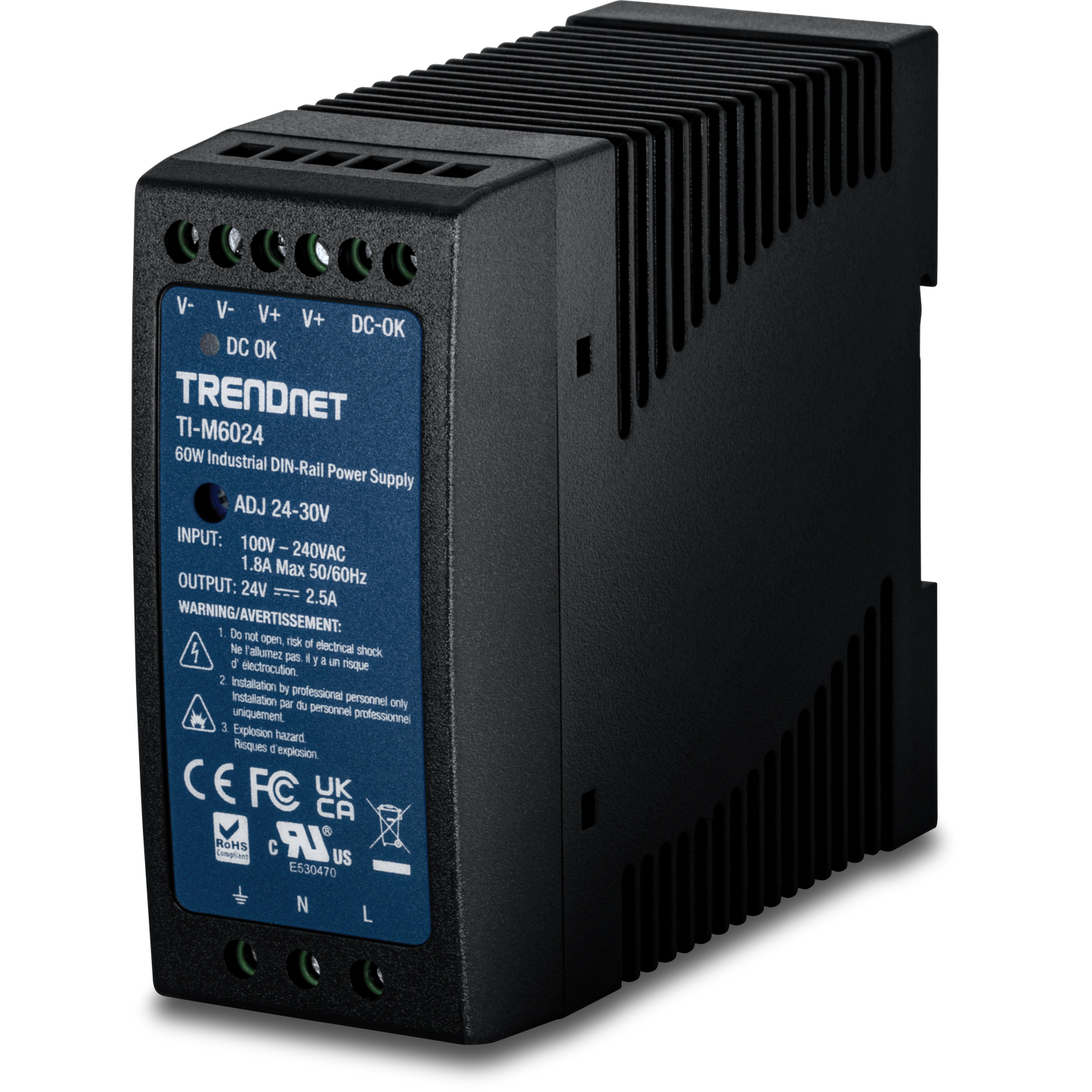

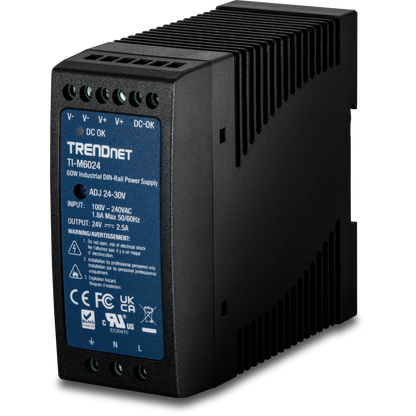

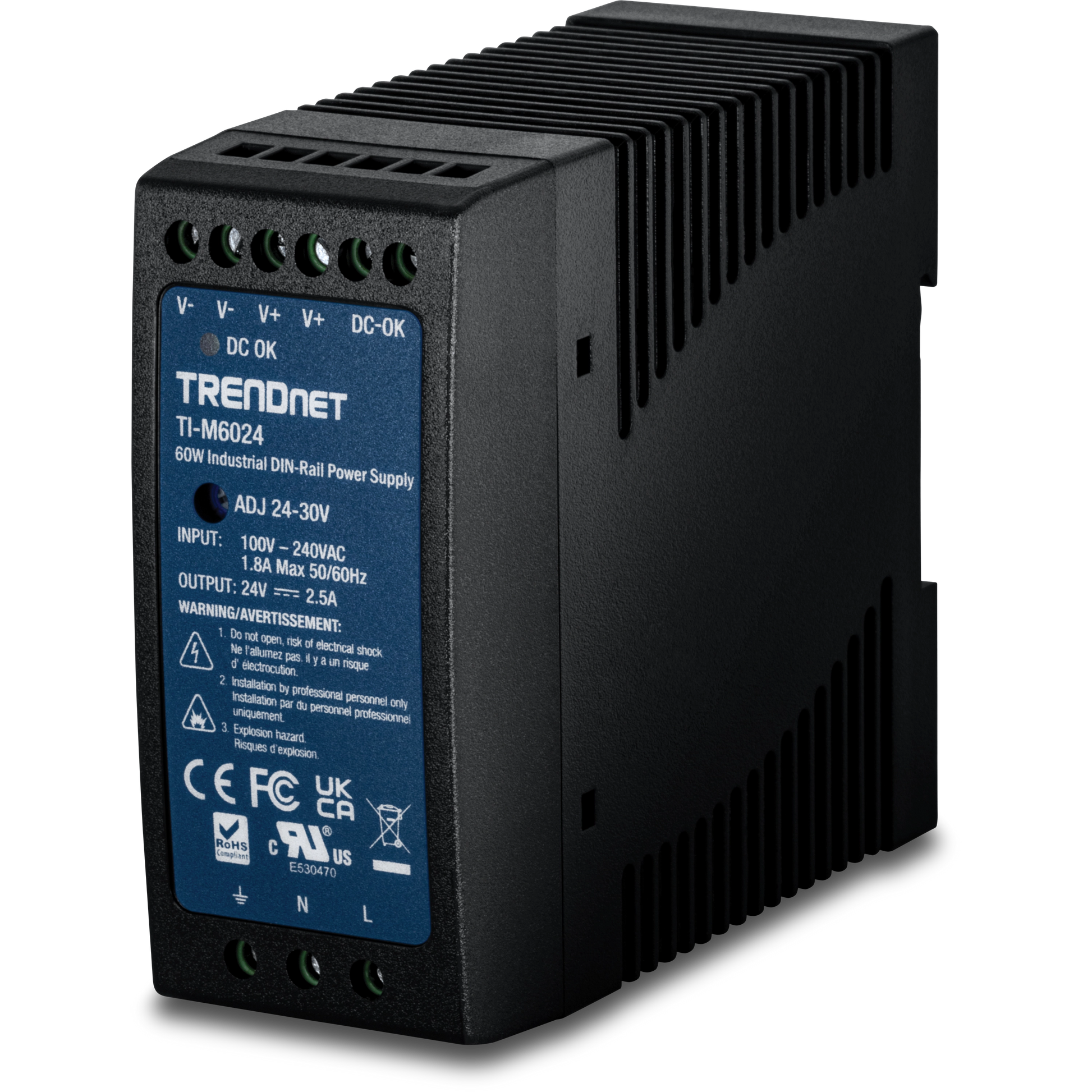

TRENDnet TI-M6024 DIN Rail 24V 60W Industrial Power Supply

VENDOR: TRENDNET Mfg Part#: TI-M6024 UPC#: 710931160376
1 4
Photo is for illustration purposes only. Actual product may be different.
$39.44
$39.44
Sale Sold out
MSRP: $39.99
Shipping calculated at checkout.
  • 60W industrial power supply with 24V, 2.5A output
  • Wide input voltage range: 100–240V AC or 120–370V DC
  • DIN-rail mount integration for industrial settings
  • Operating temperature range from -20°C to 70°C
  • Supports up to 90% non-condensing humidity
  • TAA-compliant, built in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial environments with high temperature and humidity tolerance.
  • Universal input support ensures global compatibility in diverse power scenarios.
  • DIN-rail mount design offers simplified installation in control panels and network enclosures.

Product Overview

DIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP - Industrial power supply with integrated DIN-rail mount;Universal AC input - 1 Year Warranty

Specifications

Product Overview
Type Industrial DIN Rail Power Supply
Model TI-M6024
Form Factor DIN Rail Mountable
Power Output 60 W
Output Voltage 24 V DC
Output Current 2.5 A
Input Voltage Range 100–240 V AC / 120–370 V DC
Input Frequency 50/60 Hz
Input Current 1.8 A
Mounting Type DIN Rail
Warranty 1 Year

Physical & Environmental
Width 40 mm
Depth 100 mm
Height 90 mm
Operating Temperature Min -20 °C
Operating Temperature Max 70 °C
Humidity Range (Operating) Max 90% (non-condensing)
Cooling Convection
Insulation Resistance ≥100 MΩ @ 500 VDC
Dielectric Strength 3.0 kVAC input to output
Storage Temperature Range -40 to 85 °C
Storage Humidity 5% to 95% non-condensing
MTBF >300,000 hours

Cloud Management & Licensing
Cloud Management
Licensing Requirements
Included Cloud Features

Interfaces
Input Connector Type Terminal Block
Output Connector Type Terminal Block

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, UL 508, RoHS
EMC Standards EN 61000-6-2, EN 61000-6-3
Safety Standards UL 508, EN 60950-1

Advanced Security Features
Overload Protection Yes
Over Voltage Protection Yes
Short Circuit Protection Yes
Over Temperature Protection Yes
