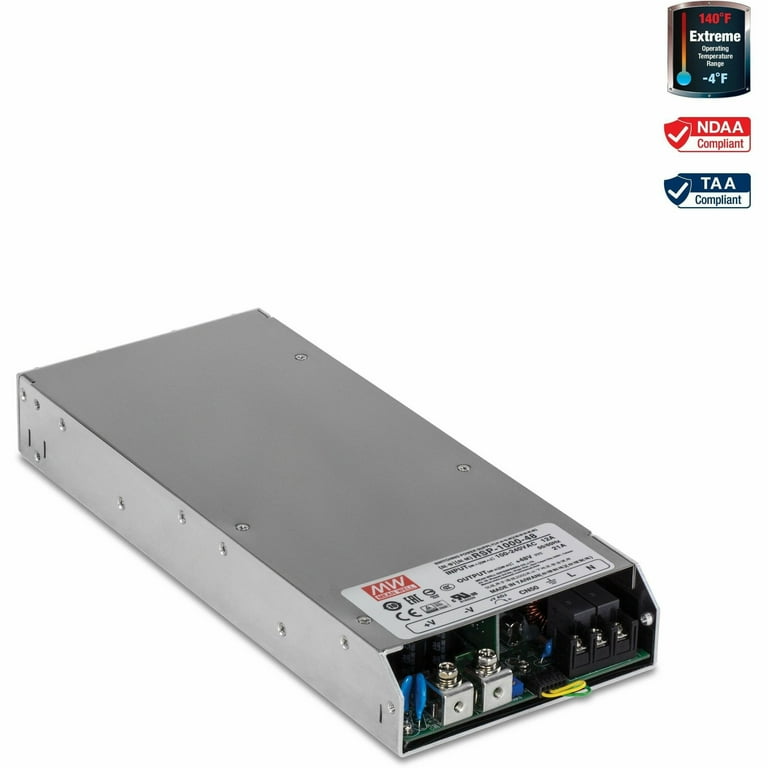

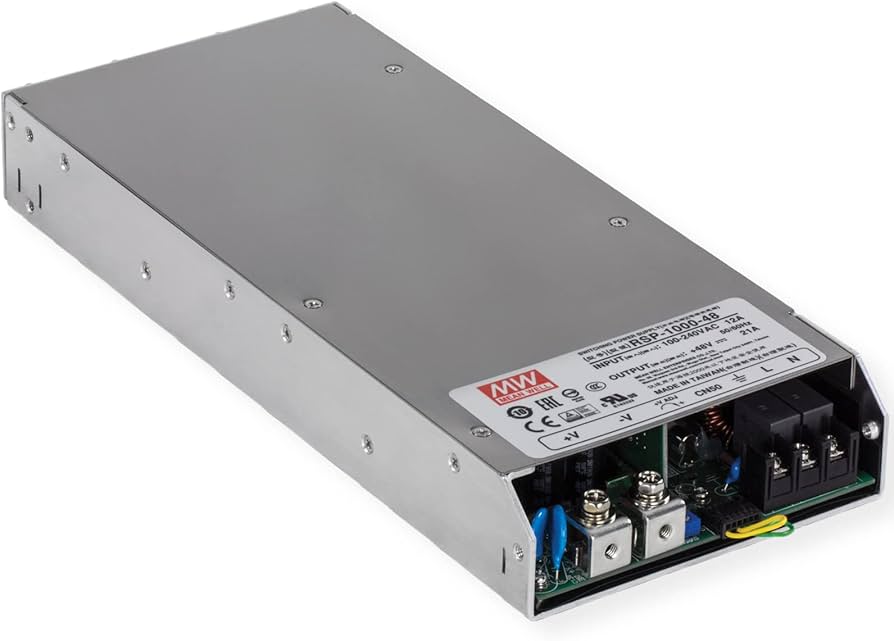

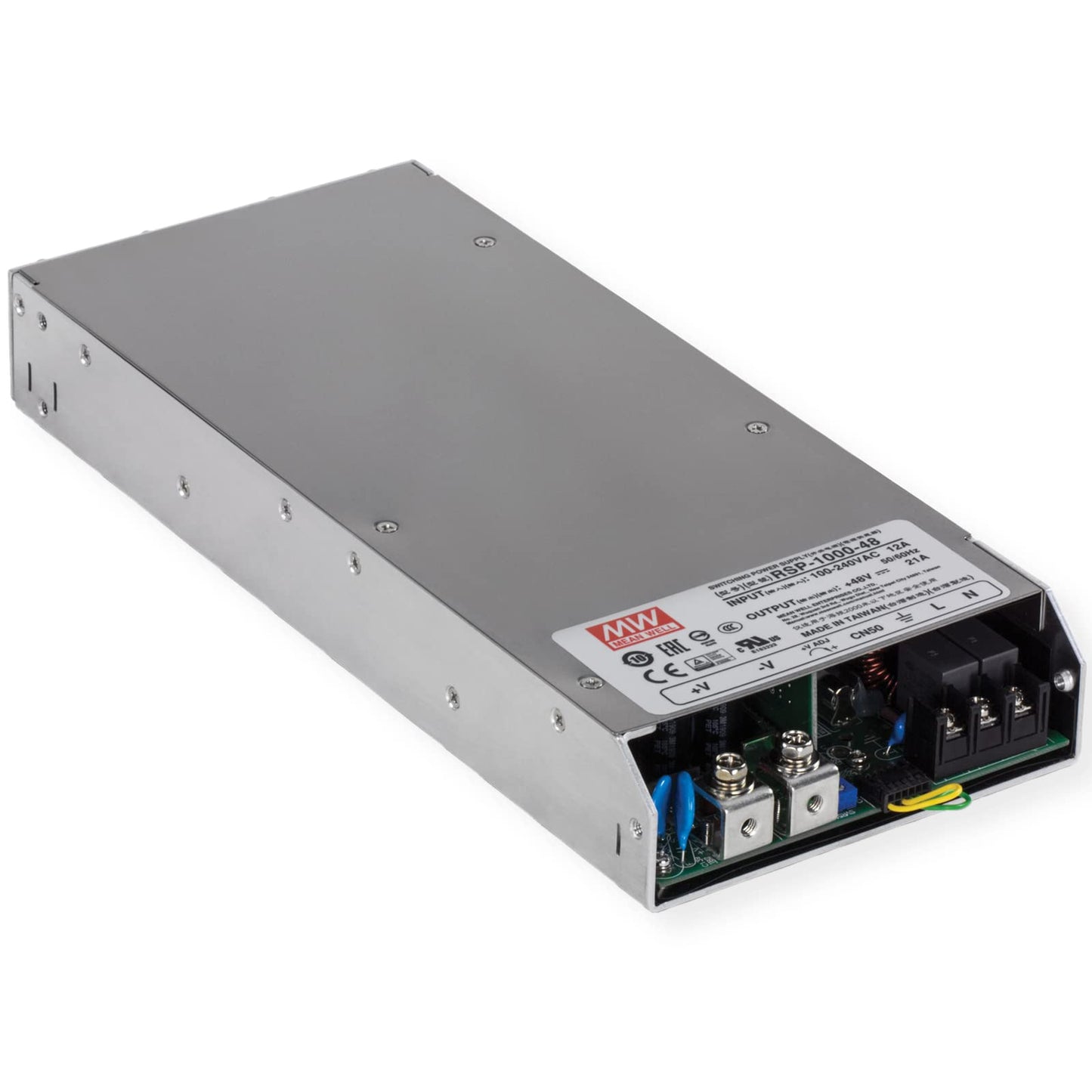

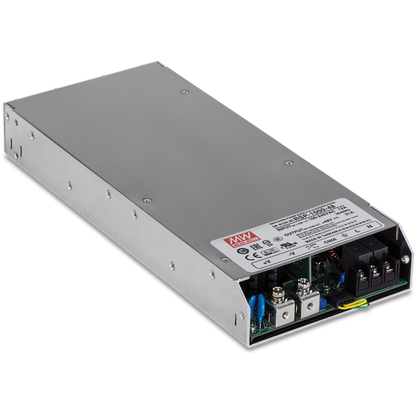

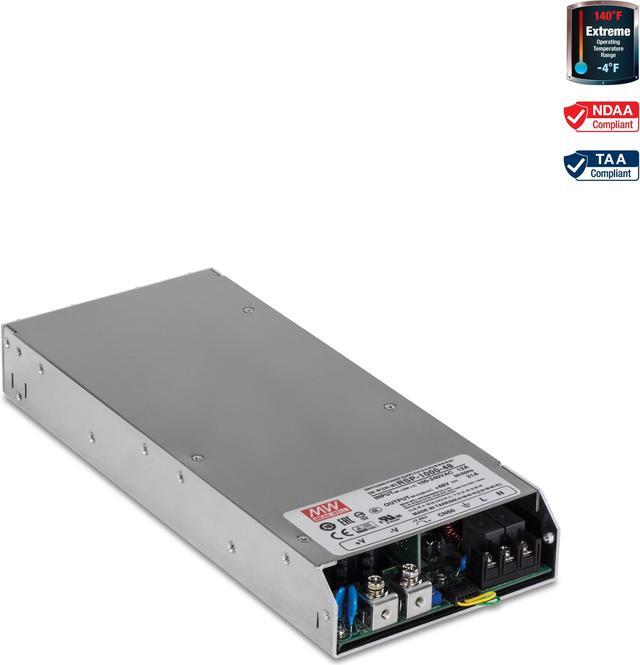

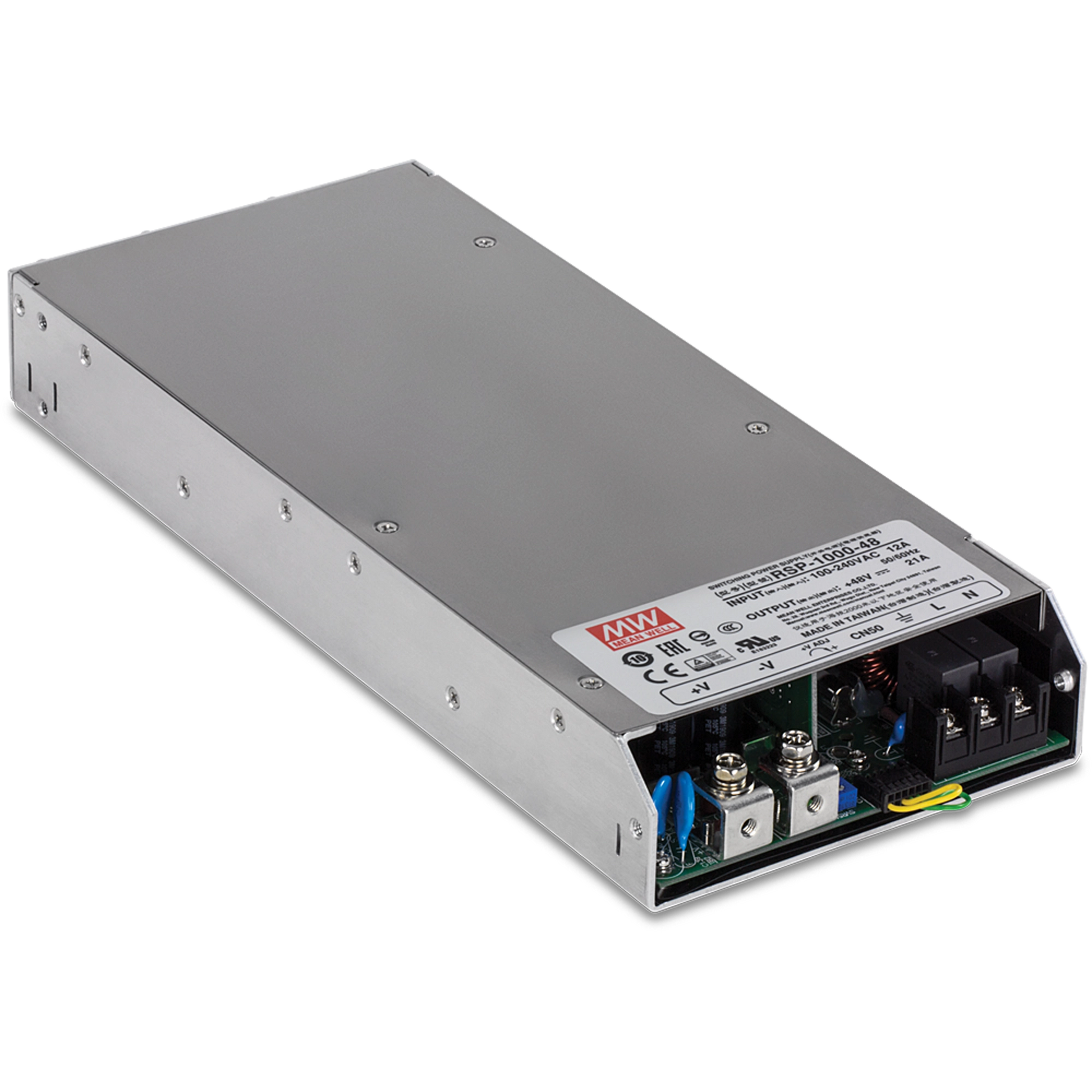

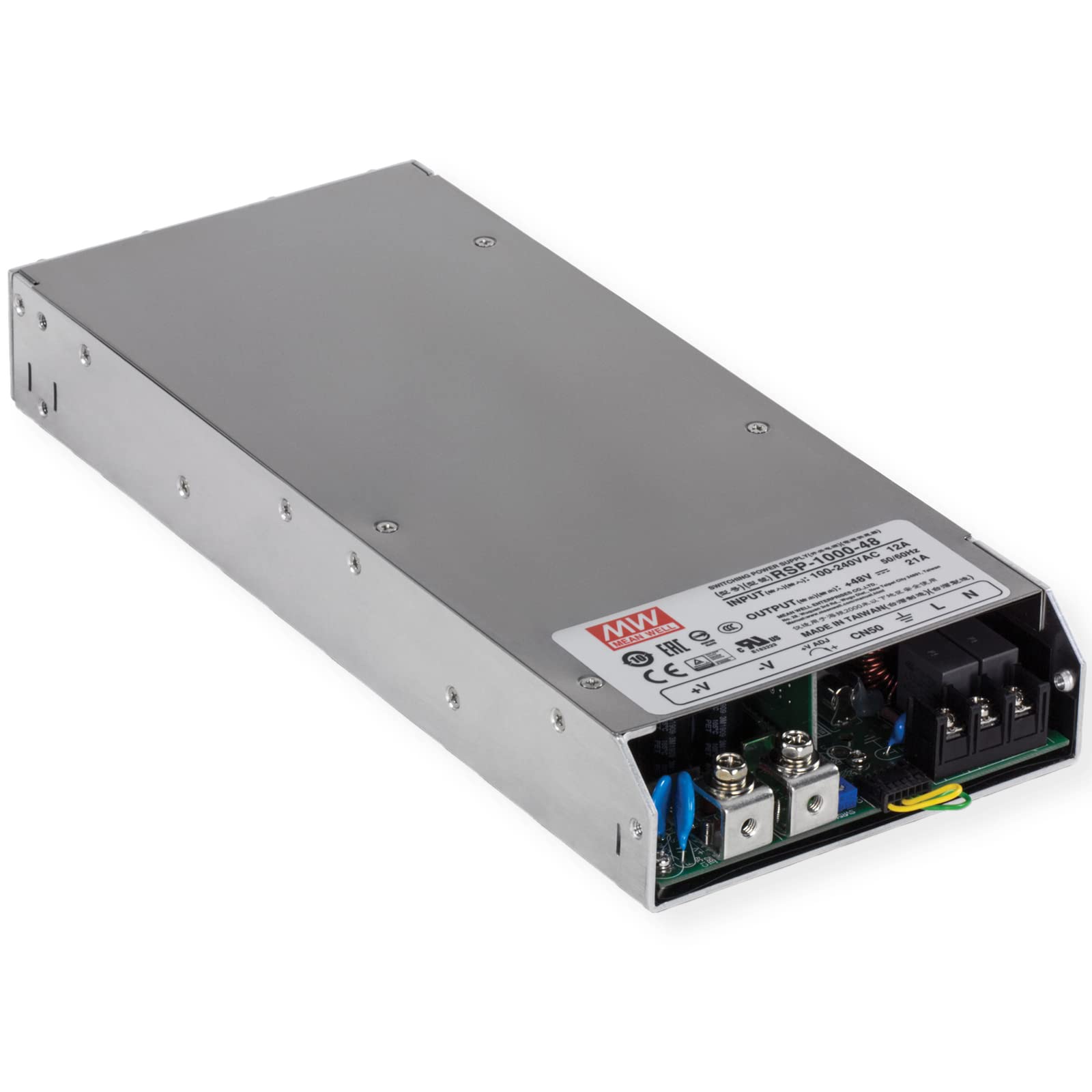

TRENDnet TI-RSP100048 48V 1000W AC to DC Industrial Power Supply

VENDOR: TRENDNET Mfg Part#: TI-RSP100048 UPC#: 710931161915
1 5
Photo is for illustration purposes only. Actual product may be different.
$563.53
$563.53
Sale Sold out
MSRP: $569.99
Shipping calculated at checkout.
  • Industrial-grade 48V DC output at 21A, up to 1000W total power
  • Supports global AC input range: 100–240V AC, 50/60Hz, 12A
  • Remote Sense feature compensates voltage drop up to 0.5V
  • Extended MTBF rating of 313,100 hours for long-term reliability
  • TAA compliant and manufactured in Taiwan
  • Compact design: 11.6 in (W) × 5 in (D) × 1.6 in (H)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers a powerful and stable 1000W DC output for critical industrial and networking equipment
  • High MTBF ensures continuity and minimizes downtime in mission-critical applications
  • Remote Sense capability enhances power accuracy by compensating voltage loss across cables

Product Overview

AC to DC Industrial Power Supply, model TI-RSP100048, supplies up to 1000W (48V DC, 21A) of power to industrial equipment, such as PoE switches and WiFi access points

Specifications

Product Overview
Product Type Industrial Power Supply
Form Factor DIN Rail Mountable
Output Power 1000W
Output Voltage 48V DC
Output Current 21A
Input Voltage Range 100 – 240V AC
Input Frequency 50–60Hz
Maximum Input Current 12A
Power Efficiency Up to 92%
Remote Sense Yes, compensates voltage drop up to 0.5V
Redundancy Supports Parallel Redundancy Operation (up to 4 units)
Mean Time Between Failures (MTBF) 313,100 hours
Warranty 1 Year Limited Warranty

Physical & Environmental
Width 11.6 in (295.2 mm)
Depth 5 in (127 mm)
Height 1.6 in (40.6 mm)
Weight 2.92 lbs (1.32 kg)
Operating Temperature -30° – 70° C (-22° – 158° F)
Storage Temperature -40° – 85° C (-40° – 185° F)
Operating Humidity 20% – 95% RH (non-condensing)
Cooling Method Built-in Fanless (Convection)
Enclosure Type Aluminum Housing

Cloud Management & Licensing
Management Interface

Interfaces
DC Output Terminals Screw-in Terminal Block
AC Input Connection 3-pin Screw Terminal (Line, Neutral, Ground)
Remote Sense Terminals Included
Parallel Function Terminals Yes
Output LED Indicator Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL 508, EN 60950-1, EN 62368-1, CE, EAC, FCC Part 15(B)
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
Overload Protection Yes, Constant Current Limiting
Overvoltage Protection Yes
Short Circuit Protection Yes
Overtemperature Protection Yes
