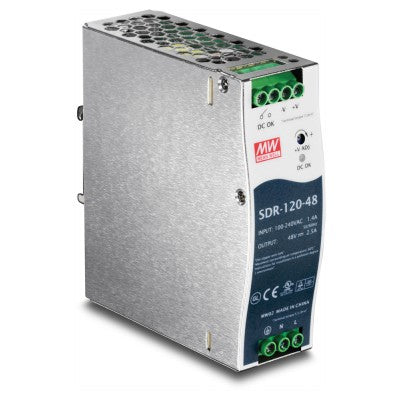

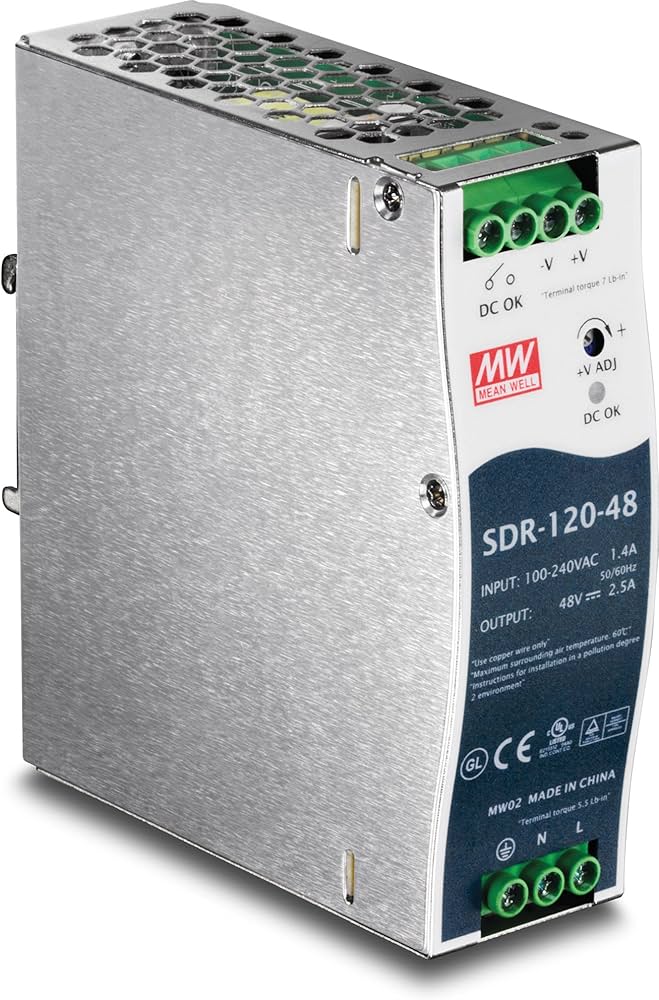

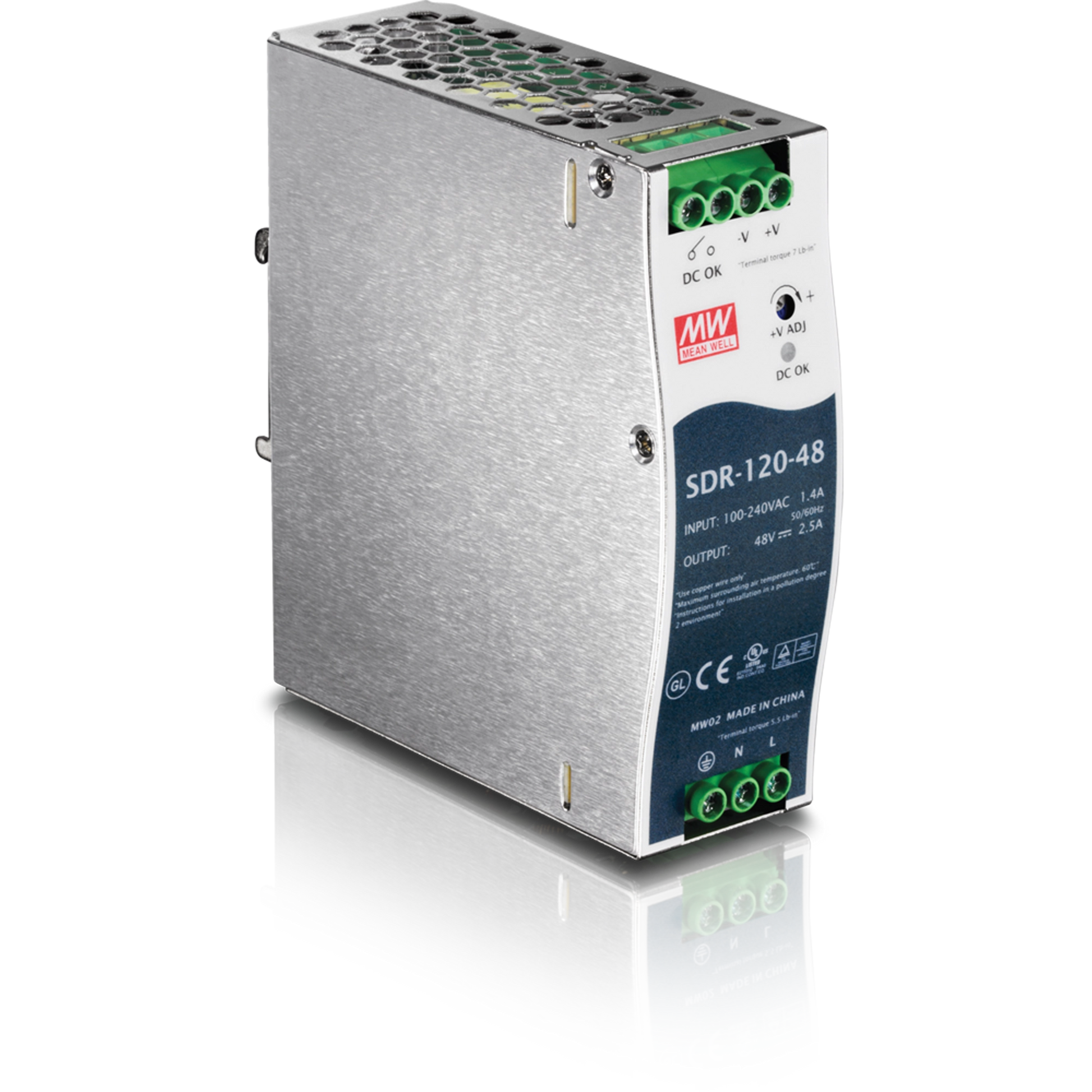

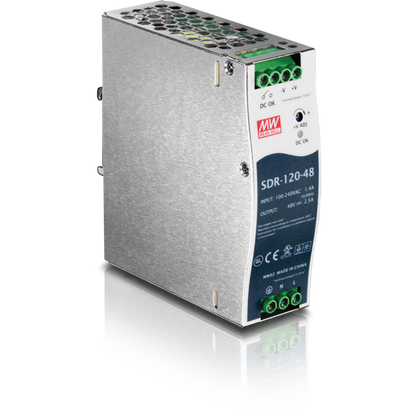

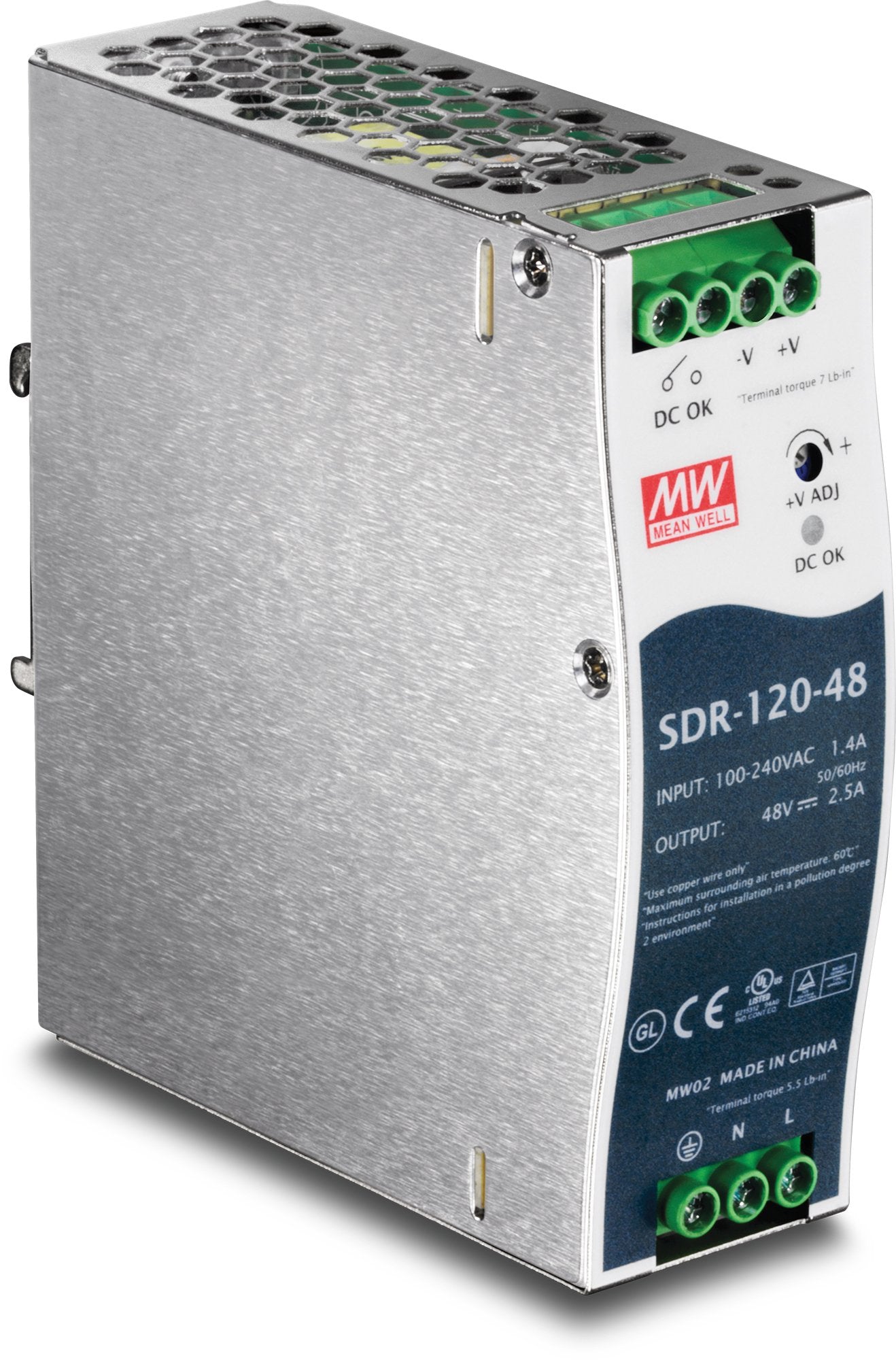

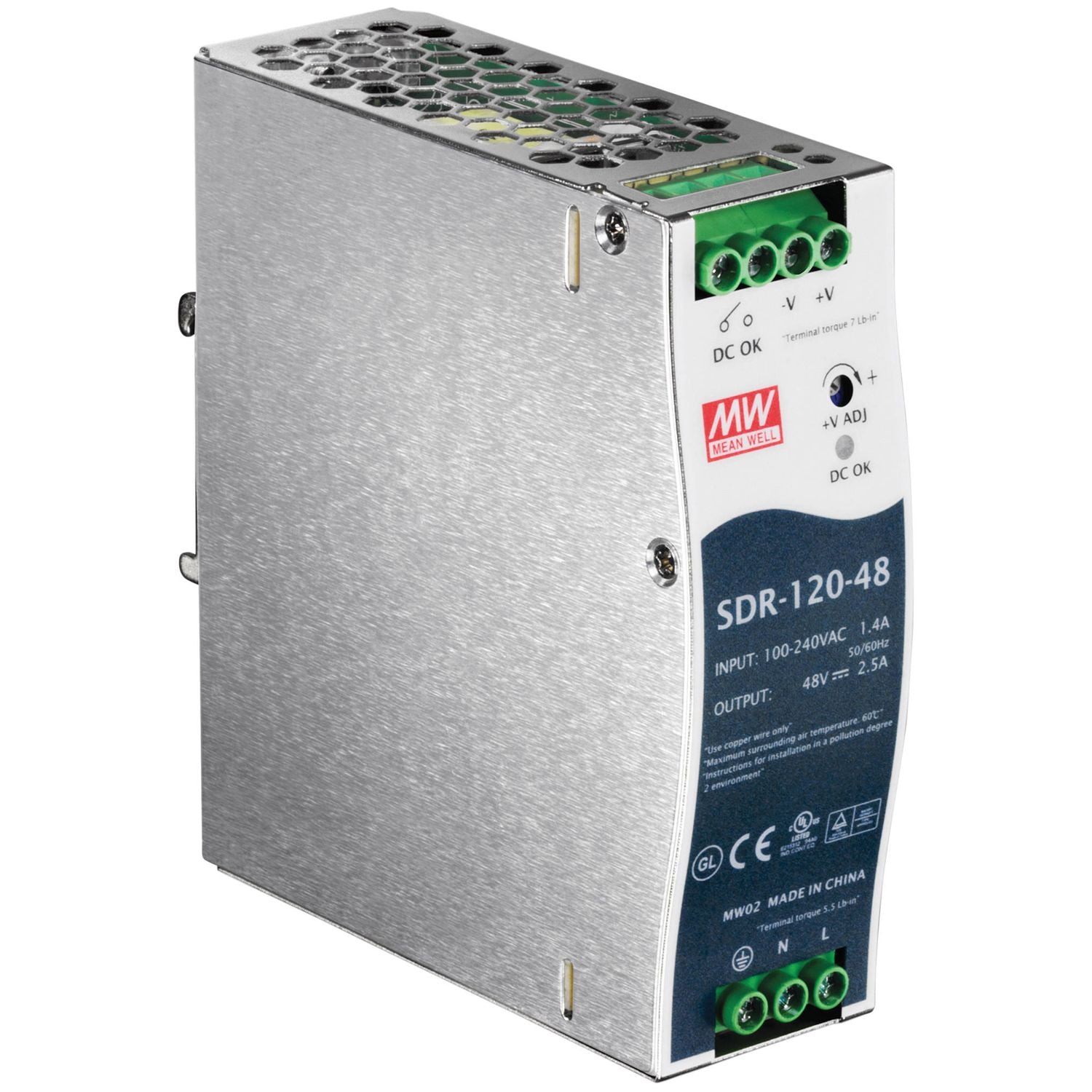

TRENDnet TI-S12048 48V 120W DIN-Rail Industrial Power Supply

VENDOR: TRENDNET Mfg Part#: TI-S12048 UPC#: 710931160383
1 5
Photo is for illustration purposes only. Actual product may be different.
$113.60
$113.60
Sale Sold out
MSRP: $119.99
Shipping calculated at checkout.
  • 48V DC output at 2.5A, delivering 120W of continuous power
  • 91% power conversion efficiency with active power factor correction (PF 0.93)
  • Wide input voltage range: 100–240V AC or 125–370V DC
  • DIN-rail mountable industrial housing with compact 40x125x114 mm form factor
  • Operates in extreme conditions: -25°C to 70°C, max 95% humidity (non-condensing)
  • TAA compliant and backed by a 1-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers stable and efficient 48V DC output ideal for industrial automation and networking hardware.
  • Supports extreme environmental conditions, making it suitable for harsh-location deployments.
  • DIN-rail mountable compact design simplifies installation in standard industrial enclosures.

Product Overview

DIN Rail 48V 120W Power Supply for TI-PG541 - Industrial power supply with integrated DIN-rail mount;Built-in active PFC (PF 0.93) - High efficiency (91%) design - 1 Year Warranty

Specifications

Product Overview
Product Type Industrial DIN-Rail Power Supply
Model TI-S12048
Form Factor DIN-Rail Mountable
Power Output 120 Watt
Output Voltage 48 V DC
Output Current 2.5 A
Input Voltage Range 100-240 V AC / 125-370 V DC
Input Frequency 50/60 Hz
Power Factor Correction Active PFC (PF > 0.93)
Efficiency 91%
Device Type Power Supply
Warranty 1 Year

Physical & Environmental
Width 40 mm
Height 114 mm
Depth 125 mm
Mount Type DIN Rail Mount
Minimum Operating Temperature -25 °C
Maximum Operating Temperature 70 °C
Operating Humidity Range Max. 95% non-condensing
Cooling Method Convection (fanless)
Case Material Metal
Ingress Protection Rating IP20
MTBF Over 300,000 hours at full load and 25°C

Cloud Management & Licensing
Cloud Management
License Requirement
Remote Monitoring

Interfaces
Input Connection Terminal Block
Output Connection Terminal Block

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, UL 508, EN61000-6-2, EN61000-6-4
RoHS Compliant Yes

Advanced Security Features
Short Circuit Protection Yes
Overload Protection Yes
Over Voltage Protection Yes
Over Temperature Protection Yes
