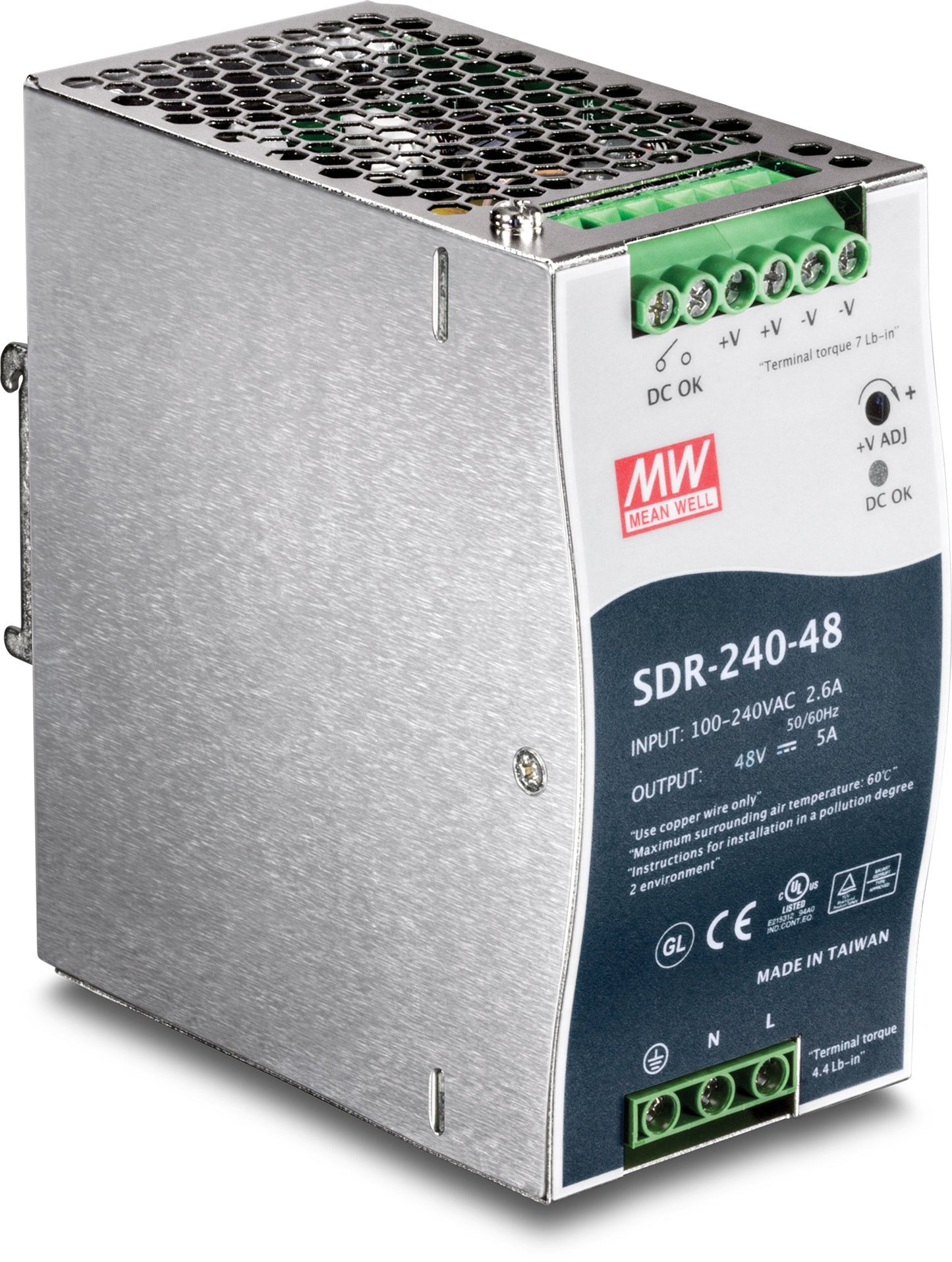

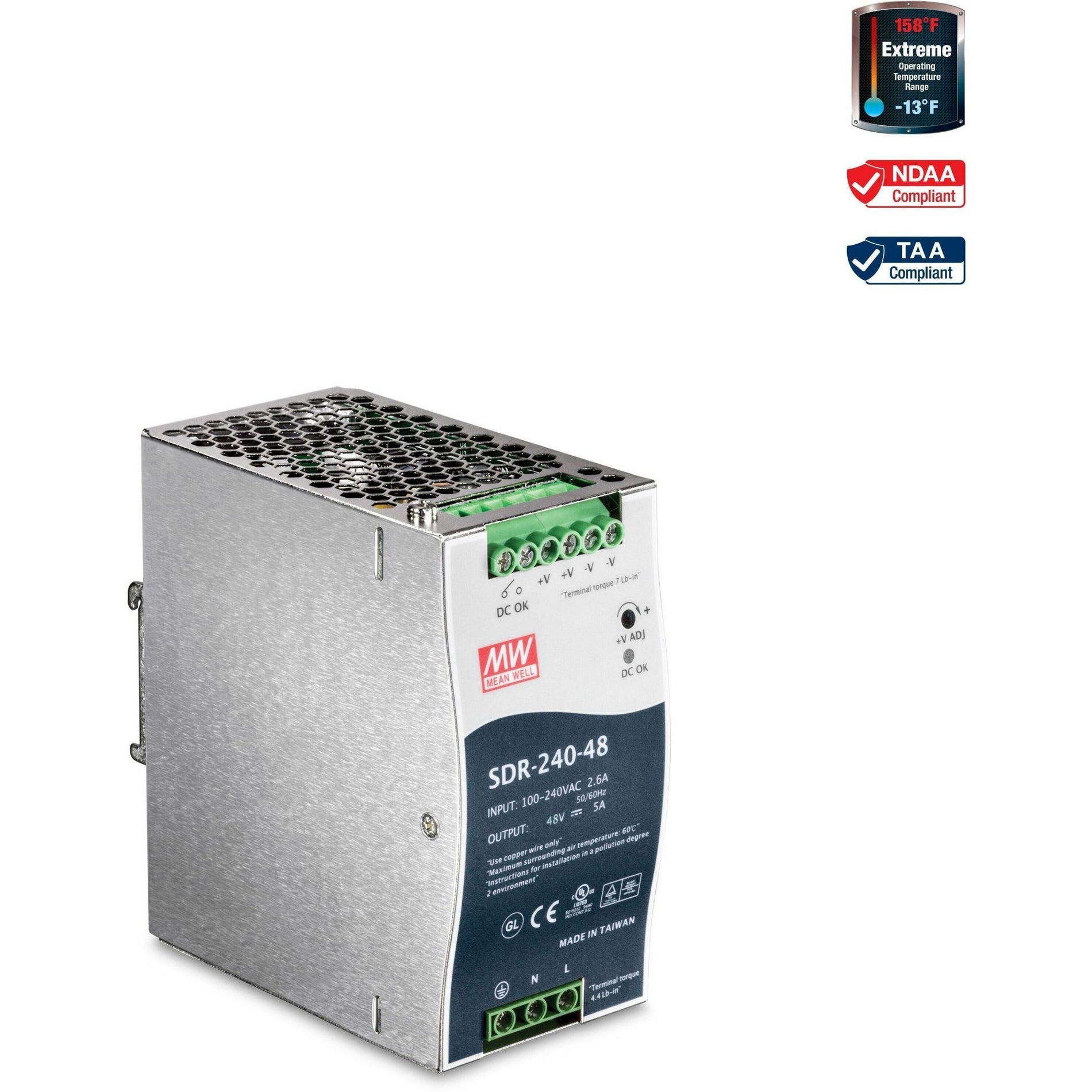

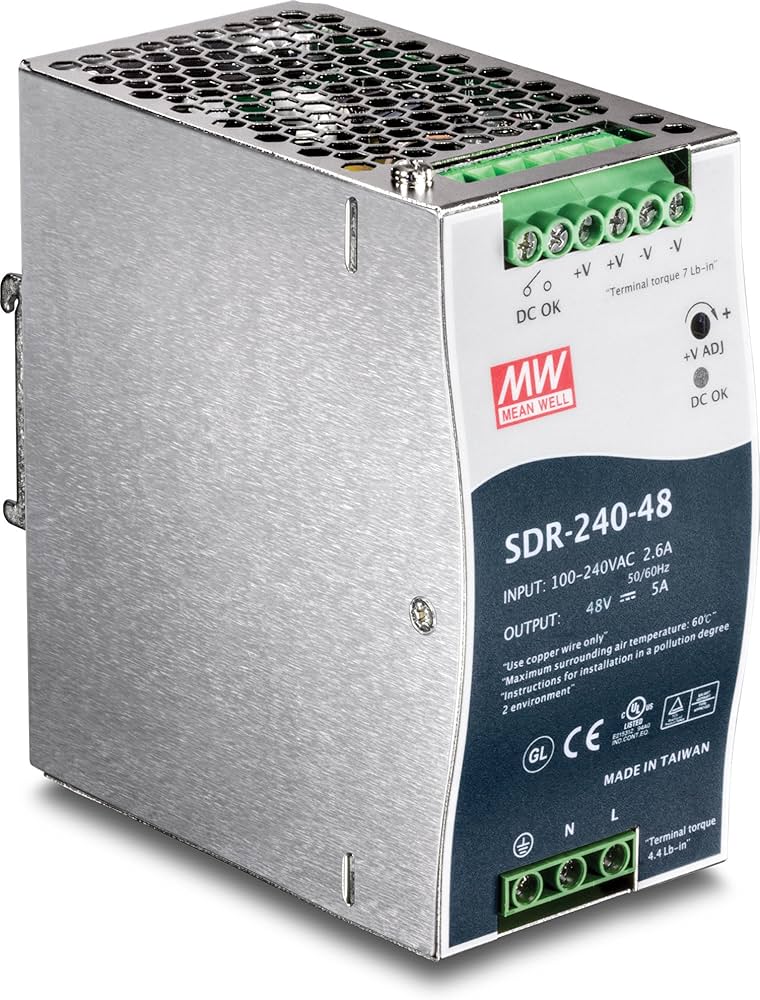

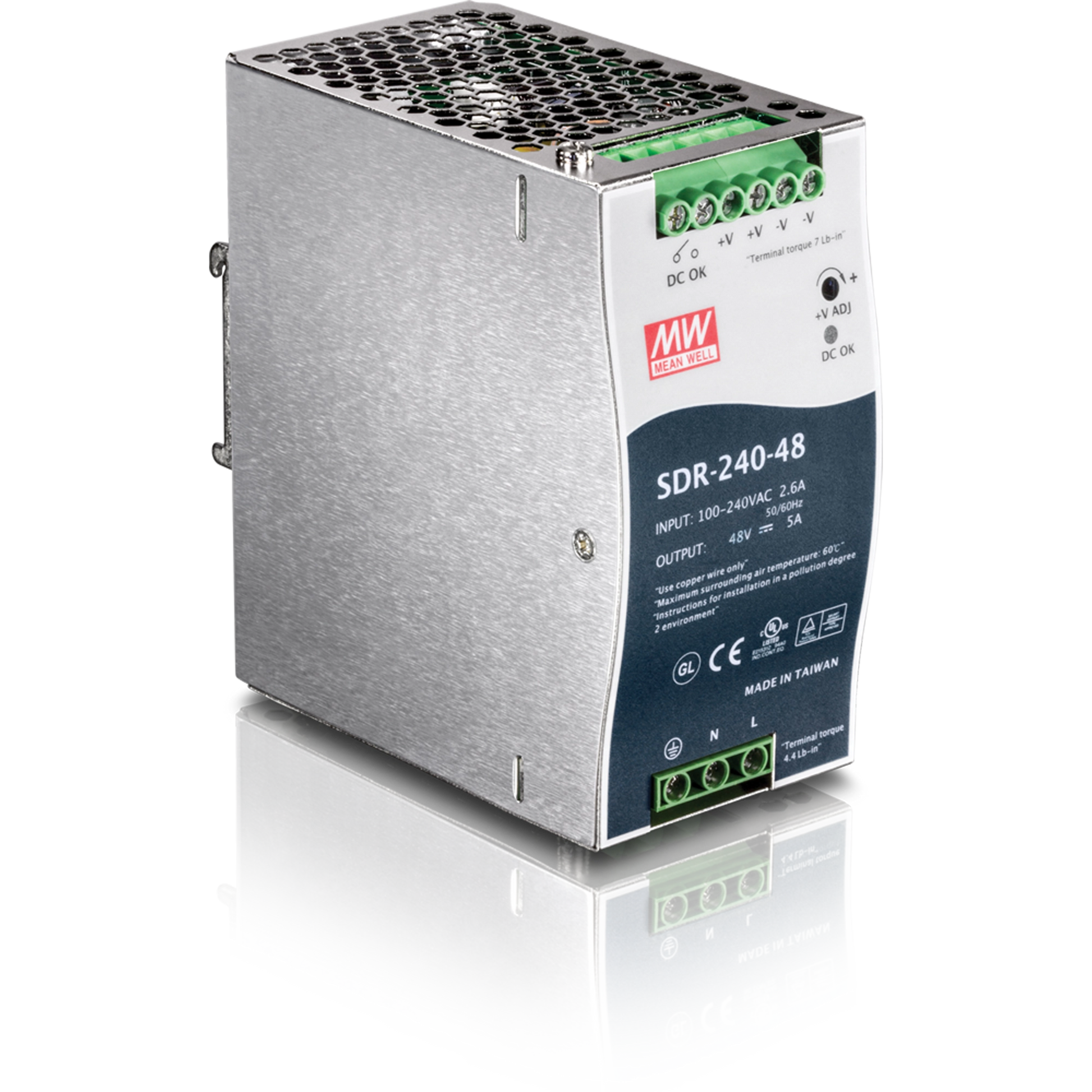

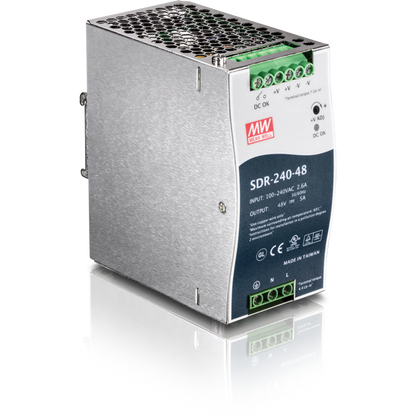

TRENDnet TI-S24048 48V 240W DIN Rail Industrial Power Supply

VENDOR: TRENDNET Mfg Part#: TI-S24048 UPC#: 710931160390
1 5
Photo is for illustration purposes only. Actual product may be different.
$202.88
$202.88
Sale Sold out
MSRP: $209.99
Shipping calculated at checkout.
  • 240W industrial power supply with regulated 48VDC output at 5A
  • Wide input voltage support: 100–240V AC or 125–370V DC
  • High efficiency rating of 94% for reduced power loss
  • Active Power Factor Correction with PF 0.93 for clean power delivery
  • DIN rail mountable design for secure industrial installation
  • Operating temperature range from -25°C to 70°C with 95% max humidity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers 240W at high efficiency (94%), reducing energy consumption in 24/7 operations
  • Industrial-grade construction with wide thermal and humidity tolerance for harsh environments
  • Easy integration with existing systems using standard DIN rail mounting and standardized voltage output

Product Overview

Power Supply - 100-240 V AC, 50/60 Hz, 1.8 A 125-370 V DC - Power / Provided (W): 240 - Industrial power supply with integrated DIN-rail mount;Built-in active PFC (PF 0.93) - 1 Year Warranty

Specifications

Product Overview
Manufacturer TRENDnet
Model TI-S24048
Type Industrial DIN Rail Power Supply
Form Factor DIN Rail Mountable
Power Output 240 Watts
Output Voltage 48 V DC
Output Current 5 A
Input Voltage Range (AC) 100–240 V AC
Input Voltage Range (DC) 125–370 V DC
Input Frequency 50/60 Hz
Input Current 1.8 A (at 100 V AC)
Power Factor Correction Active (PF ≥ 0.93)
Efficiency 94%
Warranty 1 Year

Physical & Environmental
Width 63 mm
Depth 125 mm
Height 114 mm
Mounting Type DIN Rail (35 mm standard rail)
Min Operating Temperature -25 °C
Max Operating Temperature 70 °C
Humidity (Operating) Max. 95% (non-condensing)
Storage Temperature Range -40 °C to 85 °C
Cooling Type Convection
Enclosure Material Metal
MTBF Over 300,000 hours (at full load and 25 °C)
Protection Features Overload, Overvoltage, Over-temperature, Short Circuit Protection

Cloud Management & Licensing
Cloud Management
Licensing Requirements

Interfaces
Input Connection Type Terminal Block (Screw type)
Output Connection Type Terminal Block (Screw type)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL 508, UL 60950-1, CE, IEC 60950-1, CB, FCC Part 15 Class B
RoHS Compliance Yes
