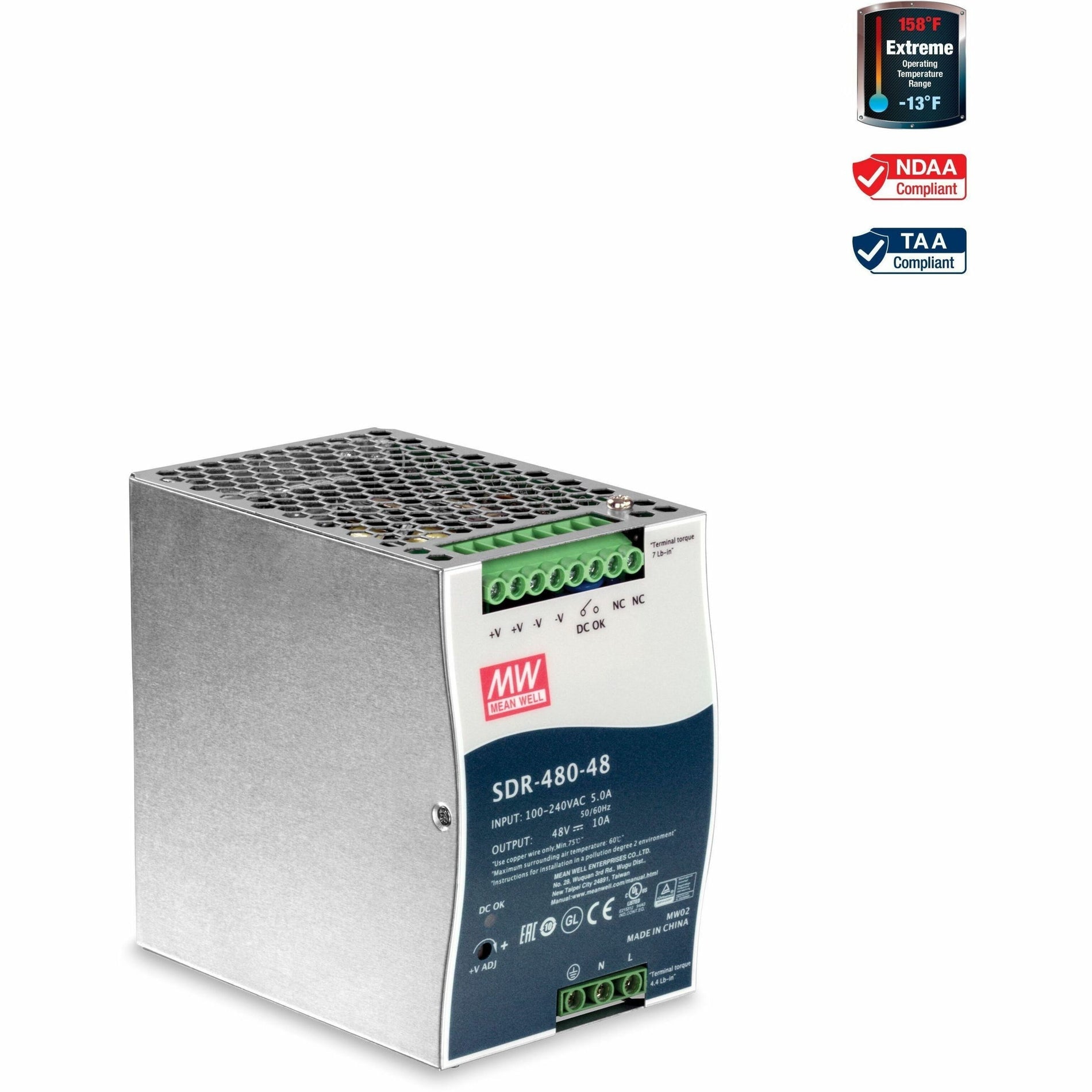

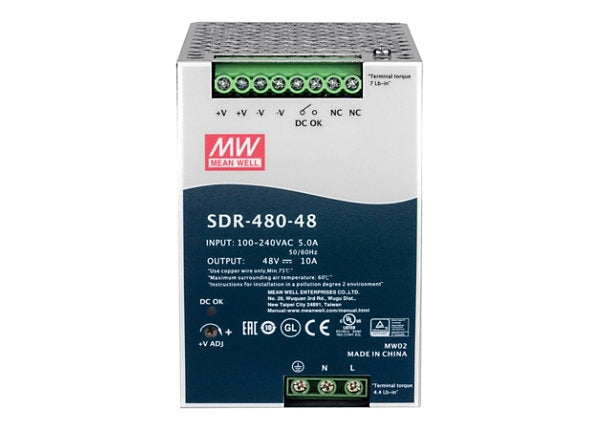

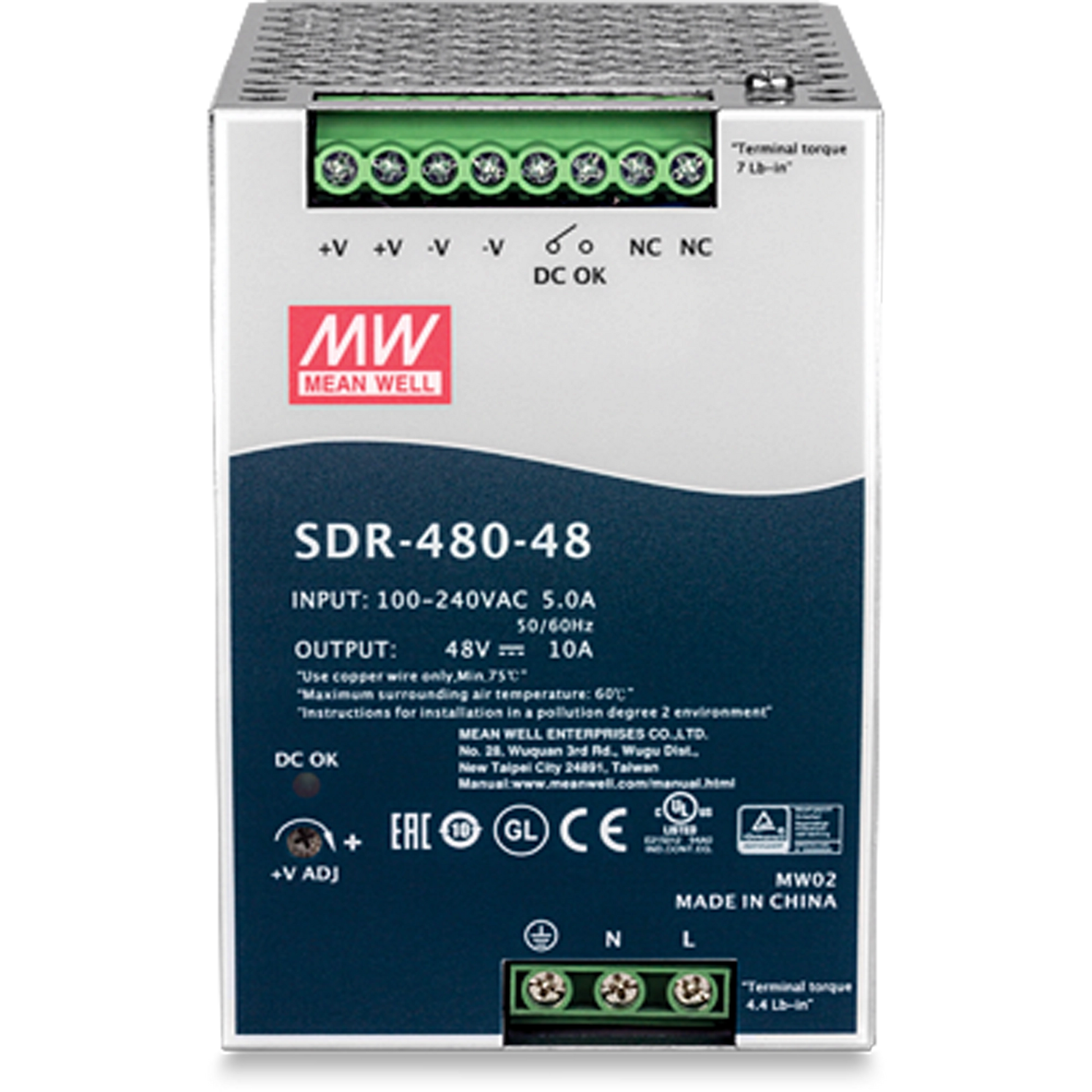

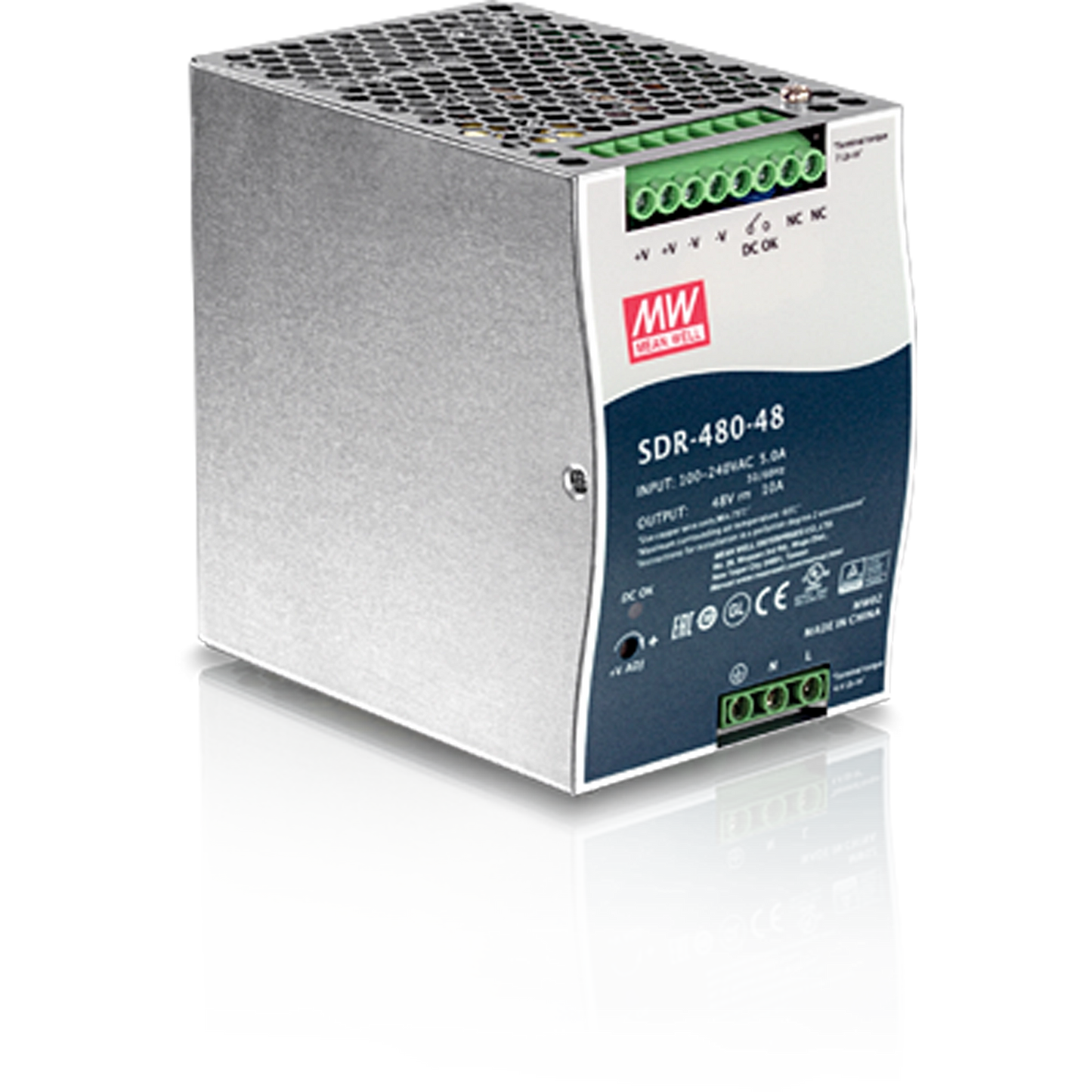

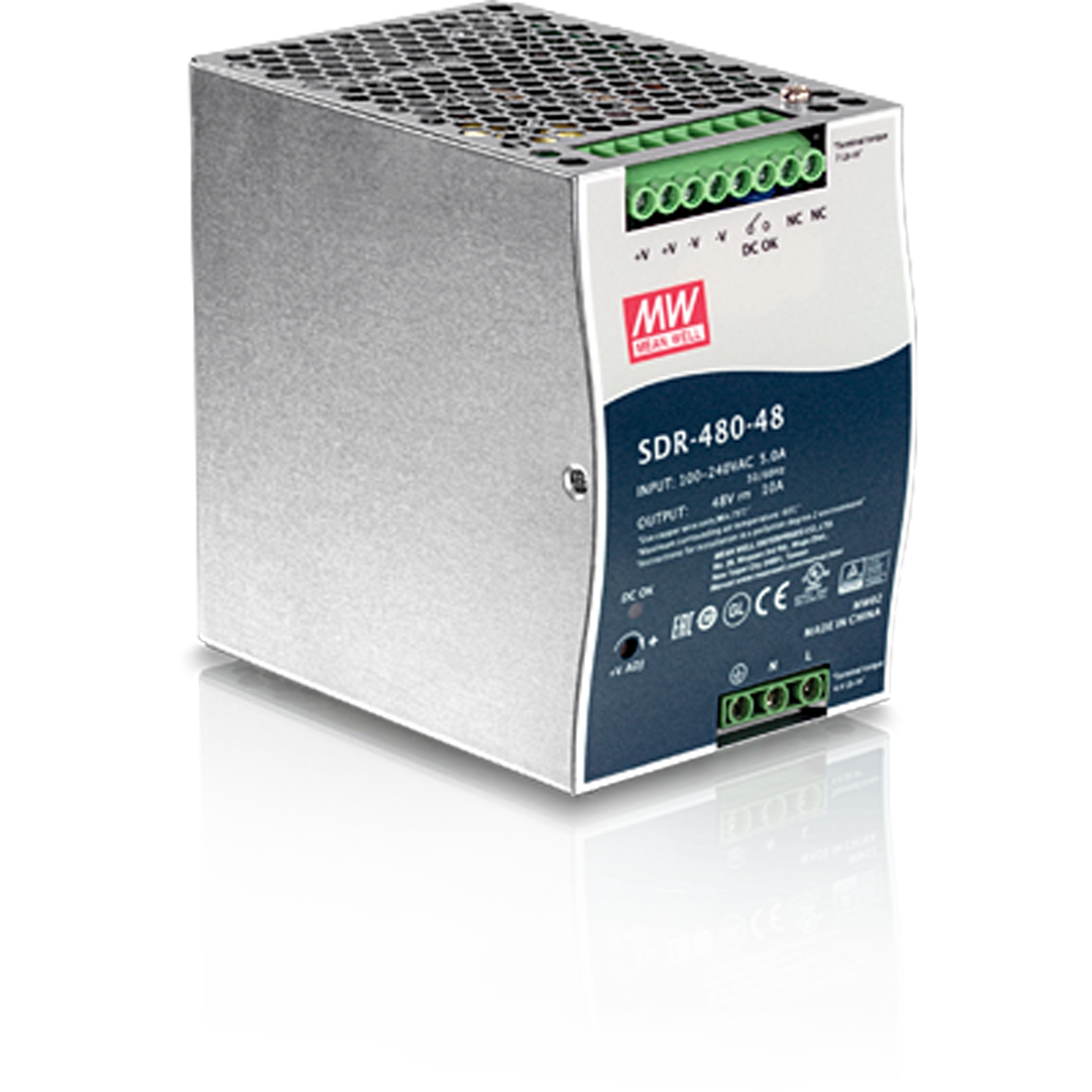

TRENDnet TI-S48048 48V 480W Industrial Power Supply

VENDOR: TRENDNET Mfg Part#: TI-S48048 UPC#: 710931161441
1 5
Photo is for illustration purposes only. Actual product may be different.
$315.58
$315.58
Sale Sold out
MSRP: $319.99
Shipping calculated at checkout.
  • 48V DC output at 10A with 480W total power
  • 90–264V AC or 127–370V DC input range for flexible deployment
  • 94% efficiency for optimized power utilization
  • MTBF of 1,129,000 hours for high operational reliability
  • -25°C to 70°C operating temperature range

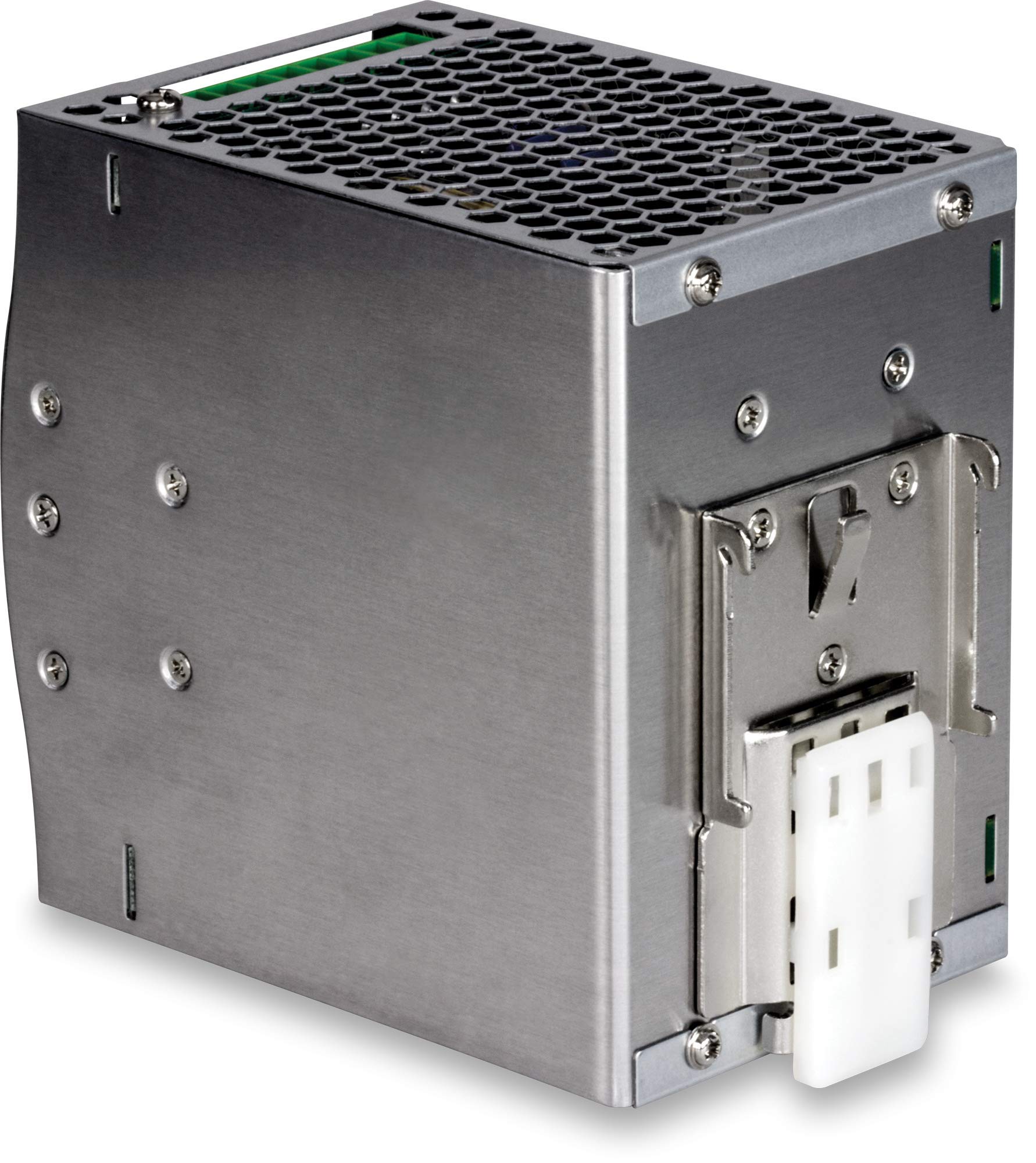

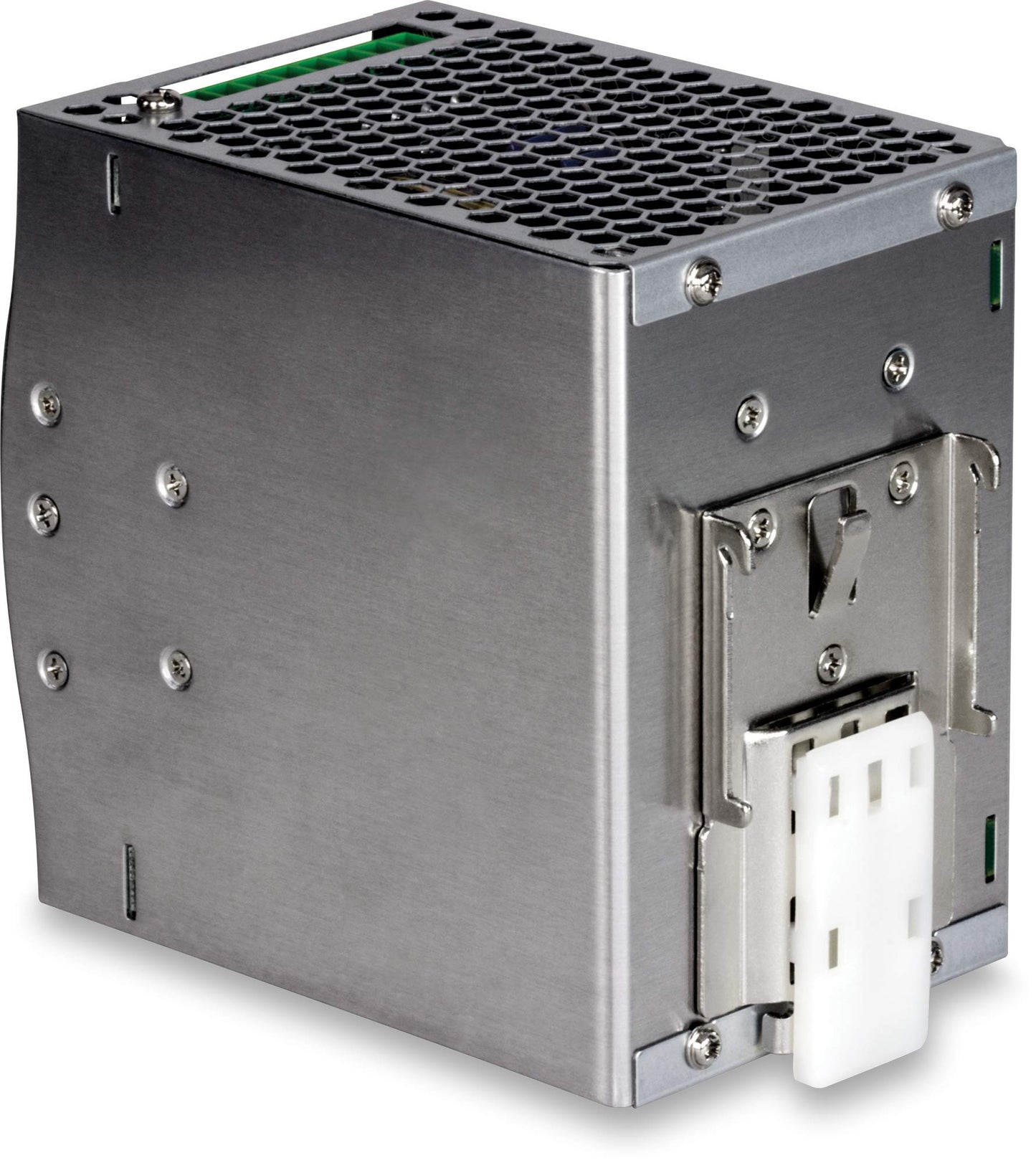

  • DIN-rail mount design suitable for industrial setups

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for industrial reliability with rugged design and wide temperature/humidity tolerance
  • Delivers high operational efficiency (94%) to reduce heat and lower total energy cost
  • Compliant with TAA requirements, making it ideal for government and enterprise deployments

Product Overview

Power Supply - 90 - 264V AC, 47 - 63Hz, 1.8A 127 - 370V DC - Power / Provided (W): 480 - High efficiency 94% and low power dissipation - Industrial power supply with integrated DIN-rail mount - 1 Year Warranty

Specifications

Product Overview
Product Type Industrial Power Supply
Form Factor DIN-rail mount
Power Output 480 Watts
Output Voltage 48V DC
Output Current 10A
Input Voltage Range (AC) 90 - 264V AC
Input Frequency 47 - 63 Hz
Input Current (AC) 1.8A
Input Voltage Range (DC) 127 - 370V DC
Efficiency 94%
MTBF (Mean Time Between Failures) 1,129,000 hours
Warranty 1 Year
Model Number TI-S48048

Physical & Environmental
Width 85.5 mm
Depth 125 mm
Height 128.5 mm
Weight 1.5 kg
Operating Temperature Range -25°C to 70°C
Storage Temperature Range -40°C to 85°C
Operating Humidity Up to 95% (non-condensing)
Cooling Type Convection cooled
Housing Material Metal

Cloud Management & Licensing
Cloud Management Not applicable
Licensing Requirements None

Interfaces
Terminal Block Connector Yes
Redundancy Function No
Remote On/Off Control No
Parallel Operation Yes, up to 3 units

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications UL 508, CE, EN 62368-1, EN 61000-6-2, EN 61000-6-4
RoHS Compliance Yes
EMC Standards EN 55032 Class B, EN 61000-3-2, EN 61000-3-3
Safety Standards UL, cUL, TUV
Vibration Resistance IEC 60068-2-6, 10-500Hz, 2G 10min./1cycle, period for 60 min. each along X, Y, Z axes

Advanced Security Features
Surge Protection IEC 61000-4-5 Level 3
Overload Protection Yes (constant current limiting, auto recovery)
Overvoltage Protection Yes (shut down, auto recovery)
Overtemperature Protection Yes (shut down, auto recovery)
