| Product Type | 2-Port DisplayPort KVM Switch |
| Form Factor | Desktop |
| Model | TK-220DPI |
| Connectivity Technology | Wired |
| Power Requirements | USB powered |
| Weight | 0.77 lbs (350 g) |

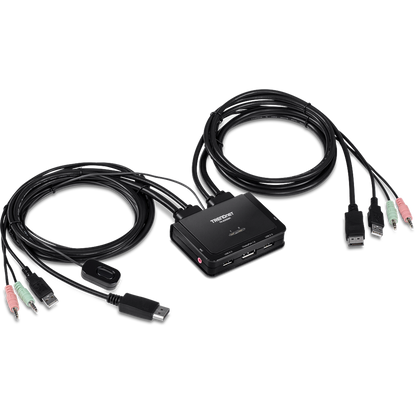

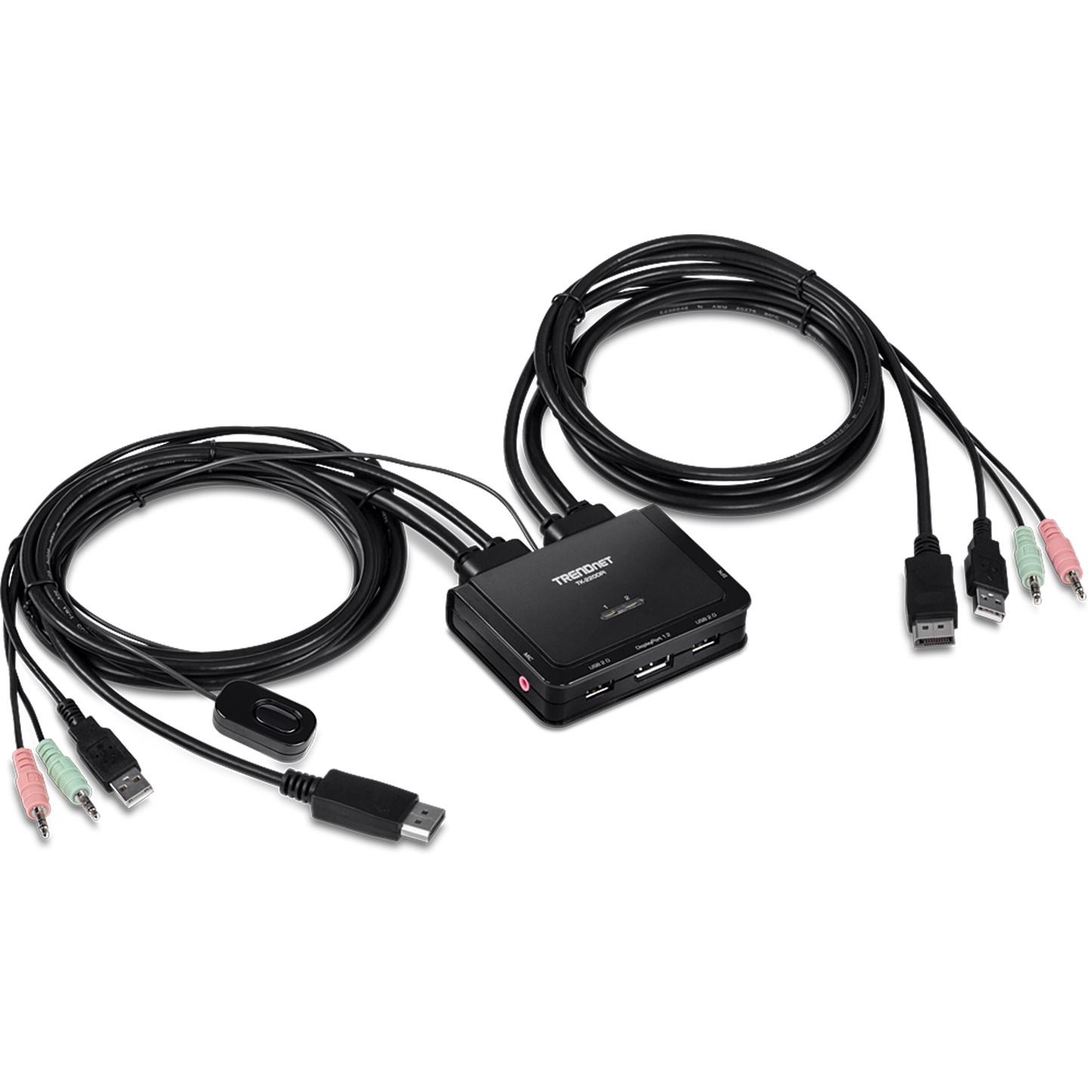

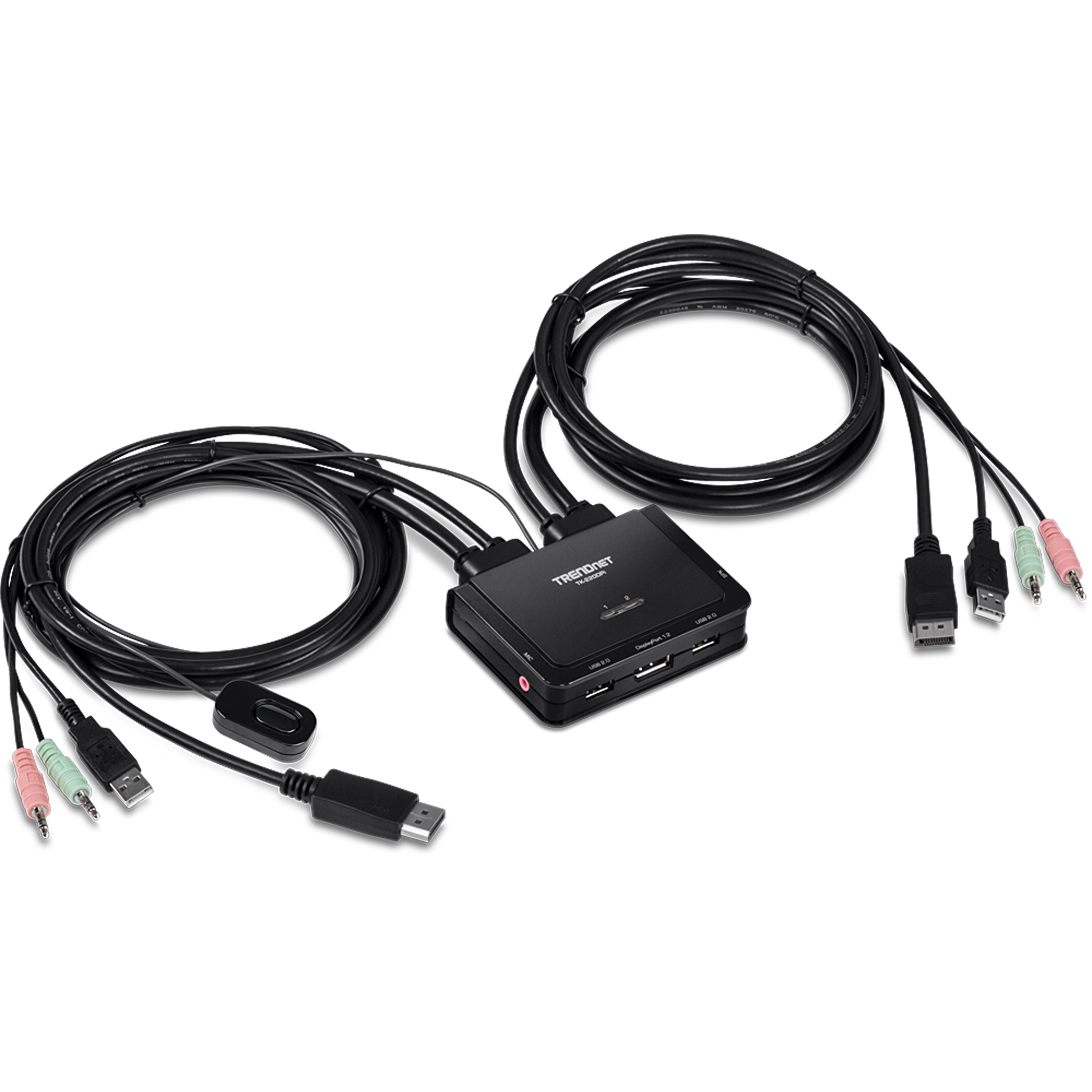

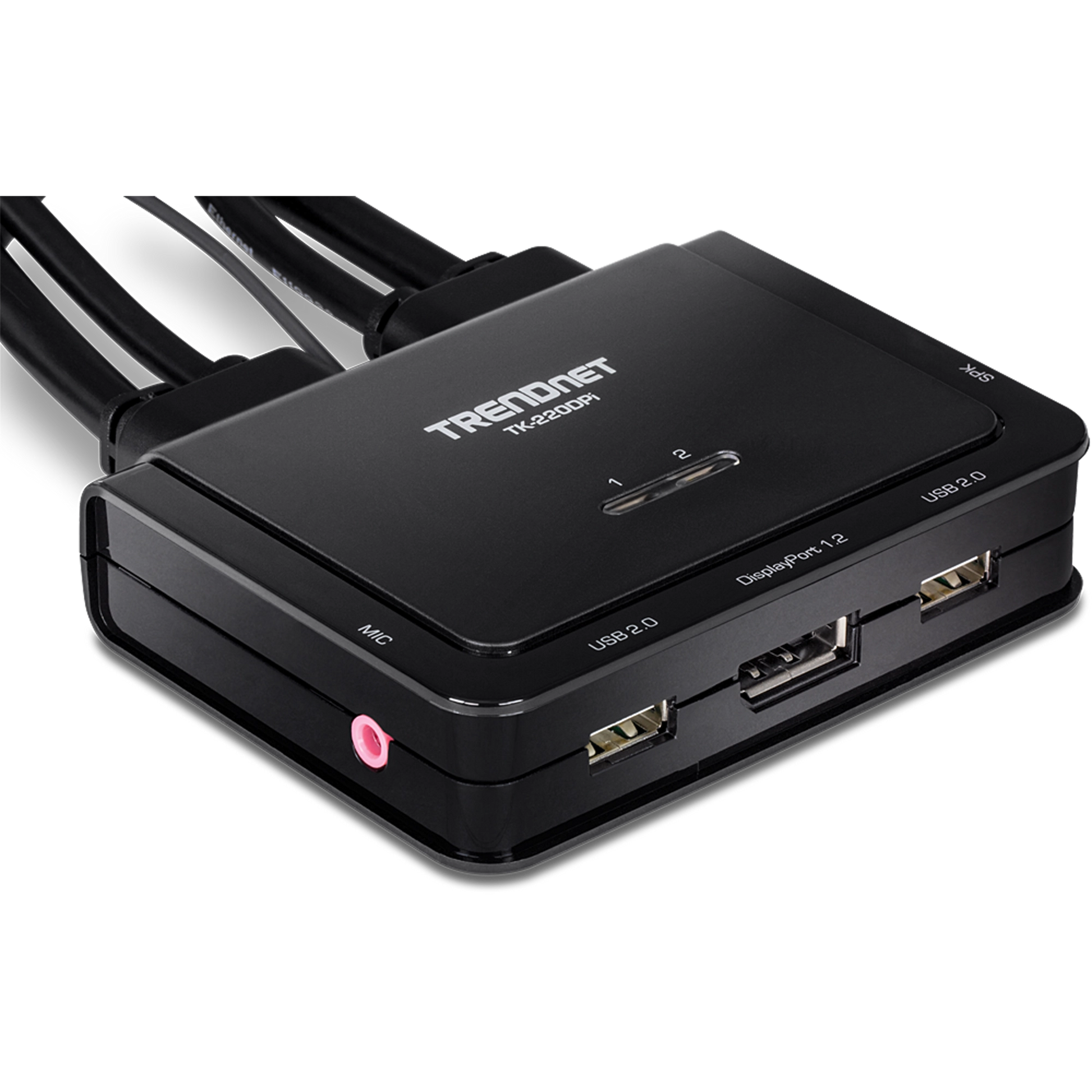

TRENDnet TK-220DPI 2-Port 4K DisplayPort KVM Switch
Photo is for illustration purposes only. Actual product may be different.
Regular price
$89.72
Regular price
Sale price
$89.72
Unit price
per
MSRP: $89.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Control two computers via a single set of console controls
- Supports 4K UHD resolution up to 3840 x 2160
- DisplayPort 1.2, USB 2.0 Type A, and 3.5mm audio for full peripheral support
- Wired connectivity for stable and secure operation

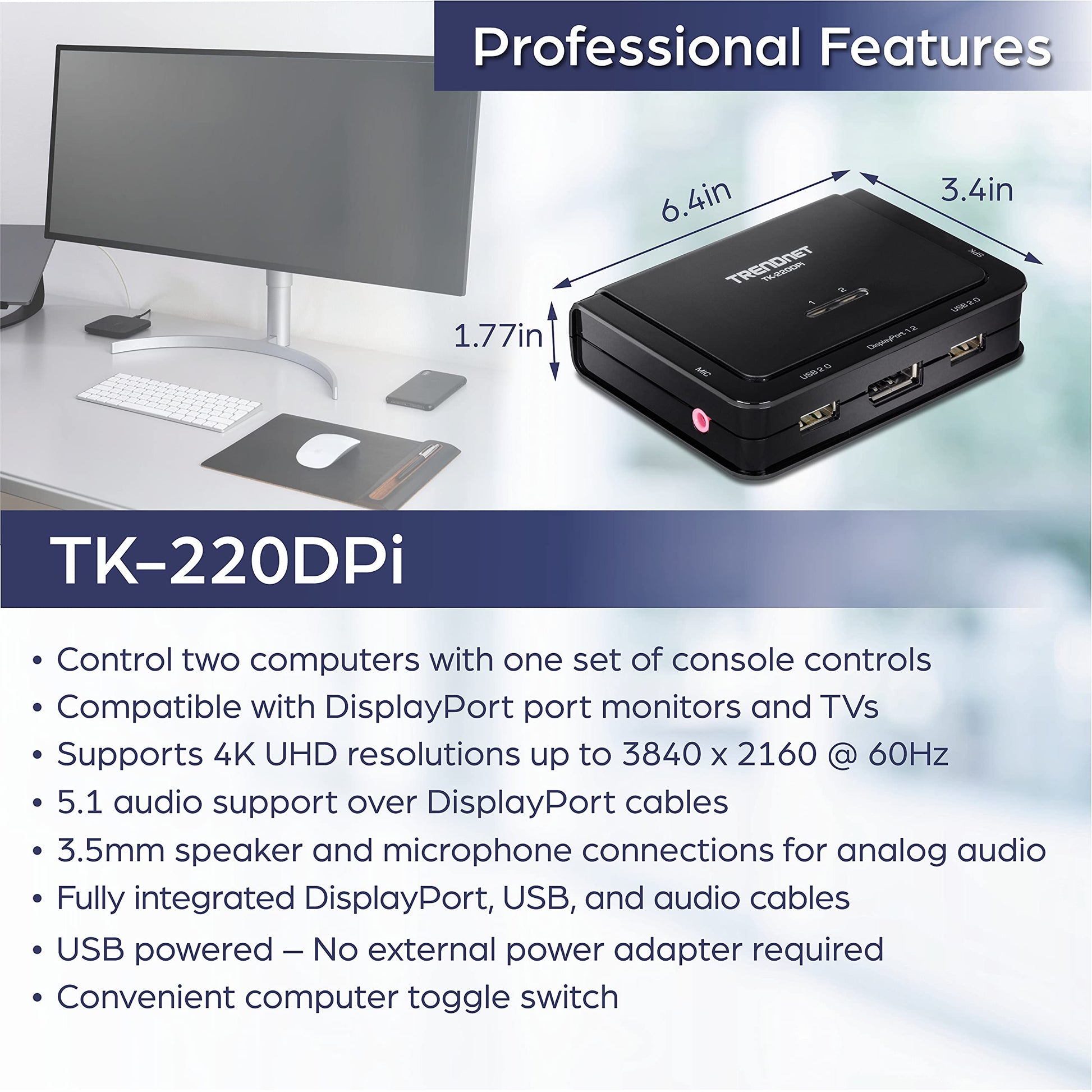

- Compact dimensions: 6.4 x 3.4 x 1.77 inches
- TAA compliant and includes 2-year warranty
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Facilitates productivity by eliminating the need for multiple monitors and input devices across two computers
- Supports ultra-high-definition resolutions, perfect for media editing, development, or secure system access
- Government-ready with TAA compliance and backed by a 2-year warranty for added reliability
Product Overview
The TRENDnet TK-220DPI is a versatile 2-Port KVM switch allowing two computers to share a single DisplayPort monitor, USB keyboard, and mouse. With support for 4K UHD resolution up to 3840 x 2160, it suits high-precision applications in IT, design, or engineering. Its DisplayPort 1.2, USB 2.0 Type-A, and 3.5mm audio interface deliver comprehensive control and audio support. Compact in size and TAA compliant, this wired solution is ideal for institutional and professional-grade setups. Backed by a 2-year warranty, the TK-220DPI offers long-term reliability and workspace efficiency.
Specifications
Product Overview
Physical & Environmental
| Width | 6.4 inches (162 mm) |
| Depth | 3.4 inches (86 mm) |
| Height | 1.77 inches (45 mm) |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Operating Humidity | 0% to 80% RH (non-condensing) |
| Housing Material | Metal |
Cloud Management & Licensing
| Remote Management | No |
| Cloud Support | No |
| License Required | No |
Package Contents

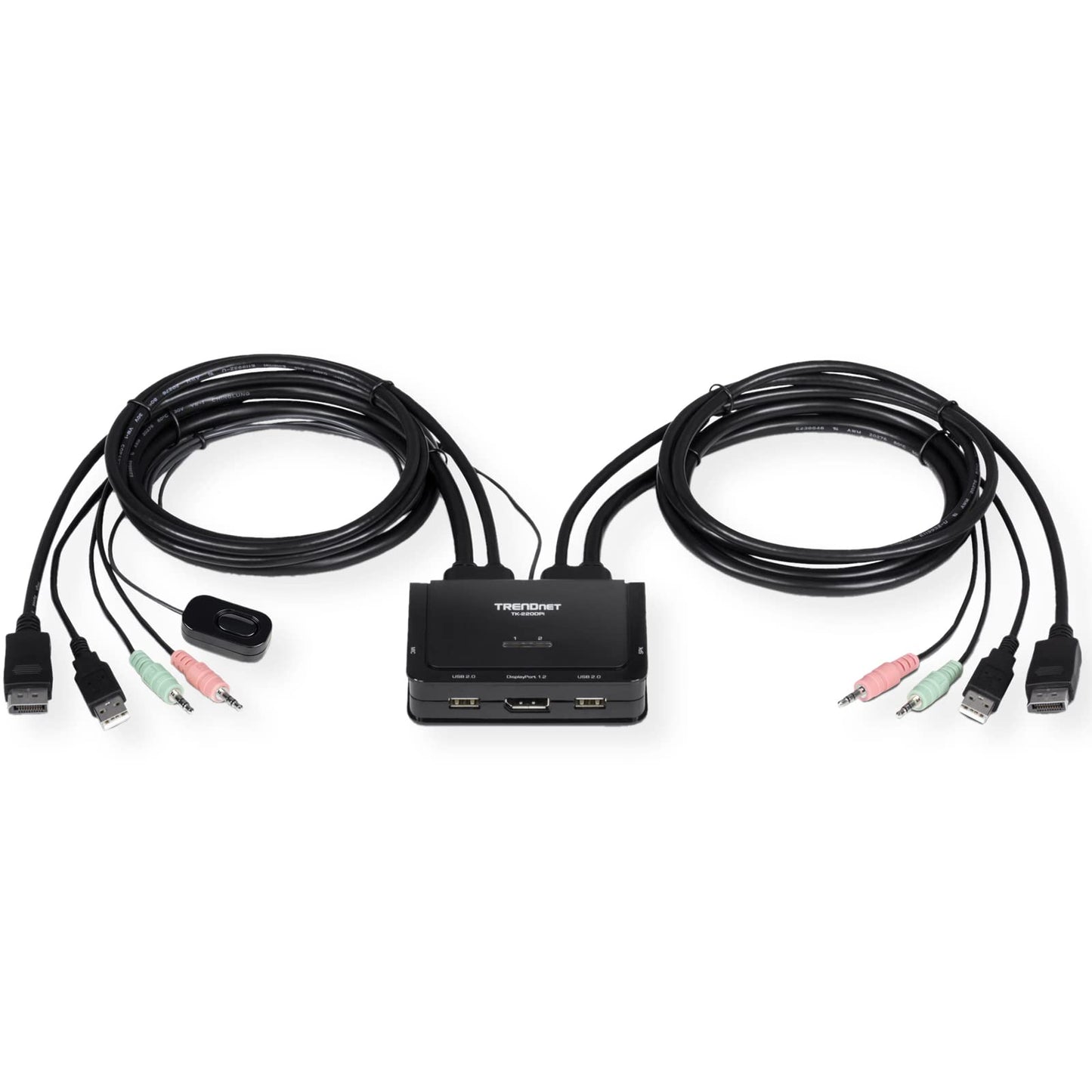

| Included Accessories | 2 x USB/DisplayPort/Audio combo cables, Quick Installation Guide |
| What's Included | TK-220DPI device, combo cables, documentation |
| Warranty | 2 Years |
Interfaces
| Number of DisplayPort Ports | 3 (1 x output, 2 x input) |
| DisplayPort Version | DisplayPort 1.2 |
| Maximum Video Resolution | 3840 x 2160 @ 60Hz |
| Number of USB Ports | 3 (2 x USB-B for PCs, 1 x USB-A for console) |
| USB Standard | USB 2.0 |
| Audio Connections | 3.5mm microphone in & speaker out |

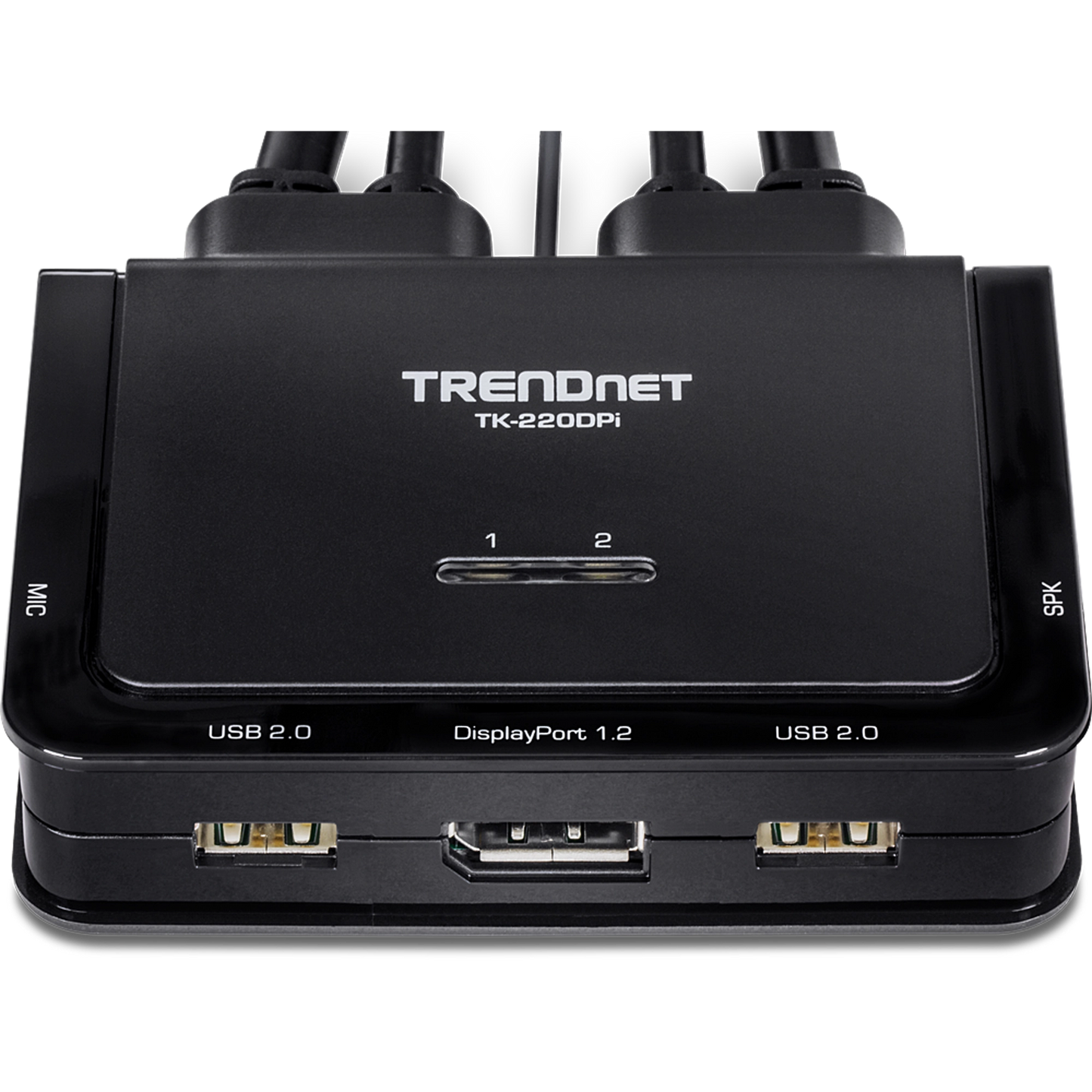

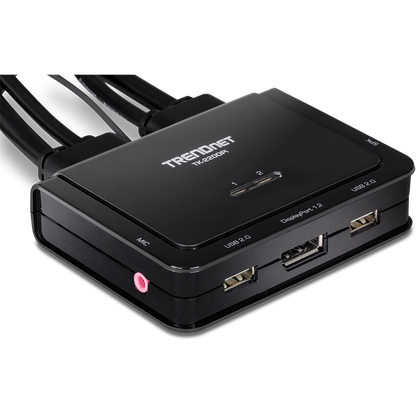

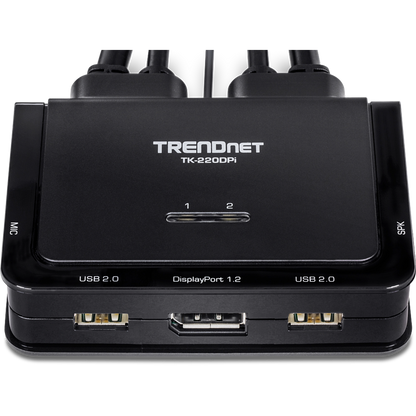

| Console Ports | DisplayPort, USB-A, 3.5mm audio |
| PC Connection Ports | DisplayPort, USB-B, 3.5mm audio |
| Hotkey Support | Yes |
| Push Button Switching | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | FCC, CE |
| RoHS Compliant | Yes |
Advanced Security Features
| Keyboard/Mouse Emulation | Yes |
| EDID Emulation | Yes |
