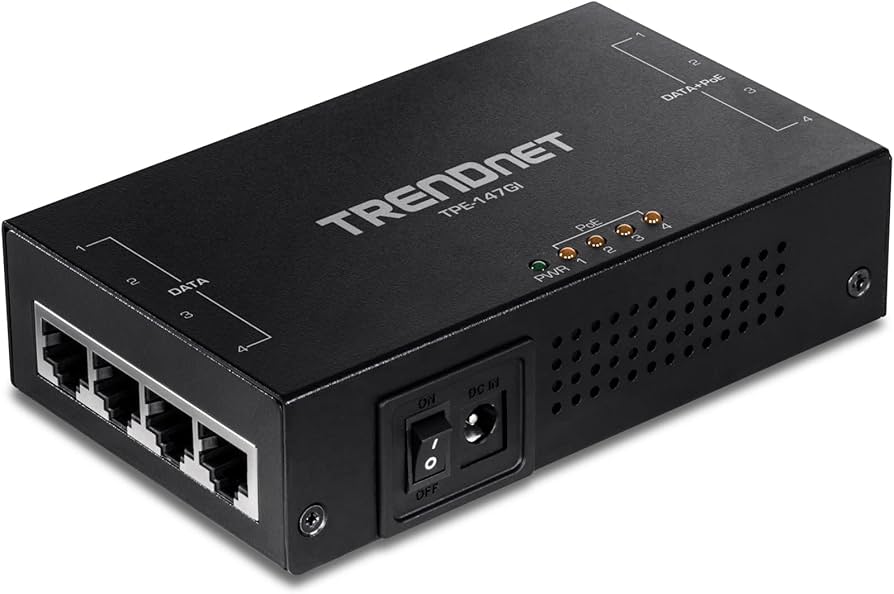

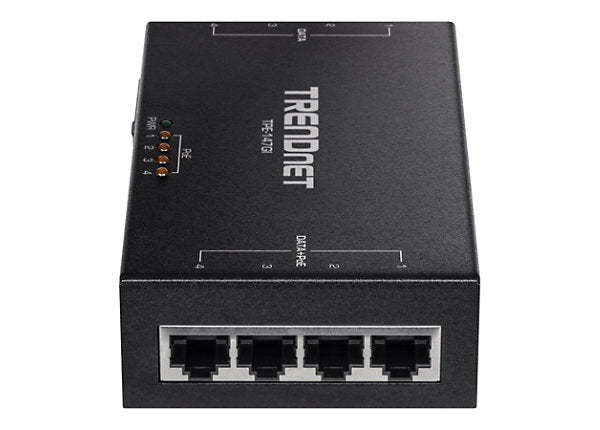

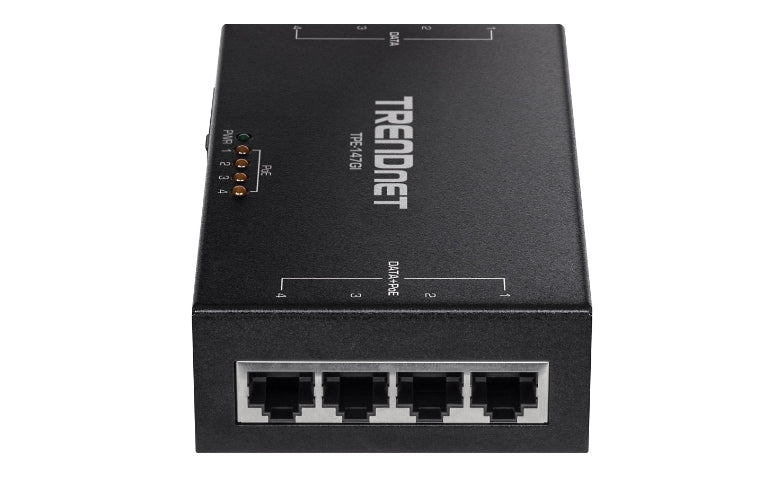

TRENDnet TPE-147GI 65W 4-Port Gigabit PoE+ Injector

VENDOR: TRENDNET Mfg Part#: TPE-147GI UPC#: 710931161724
1 5
Photo is for illustration purposes only. Actual product may be different.
$72.89
$72.89
Sale Sold out
MSRP: $74.99
Shipping calculated at checkout.
  • 4-port Gigabit data and PoE+ outputs compliant with IEEE 802.3 standards
  • Supports data transmission speeds of 1 Gbps
  • Fanless design minimizes noise and reduces power consumption
  • Connects PoE devices up to 100 meters (328 feet) away
  • Compact dimensions: 5 x 2.9 x 1.26 inches
  • Backed by a 3-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for noiseless deployments in offices, classrooms, and meeting rooms with its fanless, low-energy design
  • Scalable connectivity for up to four PoE+ devices using existing Ethernet cabling—saves on installation costs
  • Compliance with IEEE and TAA standards ensures deployment compatibility and suitability for public sector projects

Product Overview

65W 4-Port Gigabit PoE+ Injector- Connects PoE devices up to 100m (328 ft.) away; Fanless design eliminates operating noise and lowers energy consumption

Specifications

Product Overview
Manufacturer TRENDnet
Product Name TPE-147GI 65W 4-Port Gigabit PoE+ Injector
Device Type Injector
Form Factor Desktop
Number of PoE Ports 4
PoE Budget 65 Watts
Enclosure Type Metal
Fanless Yes
Power Consumption (Maximum) 65 Watts
Power Supply Type External power adapter
MTBF 292,000 hours

Physical & Environmental
Width 5 in (127 mm)
Depth 2.9 in (74 mm)
Height 1.26 in (32 mm)
Weight 0.66 lbs (0.3 kg)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity Max. 90% (non-condensing)
Storage Humidity Max. 95% (non-condensing)

Cloud Management & Licensing
Managed No
Cloud Managed No
Licensing Required No

Additional Features
Included Accessories Quick Installation Guide, Power Adapter
Warranty 3-Year Limited Warranty
UPC 710931161724

Interfaces
Network Ports 4 x Gigabit Ethernet Data In, 4 x Gigabit Ethernet Data + PoE+ Out
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
Networking Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
Transmission Distance Up to 100 meters (328 feet)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Surge Protection 15kV ESD protection
Overcurrent Protection Per Port Overcurrent Protection
Overload Protection Yes
Short Circuit Protection Yes
