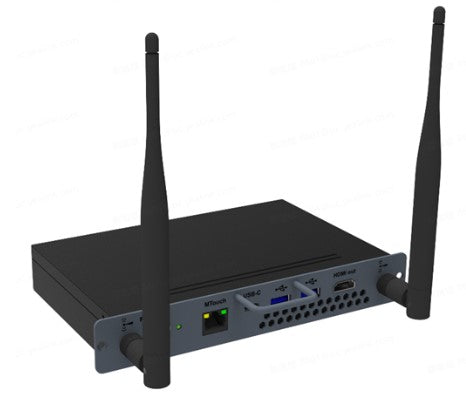

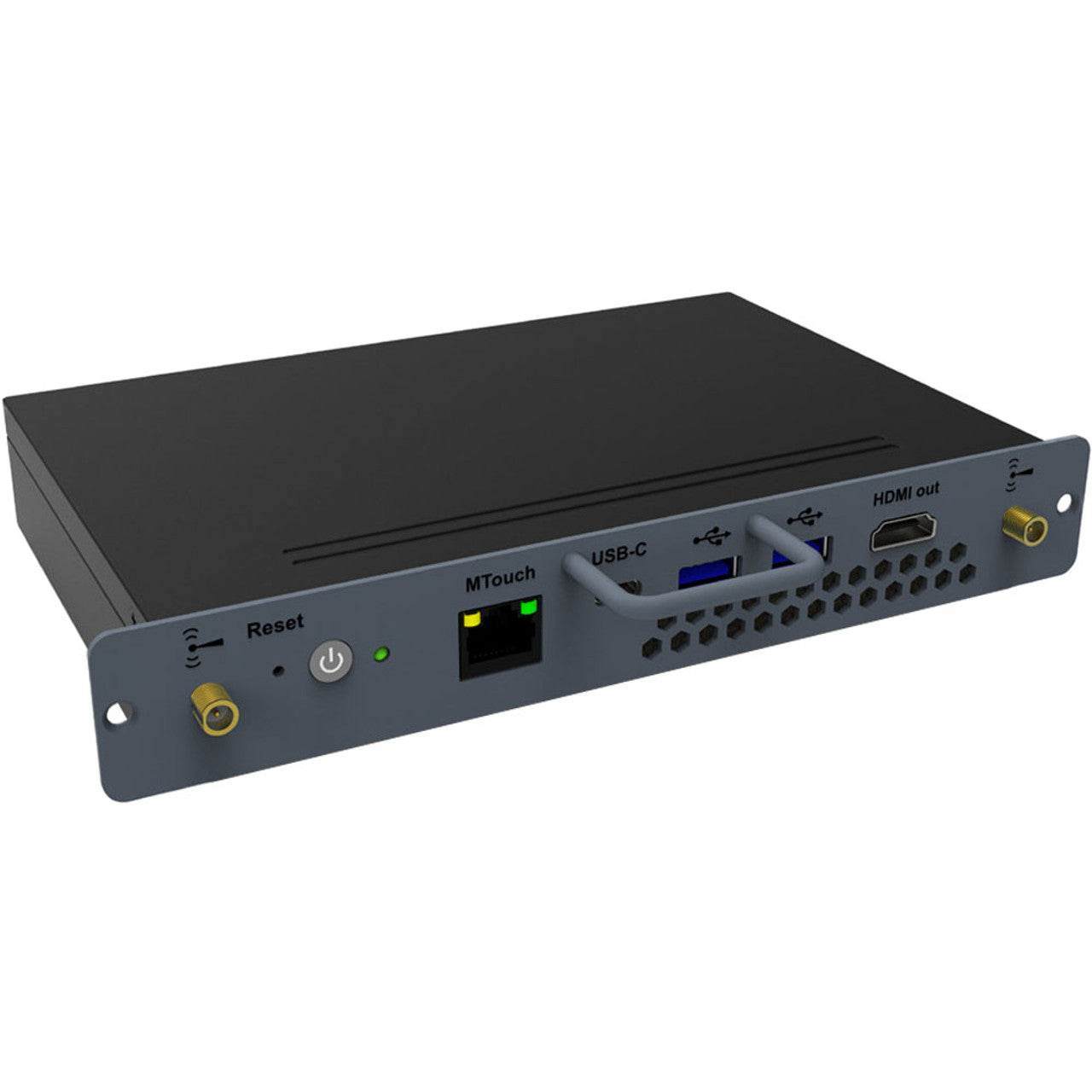

Yealink MCORE-OPS MeetingBoard OPS Module, i5, 8GB/128GB, Win10 IoT

VENDOR: YEALINK Mfg Part#: MCORE-OPS UPC#: 841885110480
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,387.65
$1,387.65
Sale Sold out
MSRP: $1,739.00
Shipping calculated at checkout.
  • Intel Core i5 quad-core processor for robust video conferencing performance
  • 8GB RAM and 128GB SSD provide fast system responsiveness and reliable storage
  • Pre-installed with Windows 10 IoT Enterprise OS, license included
  • Compatible OPS form factor for seamless MeetingBoard integration
  • Includes a 2-year hardware warranty for extended support
  • Manufactured in China; non-TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Pre-installed Windows 10 IoT Enterprise OS with license minimizes setup and licensing costs
  • OPS form factor ensures quick plug-and-play deployment into MeetingBoard displays
  • Backed by a 2-year hardware warranty, offering hardware protection for enterprise use

Product Overview

Windows OPS for MeetingBoard series INTEL Core i5 quad-core CPU 8GB Memory, 128GB SSD Storage Windows 10 IoT Enterpirse OS, license included Including 2-year hardware warranty

Specifications

Product Overview
Product Type OPS Module for MeetingBoard
Processor Type Intel Core i5 (quad-core)
Installed Memory (RAM) 8 GB
Solid State Drive Capacity 128 GB
Operating System Windows 10 IoT Enterprise
License Included Yes
Form Factor OPS (Open Pluggable Specification)
Power Requirements 19V DC
Warranty 2-year hardware warranty

Wireless Features
Wi‑Fi Standards 802.11a/b/g/n/ac
Bluetooth Version Bluetooth 4.2
Wireless Antennas Integrated internal antenna
Frequency Bands 2.4 GHz / 5 GHz

Compliance & Origin
Country of Origin China
TAA Compliance No
Regulatory Certifications CE, FCC, RoHS

Advanced Security Features
Secure Boot Yes
Firmware Update Security Digitally signed firmware support
OS-Level Security Windows 10 IoT Enterprise security features
Trusted Platform Module (TPM) TPM 2.0

Interfaces
HDMI Output 1 x HDMI
DisplayPort 1 x DP (DisplayPort)
USB Ports 4 x USB 3.0
RJ-45 Ethernet Port 1 x 10/100/1000 Mbps
Audio Combo Jack 1 x 3.5mm Audio In/Out combo
OPS Interface Connector JAE 80-pin (CON A+B)

Physical & Environmental
Dimensions (W x H x D) 200 x 119 x 30 mm
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 10% to 85% RH (non-condensing)
Storage Humidity 10% to 90% RH (non-condensing)
Weight Approx. 0.9 kg
Cooling Method Passive cooling (fanless)

Cloud Management & Licensing
Preinstalled Software Yealink MeetingBoard OS support
Cloud Compatibility Microsoft Teams, Zoom, Yealink Cloud Platform
Management Interface Remote management via Yealink Device Management Platform
Licensing Included Windows 10 IoT Enterprise license included
