ZYXEL DAC10G-1M 10G SFP+ Direct Attach Cable, 1 Meter (Rev2)

VENDOR: ZYXEL Mfg Part#: DAC10G-1M UPC#: 760559120917
1 5
Photo is for illustration purposes only. Actual product may be different.
$83.47
$83.47
Sale Sold out
MSRP: $99.99
Shipping calculated at checkout.
  • SFP+ to SFP+ direct attach copper cable
  • Cable length: 1 meter (3.281 feet)
  • TAA compliant for government and enterprise use
  • Manufactured in Taiwan for quality assurance
  • Passive cable design requires no power or transceivers

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Offers a cost-effective 10G interconnect solution for short-range networking.
  • TAA compliance makes it suitable for government applications and regulated industries.
  • Plug-and-play SFP+ connectivity minimizes installation complexity and supports rapid deployment.

Product Overview

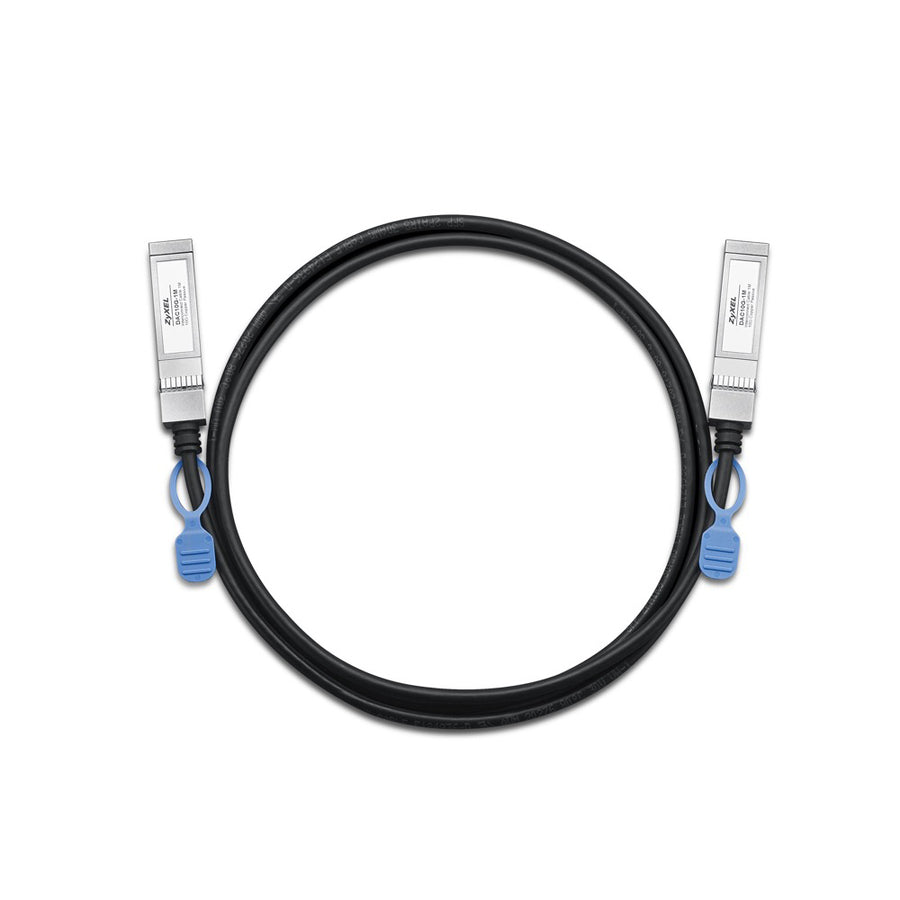

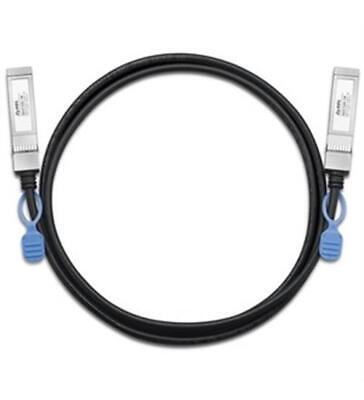

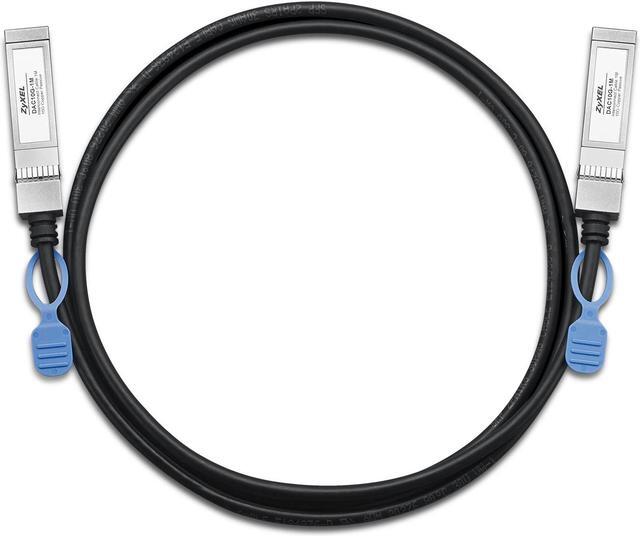

The ZYXEL DAC10G-1M is a 1-meter Direct Attach Cable tailored for 10G SFP+ interconnects. It features SFP+ connectors on both ends and provides a cost-effective, low-latency solution for short-distance high-speed networking. Manufactured in Taiwan and TAA-compliant, it ensures compatibility with regulated environments such as government and enterprise infrastructure. Its durable design and plug-and-play interface make it ideal for networking equipment inside racks or between adjacent devices with minimal power consumption and no need for separate transceivers.

Specifications

Product Overview
Product Type Direct Attach Copper (DAC) Cable
Form Factor Passive SFP+ Twinax Cable
Cable Length 1 meter (3.281 feet)
Power Requirements Passive, no external power required
Weight 0.2 kg (approx.)

Physical & Environmental
Jacket Type PVC
Color Black
Cable Diameter 30 AWG typical
Minimum Operating Temperature 0°C
Maximum Operating Temperature 70°C
Storage Temperature Range -40°C to 85°C
Operating Humidity 10% – 85% (non-condensing)
Storage Humidity 10% – 90% (non-condensing)
Durability Up to 50 insertion cycles

Cloud Management & Licensing
Cloud Management Compatibility
Software Licensing Required No

Interfaces
Connector Type (End 1) SFP+
Connector Type (End 2) SFP+
Interface Standard 10G SFP+
Data Transfer Rate 10 Gbps
Cable Type Twinax Copper
Conductor Construction Copper
Transmission Technology Direct Attach Copper (DAC)
Connection Type Point-to-point
Plug-and-Play Yes

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Halogen-Free No
Certifications CE, FCC, UL

Advanced Security Features
Encryption Support No
MACsec Support No
