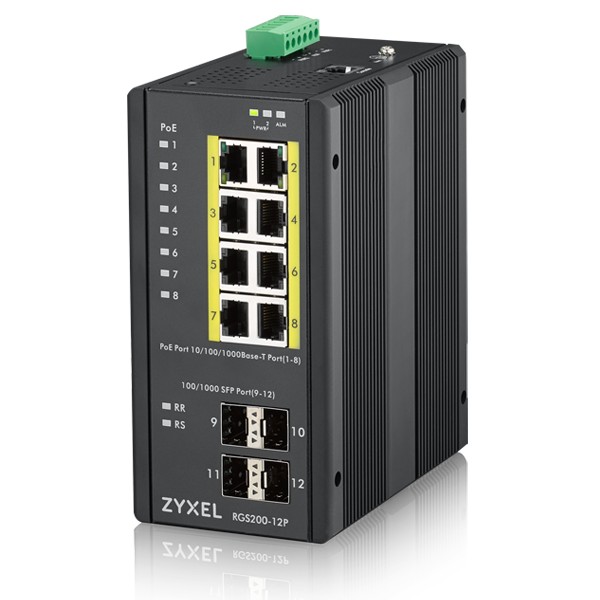

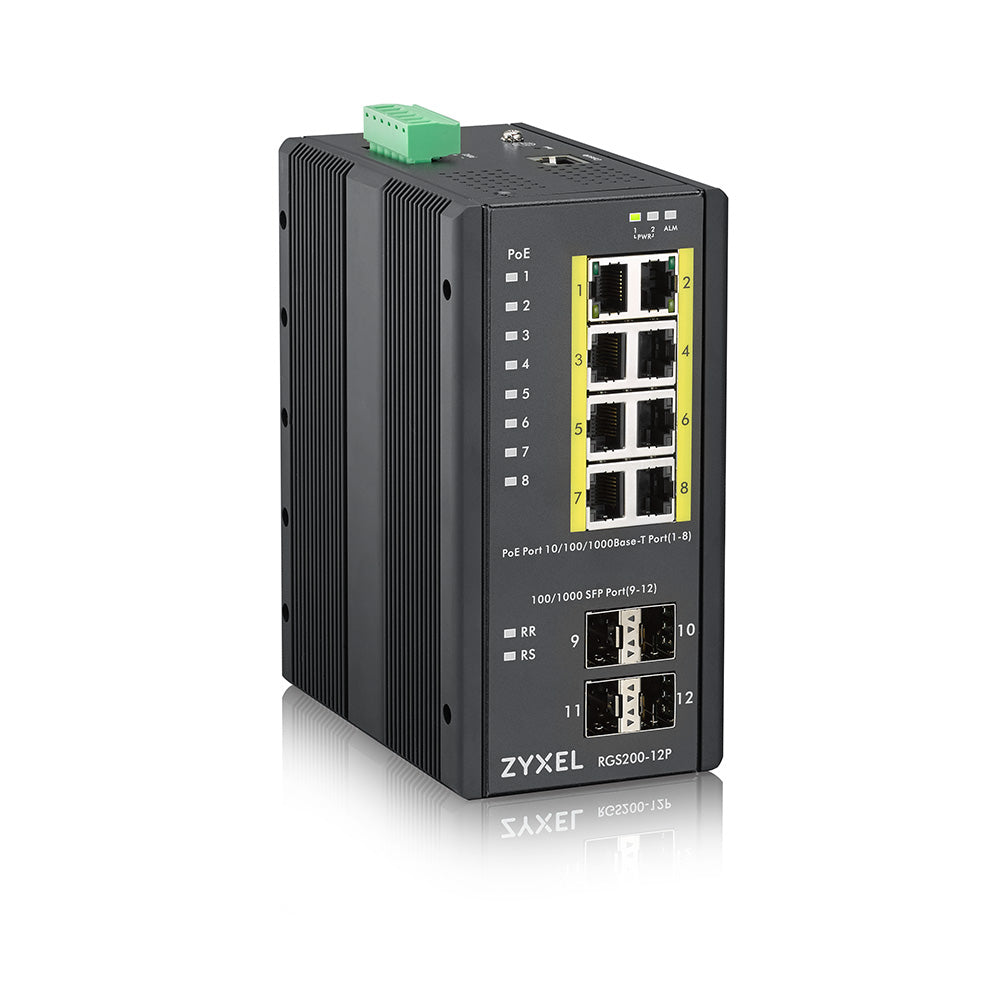

ZYXEL RGS200-12P 12-Port GbE PoE+ Industrial Managed Switch

VENDOR: ZYXEL Mfg Part#: RGS200-12P UPC#: 760559123987
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,001.67
$1,001.67
Sale Sold out
MSRP: $1,259.99
Shipping calculated at checkout.
  • 12-port Gigabit Ethernet Layer 2 managed switch with DIN-rail mount
  • 8 PoE+ ports with 240W total power budget for powering devices directly
  • 4 SFP ports allow fiber uplink for flexible, long-distance networking
  • Wide operating temperature range (-40°C to 75°C) for harsh environments
  • Jumbo frame support up to 9K and 8K MAC address entries

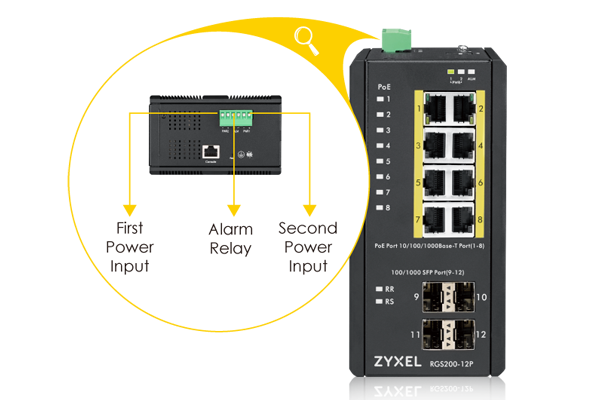

  • MTBF of 568,430 hours with redundant power input (12–58VDC)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports industrial-grade operation with wide temp range and rugged DIN-rail mounting
  • Delivers high PoE+ power (240W) across 8 ports, ideal for powering IP devices
  • Includes 4 SFP uplinks to expand network reach and bandwidth in fiber-based systems

Product Overview

The ZYXEL RGS200-12P is a 12-port managed industrial DIN-rail switch engineered for high-performance and reliable network connectivity in harsh environments. Featuring eight Gigabit PoE+ ports with a cumulative 240W power budget, it enables efficient power and data delivery for surveillance and industrial devices. With four SFP uplinks, 9K jumbo frame support, and an 8K MAC table, it offers scalable and efficient Layer 2 performance.

Built for rugged deployment, the unit handles extreme temperatures from -40°C to 75°C and is TAA-compliant. Power redundancy through a wide 12–58VDC input and an MTBF of over 568,000 hours ensures high reliability. Ideal for industrial automation, surveillance, and transportation networks, the RGS200-12P provides robust, manageable, and long-lasting wired connectivity.

Specifications

Product Overview
Product Type Managed Industrial Switch
Model RGS200-12P
Form Factor DIN-rail mountable
Weight 3.2 lbs.
Power Requirements 12V–58V DC
Redundant Power Input Support Yes
MTBF (Mean Time Between Failures) 568430 hours
PoE Total Power Budget 240W
Max Power Consumption 255W

Physical & Environmental
Width 3.03 inches (77 mm)
Height 6.06 inches (154 mm)
Depth 5.01 inches (127.3 mm)
Enclosure Type Metal, IP30 rated
Minimum Operating Temperature -40°C
Maximum Operating Temperature 75°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 85°C
Operating Humidity 5%–95% (non-condensing)
Mounting Options DIN-Rail and Wall Mount
Ingress Protection IP30

Cloud Management & Licensing
Managed via Web GUI Yes
SNMP Support v1, v2c, v3
Command Line Interface (CLI) Yes
Zyxel Nebula Cloud Management No

Interfaces
Total Ethernet Ports 12
PoE Ports 8 x 10/100/1000BASE-T PoE+
PoE Standards Supported IEEE 802.3af/at
SFP Uplink Ports 4 x 100/1000 Mbps SFP
Console Port Yes (RJ45)
MAC Address Table Size 8K entries
Jumbo Frame Support Up to 9 KB
Throughput 17.85 Mbps (64-byte packet)
Switching Capacity 24 Gbps
Forwarding Rate 17.86 Mpps
Auto-MDI/MDIX Yes
Flow Control IEEE 802.3x flow control

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL 61010-2-201, Class I Division 2
RoHS Compliant Yes
EMC Compliance EN61000-6-2, EN61000-6-4

Advanced Security Features
Access Control Lists (ACL) Yes
Port Security Yes
802.1X Authentication Yes
Storm Control Yes
Broadcast/Multicast/Unknown Unicast Suppression Yes
