| Product Type | Gigabit Ethernet Transceiver |
| Form Factor | SFP (Small Form-Factor Pluggable) |
| Transceiver Type | LX |
| Connectivity Technology | Wired |
| Plug-and-Play | Yes |
| Digital Diagnostic Monitoring Interface (DDMI) | Supported |
| Wavelength | 1310nm |
| Laser Type | FP (Fabry-Perot) Laser |
| Power Budget | 11 dB |
| Mean Transmitted Optical Power | -9 to -3 dBm |
| Receiver Sensitivity | -20 dBm |
| DOM Function | Yes |
ZYXEL SFP-LX-10-D Gigabit Ethernet Transceiver, LC, 1310nm, 10km

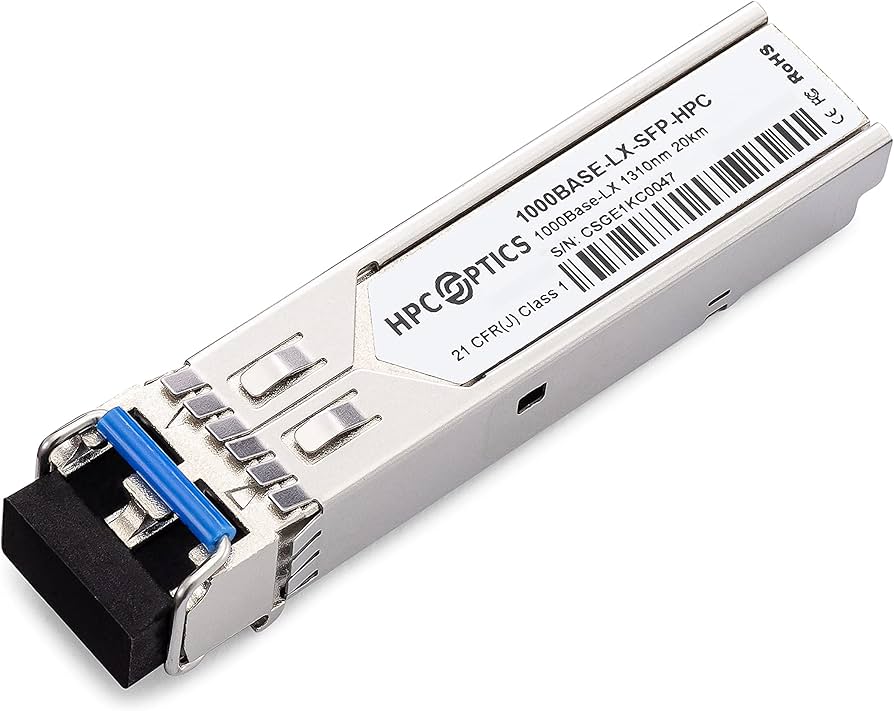

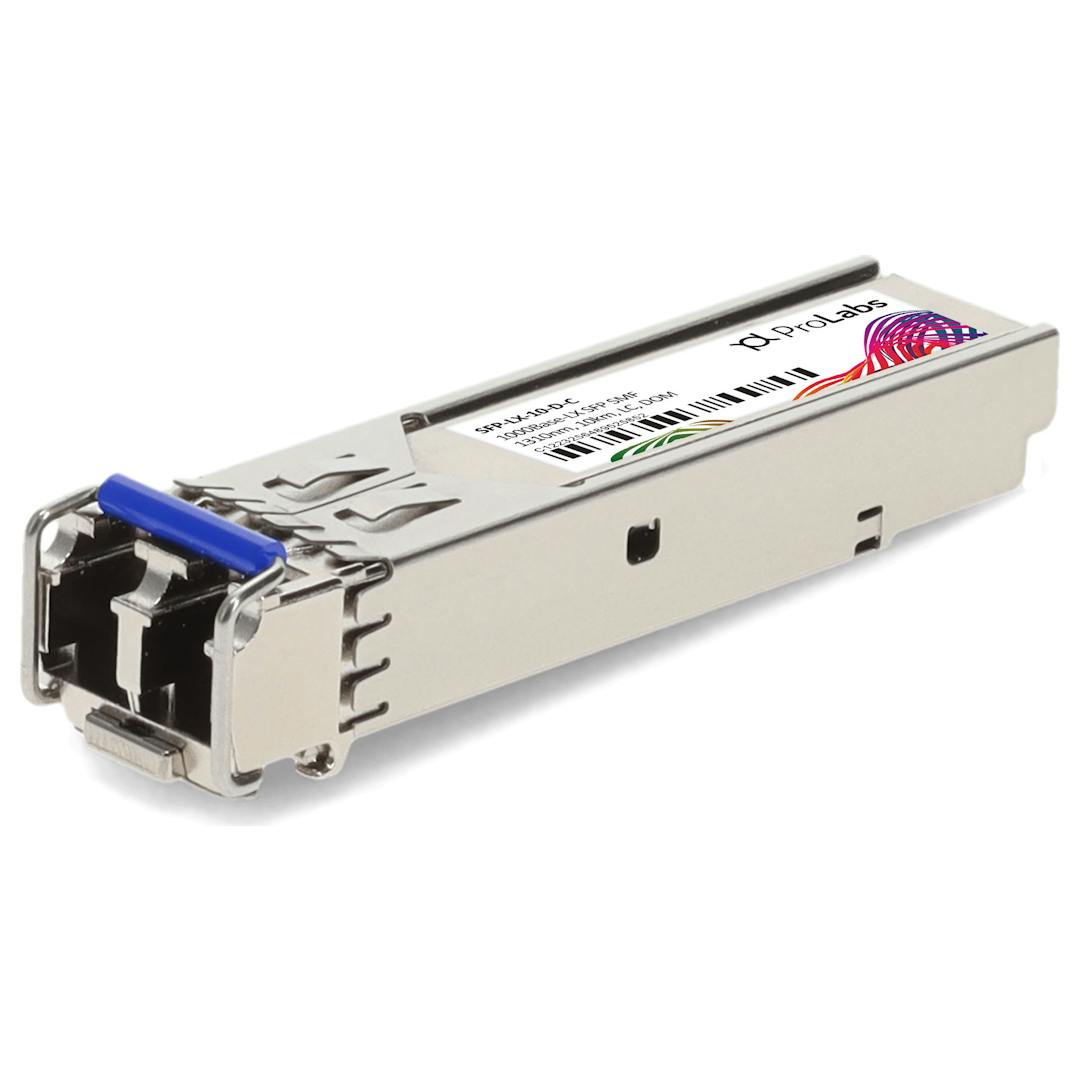

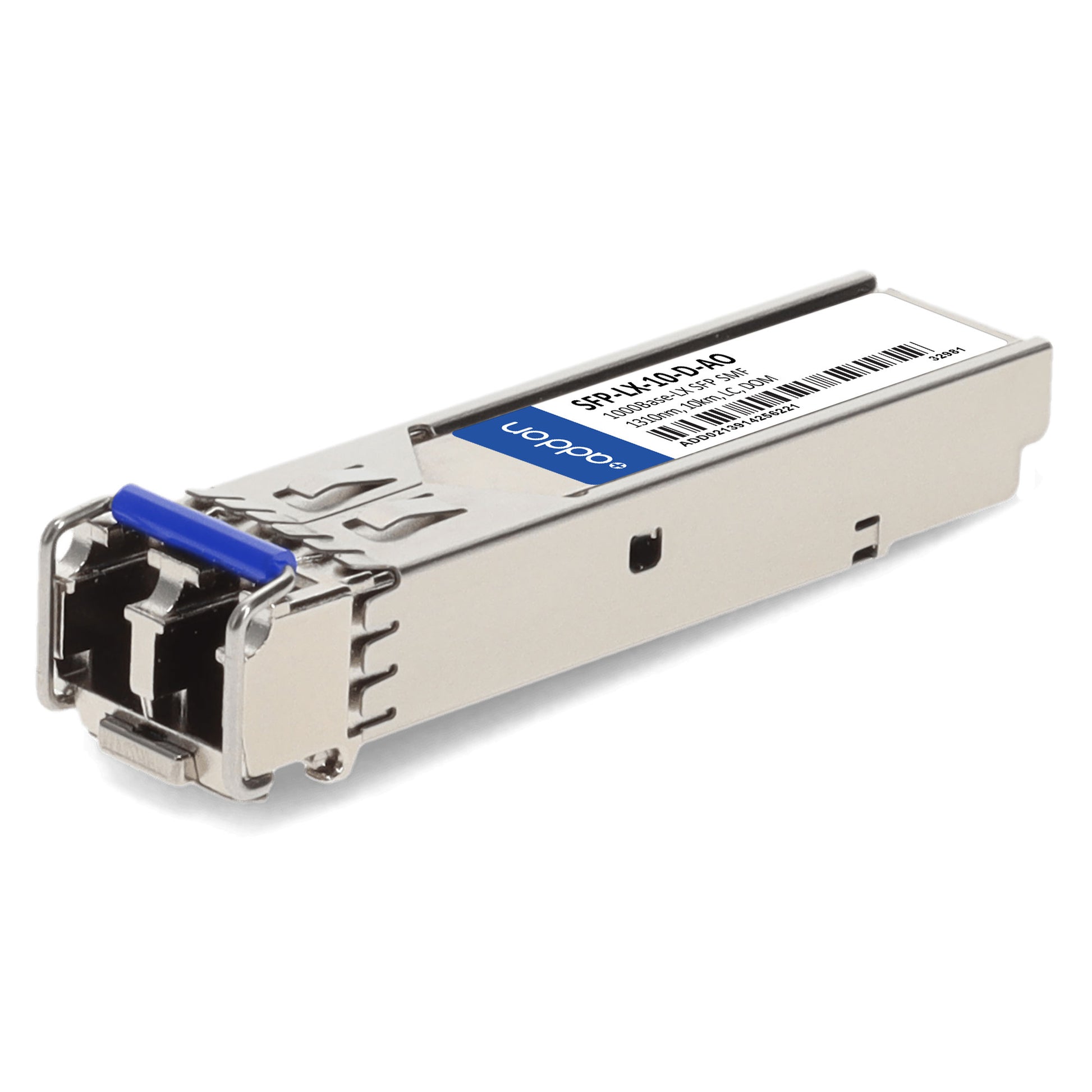

Photo is for illustration purposes only. Actual product may be different.
Regular price
$33.38
Regular price
Sale price
$33.38
Unit price
per
MSRP: $39.99
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports 1310nm wavelength for fiber optic transmission
- Compatible with single-mode (10km) and multi-mode (550m) fiber
- SFP interface with LC connector for flexible deployment
- Wired connectivity with support for Gigabit Ethernet
- Digital Diagnostic Monitoring Interface (DDMI) supported
- Manufactured in Taiwan, TAA compliant
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Flexible multimode and single-mode support allows deployment across diverse networking distances.
- DDMI capability delivers real-time performance diagnostics, improving network maintenance and troubleshooting.
- TAA compliance makes it eligible for federal or government projects requiring regulatory adherence.
Product Overview
The ZYXEL SFP-LX-10-D is a versatile gigabit transceiver engineered for flexible, high-speed data transmission over fiber optic networks. It operates at a wavelength of 1310nm and supports single-mode (10km) and multi-mode (550m) fiber, making it suitable for varied deployment environments. With Gigabit Ethernet compliance and DDMI support, this module offers real-time diagnostics for key operating parameters. The device connects using an LC interface and integrates seamlessly into existing SFP ports with plug-and-play readiness. Manufactured in Taiwan and meeting TAA compliance, it is well-suited for government and enterprise applications seeking rugged and compliant network solutions.
Specifications
Product Overview
Physical & Environmental
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Operating Humidity | 5% to 85% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 13.7 x 56.5 x 8.5 mm |
| Weight | Less than 20 g |
| Housing Material | Metal enclosure |
| Cooling | Passive |
Cloud Management & Licensing
| Cloud Management | No |
| License Requirement | No |
Interfaces
| Interface | SFP |
| Connector Type | LC Duplex |
| Data Rate | 1.25 Gbps |
| Port Type | 1000BASE-LX |
| Supported Cable Type | Single-mode and Multi-mode Fiber |
| Transmission Distance (Single-mode) | 10 km |
| Transmission Distance (Multi-mode with mode conditioning patch cable) | 550 m |
| Hot Swappable | Yes |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Certifications | CE, FCC, Class 1 Laser IEC 60825-1 |
| Safety Standard | EN60825-1 |
Advanced Security Features
| Secure Digital Diagnostics | Yes |
