| Manufacturer | ZYXEL |
| Model | XGS1010-12 |
| Type | Unmanaged Switch |
| Form Factor | Desktop |
| Power Requirements | 100–240V AC, 50/60Hz |
| Maximum Power Consumption | 13.4W |
| Switching Capacity | 120 Gbps |
| Forwarding Rate | 89.3 Mpps |
| MAC Address Table Size | 16K |
| Packet Buffer Memory | 1.5 MB |
| Energy Efficient Ethernet (EEE) | IEEE 802.3az |
| Fanless Design | Yes |
| Product Weight | 1.59 lbs (0.72 kg) |

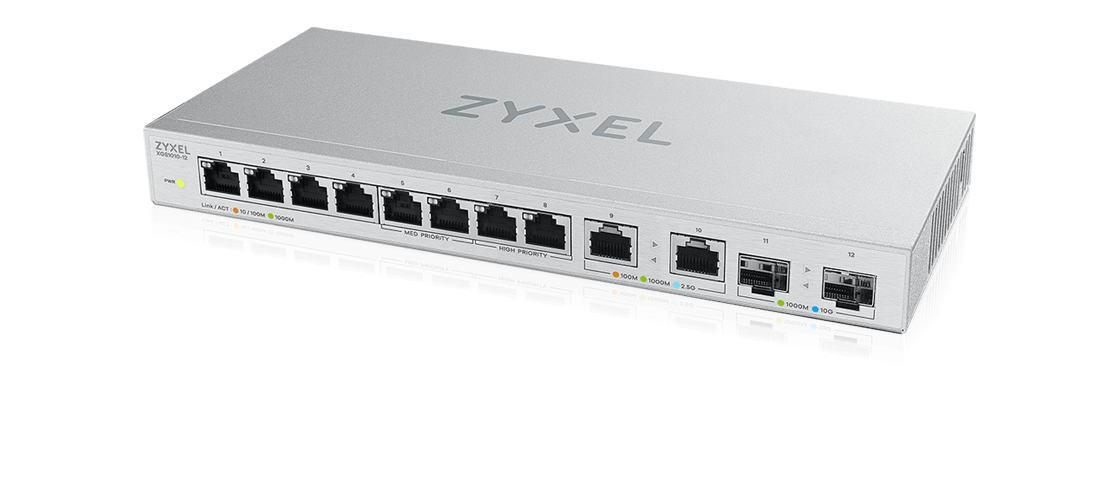

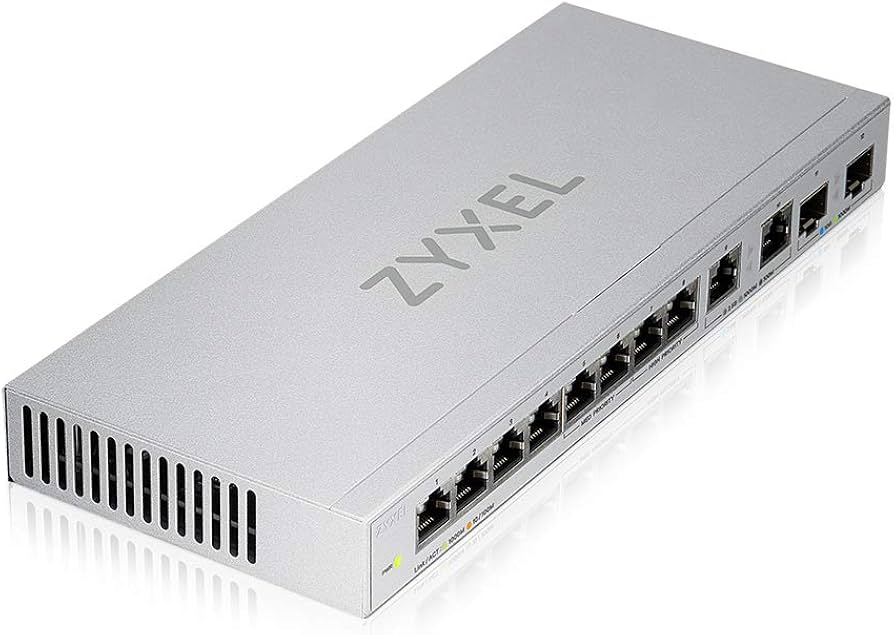

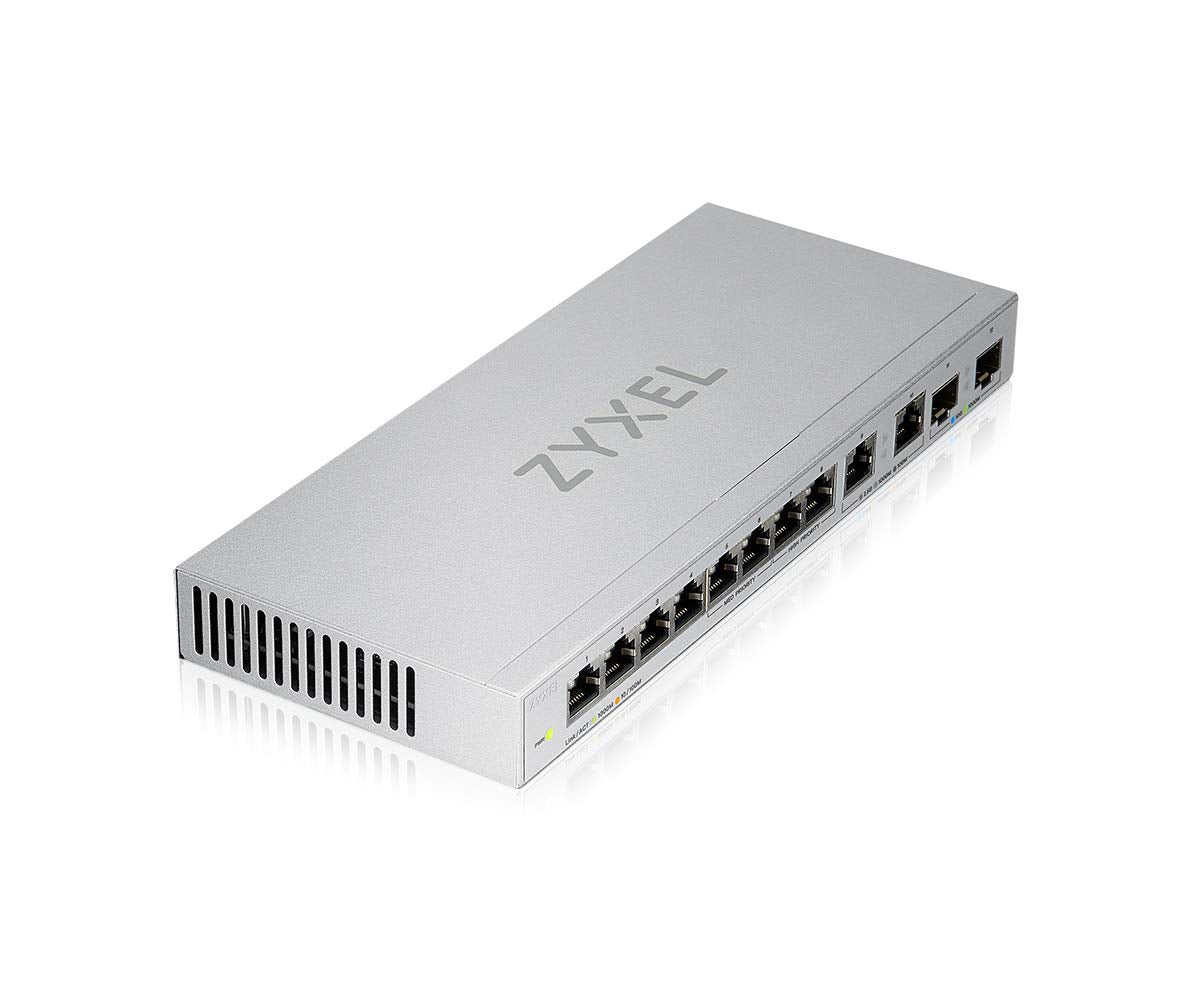

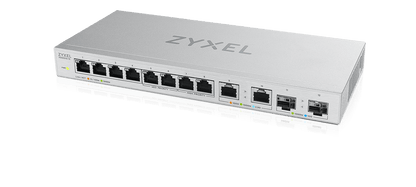

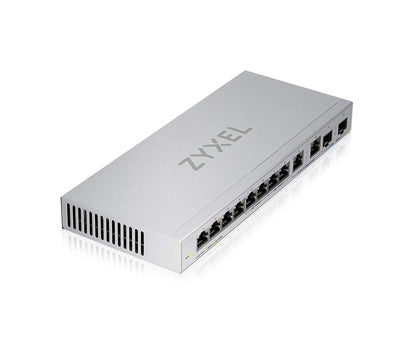

ZYXEL XGS1010-12 12-Port Unmanaged Multi-Gig Switch with 2.5G & 10G Ports
Photo is for illustration purposes only. Actual product may be different.
Regular price
$166.93
Regular price
Sale price
$166.93
Unit price
per
MSRP: $214.99
Shipping calculated at checkout.
Couldn't load pickup availability
- 12-port unmanaged switch with 8 Gigabit RJ-45 ports, 2 x 2.5G copper ports, and 2 x SFP+ 1/10G ports
- Multi-speed support including 10M, 100M, 1G, 2.5G, and 10G
- Maximum data transfer rate of 10 Gbps
- Compatible with Gigabit Ethernet protocols
- Compact dimensions: 9.84" W x 4.10" D x 1.06" H
- TAA compliant for government procurement
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Offers flexible multi-Gig connectivity (1G/2.5G/10G) to accommodate scaling network demands
- Plug-and-play unmanaged setup ideal for businesses seeking rapid deployment without IT overhead
- TAA compliance opens eligibility for federal and public sector infrastructure projects
Product Overview
The ZYXEL XGS1010-12 is a 12-port unmanaged Gigabit switch designed for businesses requiring multi-gigabit connectivity with minimal setup complexity. It features 8 standard 10/100/1000 Mbps ports, 2 copper 2.5G ports for mid-tier high-speed devices, and 2 SFP+ slots supporting 1/10G modules for uplink or long-distance fiber connectivity. With a data transfer rate of up to 10 Gbps and support for multiple link protocols, it enables streamlined data distribution to meet modern network demands. Its compact form factor and 100-240V wide voltage support ensure flexible, global deployment. Additionally, TAA compliance makes it suitable for public sector use. This switch is ideal for network environments that prioritize performance, simplicity, and future scalability.
Specifications
Product Overview
Wireless Features
Compliance & Origin
| Country of Origin | China |
| TAA Compliant | Yes |
| Certifications | CE, FCC Class A, BSMI, RCM |
| RoHS Compliant | Yes |
Advanced Security Features
Interfaces
| Total Number of Ports | 12 |
| 10/100/1000 Mbps RJ-45 Ports | 8 |
| 2.5GBase-T RJ-45 Ports | 2 |
| SFP+ 10G Ports | 2 |

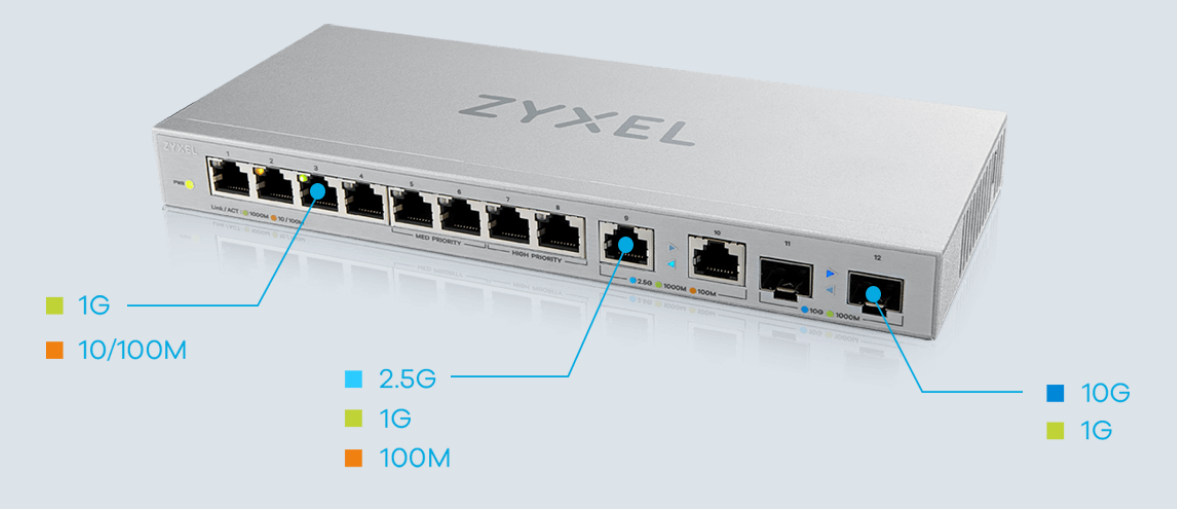

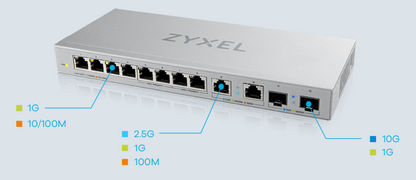

| Port Speed | 10M/100M/1G/2.5G/10G |
| Auto MDI/MDI-X | Yes |
| Full Duplex Support | Yes |
| Store-and-Forward Switching | Yes |
| Jumbo Frame Support | 12 KB |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3an, 802.3bz, 802.3x, 802.3az |
Physical & Environmental
| Width | 9.84 in (250 mm) |
| Depth | 4.10 in (104 mm) |
| Height | 1.06 in (27 mm) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 10% to 95% (non-condensing) |
Cloud Management & Licensing
| Management Type | Unmanaged |
