| Product Type | Smart Managed Switch |
| Model | XMG1930-30 |
| Form Factor | Rackmount |
| Weight | 3.4 kg |
| Power Consumption (Max) | 67.1 W |
| Power Supply | Internal |
| Voltage Required | 100 to 240 V AC, 50/60 Hz |
| Mounting Type | Rack-mountable 1U |
| Switching Capacity | 320 Gbps |
| Forwarding Rate | 238 Mpps |

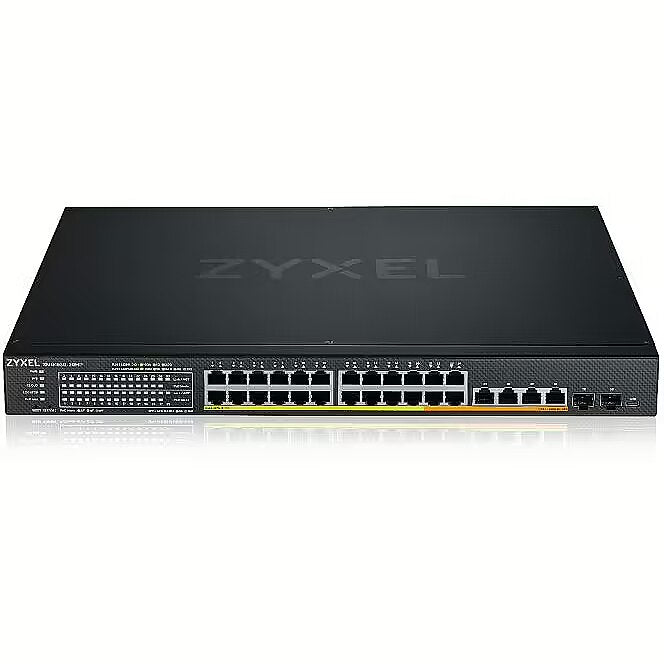

ZYXEL XMG1930-30 24-Port 2.5GbE Smart Switch with 4x10GbE & 2 SFP+ Uplinks
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,035.06
Regular price
Sale price
$1,035.06
Unit price
per
MSRP: $1,299.99
Shipping calculated at checkout.
Couldn't load pickup availability

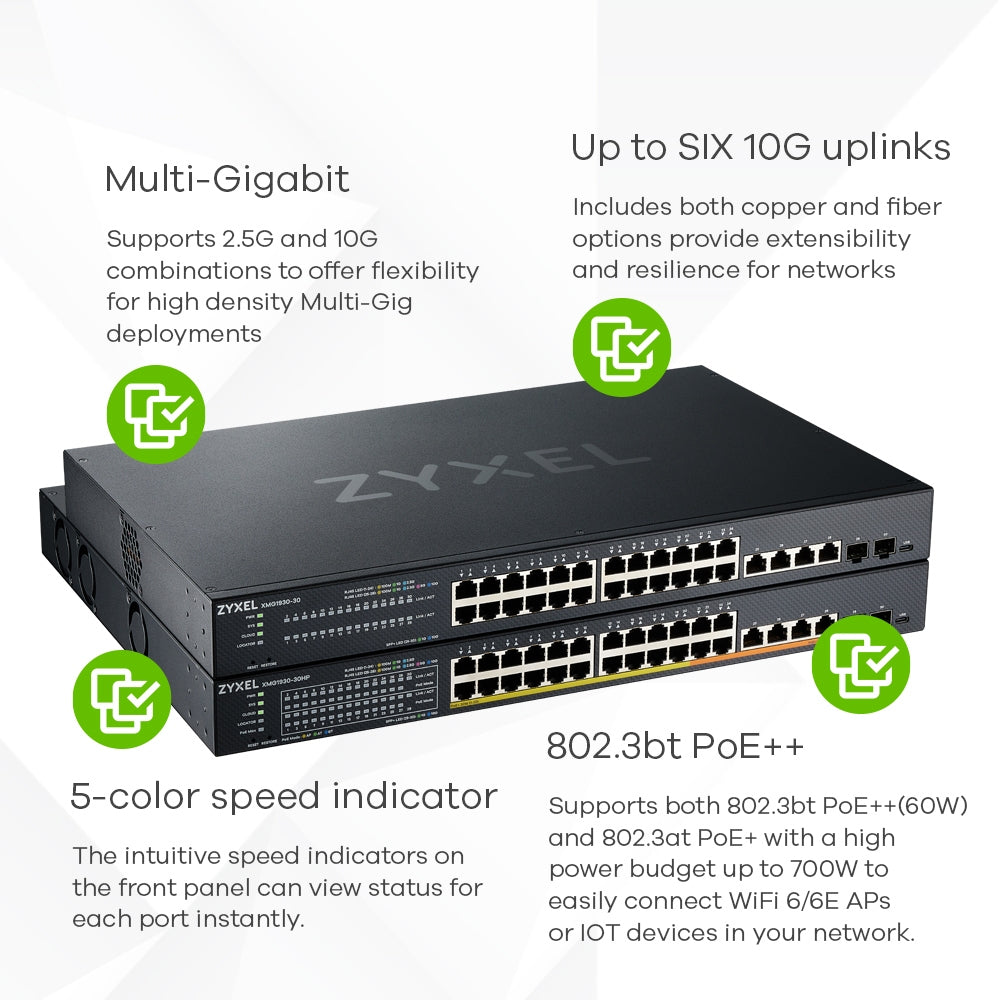

- 24-port 2.5GbE connectivity with high-speed performance
- Includes 4 x 10GbE uplink ports and 2 SFP+ interfaces
- NebulaFLEX support for flexible local or cloud-managed deployment
- Data transfer rates up to 10 Gbps using Gigabit Ethernet protocol
- Energy-efficient design with 67.1W max power consumption
- Wide operating temperature range of -20°C to 50°C for rugged environments
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High port density and 2.5GbE capability support modern devices with increased bandwidth demands.
- Integrated NebulaFLEX provides adaptable management options suitable for both SMB and enterprise networks.
- TAA compliance and robust temperature tolerance ensure suitability for government and industrial deployments.
Product Overview
The ZYXEL XMG1930-30 is a smart managed switch offering 24 2.5GbE ports, 4 10GbE ports, and 2 SFP+ uplinks for optimized bandwidth support. It features NebulaFLEX for flexible cloud or standalone management. Operating at up to 10 Gbps and consuming only 67.1W, it's suitable for temperature extremes ranging from -20°C to 50°C. With TAA compliance and compact rackmount form, it's ideal for enterprise, education, or industrial use.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications | CE, FCC Class A, CCC, BSMI, VCCI, RCM |
| RoHS Compliance | Yes |
| Safety Standards | EN 60950-1, IEC 60950-1 |
Advanced Security Features
| Access Control Lists (ACL) | Yes |
| IEEE 802.1X Authentication | Yes (Port-based and MAC-based) |
| Port Security | Yes |
| DHCP Snooping | Yes |
| DoS Attack Prevention | Yes |
| Loop Guard | Yes |
| Storm Control | Broadcast, Multicast, Unknown Unicast |
| IGMP Snooping | Yes (v1/v2/v3) |
Interfaces
| 2.5GBase-T RJ-45 Ports | 24 |
| 10GBase-T RJ-45 Ports | 4 |
| 10-Gigabit SFP+ Ports | 2 |
| Console Ports | 1 x RJ-45 |
| MAC Address Table Size | 32K entries |
| Packet Buffer | 12 Mbit |
| Jumbo Frame Support | 9 KB |
| VLAN Support | Yes (IEEE 802.1Q) |
| Link Aggregation | Yes (IEEE 802.3ad) |
| Port Mirroring | Yes |
| Spanning Tree Protocol | Yes (IEEE 802.1D, 802.1w, 802.1s) |
Physical & Environmental
| Width | 17.36 in (441 mm) |
| Depth | 10.36 in (263.1 mm) |
| Height | 1.73 in (44 mm) |
| Operating Temperature Range | -20°C to 50°C |
| Storage Temperature Range | -40°C to 70°C |
| Operating Humidity | 10% to 95% (non-condensing) |
| Acoustic Noise Level | 45.8 dBA (max) |
| MTBF | 527,000 hours (Telcordia SR-332, Issue 3) |
| Fanless Design | No (Active cooling) |
Cloud Management & Licensing
| Cloud Management Platform | Zyxel NebulaFlex |
| Management Options | Standalone, Cloud-managed, Web GUI, CLI, SNMP |
| Included Cloud Features | Nebula cloud monitoring & configuration |
| Licensing Requirements | Optional Nebula Pro Pack subscription |
