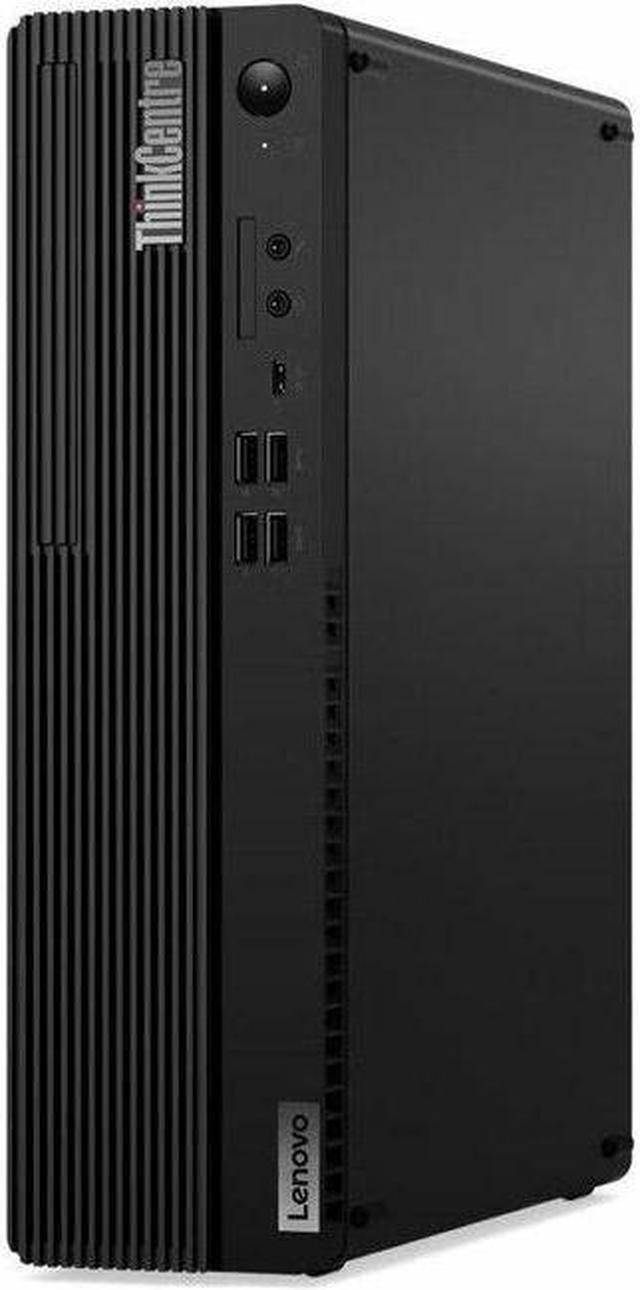

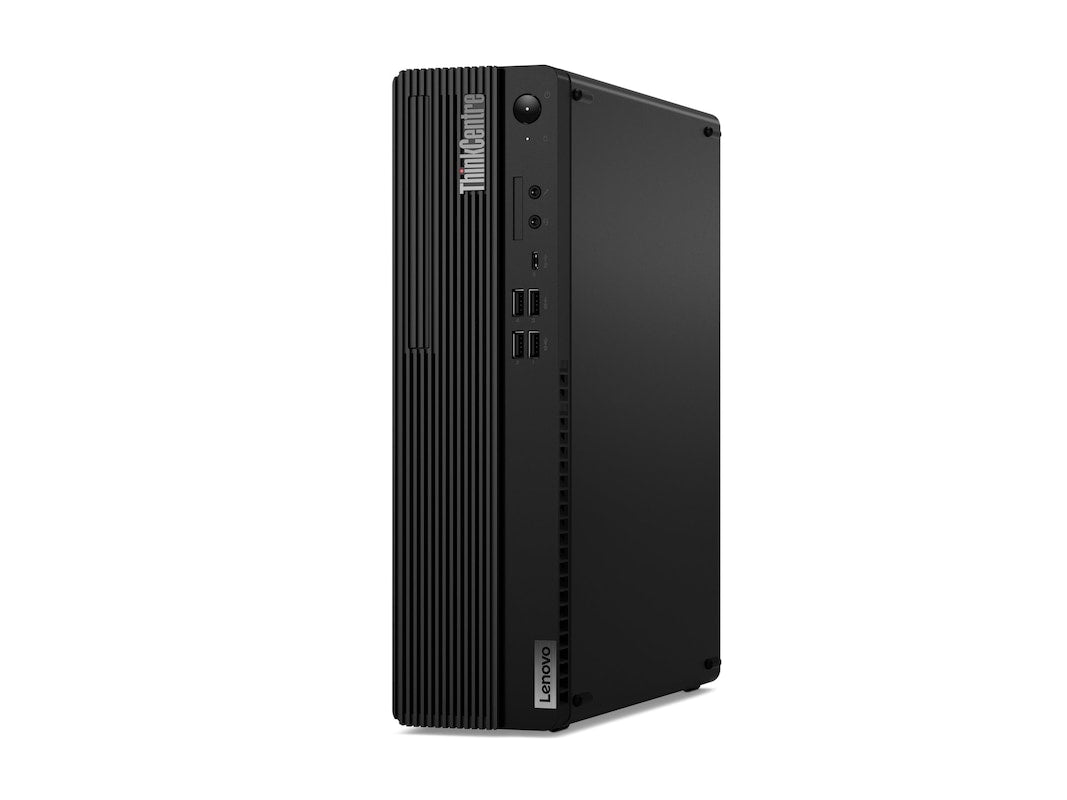

Lenovo ThinkCentre M90s Gen 5 SFF Desktop, i9-14900, 16GB, 256GB SSD, W11P

VENDOR: LENOVO Mfg Part#: 12V40001US
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,769.00
$1,769.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Core i9-14900 24-core processor with 5.8 GHz max turbo frequency
  • 16GB DDR5 4400 MHz RAM, expandable to 128GB
  • 256GB PCIe Gen4 NVMe SSD for fast storage and boot times
  • Intel UHD Graphics 770 supporting up to 4 monitors
  • Robust connectivity with Wi-Fi, Bluetooth, Gigabit Ethernet, and USB-C/USB-A ports
  • Enterprise-grade security with TPM 2.0, TCG and FIPS 140-2 certifications

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers cutting-edge performance with a high-end 14th Gen Intel Core i9 processor, ideal for resource-demanding workloads
  • Compact small form factor design maximizes workspace utilization without compromising expandability or thermal efficiency
  • Includes a 3-year onsite warranty and enterprise-level security features, ensuring long-term IT value and data protection

Product Overview

ThinkCentre M90s Gen 5, Intel Core i9-14900 vPro (E-cores up to 4.30GHz, 36MB), Windows 11 Pro 64, 16.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year On-site, USB, Traditional, Black-English (US)

Specifications

Product Overview
Type Desktop PC
Model ThinkCentre M90s Gen 5
Form Factor Small Form Factor (SFF)
Weight 5.3 kg
Power Supply Internal Power Supply
Power Provided 310 Watt
Power Requirements 100-240V AC, 50-60Hz
Energy Efficiency 92%
Enclosure Color Black
Operating System Windows 11 Pro 64-bit

Wireless Features
Wi-Fi Standard Wi-Fi 6E (802.11ax)
Bluetooth Bluetooth 5.1 or above
WLAN Adapter Intel Wi-Fi 6E AX211 (vPro)

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Certifications ENERGY STAR 8.0, EPEAT Gold, RoHS, TCG Certified, FIPS 140-2

Advanced Security Features
Security Chip Discrete TPM 2.0
TPM Certification Trusted Computing Group (TCG), FIPS 140-2
Chassis Intrusion Switch Yes

Memory
Installed Memory 16 GB DDR5
Memory Slots 4 DIMM Slots
Memory Speed DDR5 4400 MHz
Max Memory Supported 128 GB

Graphics
Graphics Processor Intel UHD Graphics 770
Max Number of Displays 4

Interfaces
Front I/O Ports 1x USB-C (USB 3.2 Gen 2, 10Gbps, 15W charging), 2x USB-A (USB 3.2 Gen 1), Microphone/Headphone Combo Jack
Rear I/O Ports 4x USB-A (USB 3.2 Gen 1), 2x DisplayPort 1.4, 1x Ethernet (RJ-45), Line-out
Expansion Slots 1x PCIe 4.0 x16 (x4 signal), low-profile
Ethernet Integrated 10/100/1000 Mbps
USB Ports Total 7 (1x USB-C, 6x USB-A)
Optical Drive Slim DVD±RW (RAMBO)

Physical & Environmental
Width 92.5 mm
Depth 297.7 mm
Height 339.5 mm
Operating Temperature 10°C to 35°C (50°F to 95°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 20% to 80% (non-condensing)

Cloud Management & Licensing
Management Interface Intel vPro (AMT 16.x)
Warranty 3-Year On-Site Support
Operating System License Windows 11 Pro 64

Processor
Processor Type Intel Core i9-14900
Processor Generation 14th Generation
Processor Core Count 24 Cores (8 Performance + 16 Efficiency)
Max Turbo Frequency 5.8 GHz
Cache 36 MB Intel Smart Cache
Chipset Intel Q670

Storage
Storage Type SSD
Installed Storage Capacity 256 GB
Interface Type M.2 2280 PCIe 4.0 NVMe, TLC, Opal

Included Peripherals
Keyboard USB Traditional Keyboard (English, Black)
Mouse USB Calliope Mouse (Black)
Speakers Integrated Speakers
