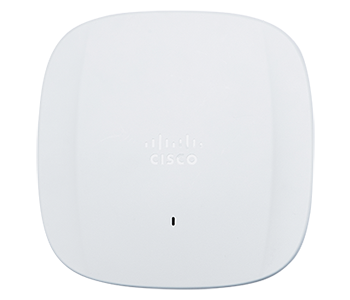

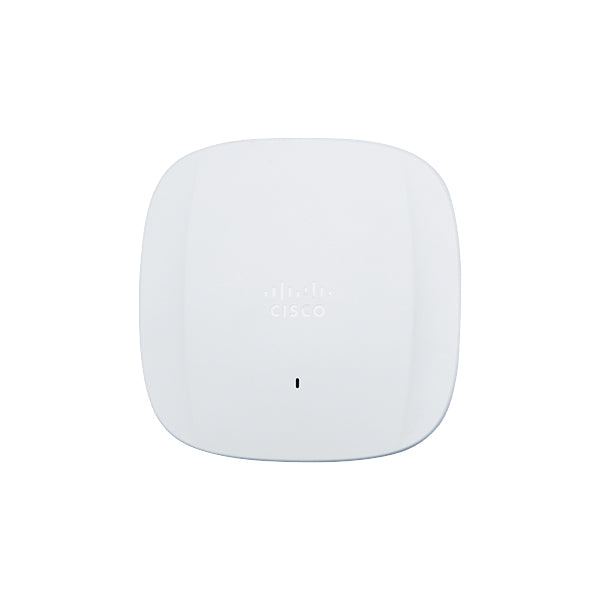

Cisco Catalyst 9166I AP (W6E, Tri-band 4x4) with Meraki

VENDOR: CISCO Mfg Part#: CW9166I-MR UPC#: 810087201906
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,400.77 USD
$1,400.77 USD
Sale Sold out
MSRP: $2,507.48
Shipping calculated at checkout.
  • Tri-band wireless interface with 4x4 MIMO configuration
  • Integrated Meraki cloud management capability
  • TAA-compliant for use in government or regulated infrastructures
  • Manufactured in Taiwan for controlled supply chain sourcing

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprises seeking tri-band, high-density Wi-Fi access with 4x4 performance
  • Meraki integration supports efficient cloud-based network provisioning and monitoring
  • TAA-compliance ensures regulatory alignment for government or sensitive sector deployments

Product Overview

The Cisco Catalyst 9166I Access Point (CW9166I-MR) is designed for enterprise-level wireless networking. Featuring a tri-band antenna system and 4x4 MIMO streams, it offers improved bandwidth and consistency for dense user environments. The Meraki integration enables centralized management, simplifying operations in multi-site or cloud-first deployments. With its TAA compliance and manufacture in Taiwan, the unit supports secure, government-ready implementations. Though further technical details are not provided, this device is well-suited for scalable and compliant network infrastructures.

Specifications

Product Overview
Product Type Wireless Access Point
Form Factor Ceiling or wall mountable
Integrated Antenna Yes
Mounting Options Flush or suspended ceiling, wall
Power Options 802.3at PoE+
Number of Radios 3 (Tri-band)
MIMO 4x4:4 MU-MIMO
Target Use Case Enterprise networks, high-density environments
Maximum Associated Clients Up to 200 clients per radio
Weight 980 g (2.2 lbs)

Wireless Features
Wi-Fi Standards 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Frequency Bands 2.4 GHz, 5 GHz, 6 GHz
Band Steering Yes
Beamforming Yes
Spatial Streams 4 per radio
Max Data Rate (6 GHz) Up to 2402 Mbps
Max Data Rate (5 GHz) Up to 2402 Mbps
Max Data Rate (2.4 GHz) Up to 574 Mbps
Antenna Type Internal
Number of Internal Antennas 12 (4 per radio)

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC, IC, CE, UL, Wi-Fi Alliance Certified
RoHS Compliance Yes

Advanced Security Features
WPA3 Encryption Yes
WPA2 Enterprise/Personal Yes
802.1X Authentication Yes
Secure Guest Access Yes
Rogue AP Detection Yes
IDS/IPS Integrated via Meraki Dashboard
Application Layer Traffic Shaping Yes
Malware Scanning (AMP) Yes, via Cisco Umbrella integration

Interfaces
Ethernet Ports 1 x 2.5G Ethernet Port
Console Port 1 x Management Console Port (RJ45)
PoE Input Yes (802.3at compliant)
USB Port 1 x USB 2.0 (for future use)
Data Transfer Rate Up to 5.9 Gbps aggregate throughput

Physical & Environmental
Dimensions (W x D x H) 236 x 236 x 56 mm (9.3 x 9.3 x 2.2 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity Range (Operating) 10% to 90% (non-condensing)
Humidity Range (Storage) 5% to 90% (non-condensing)
Enclosure Plastic, UL 94 V-0 rated

Cloud Management & Licensing
Cloud Management Platform Cisco Meraki Dashboard
Licensing Model Meraki Enterprise License Required
Remote Monitoring Yes
Zero-Touch Provisioning Yes
Auto Firmware Updates Yes
