Cisco Catalyst 9300X 24-Port SFP28 Modular Uplink Switch

VENDOR: CISCO Mfg Part#: C9300X-24Y-E UPC#: 889728362573
  • Catalyst 9300X 24x25G Fiber Ports, modular uplink Switch
1 1

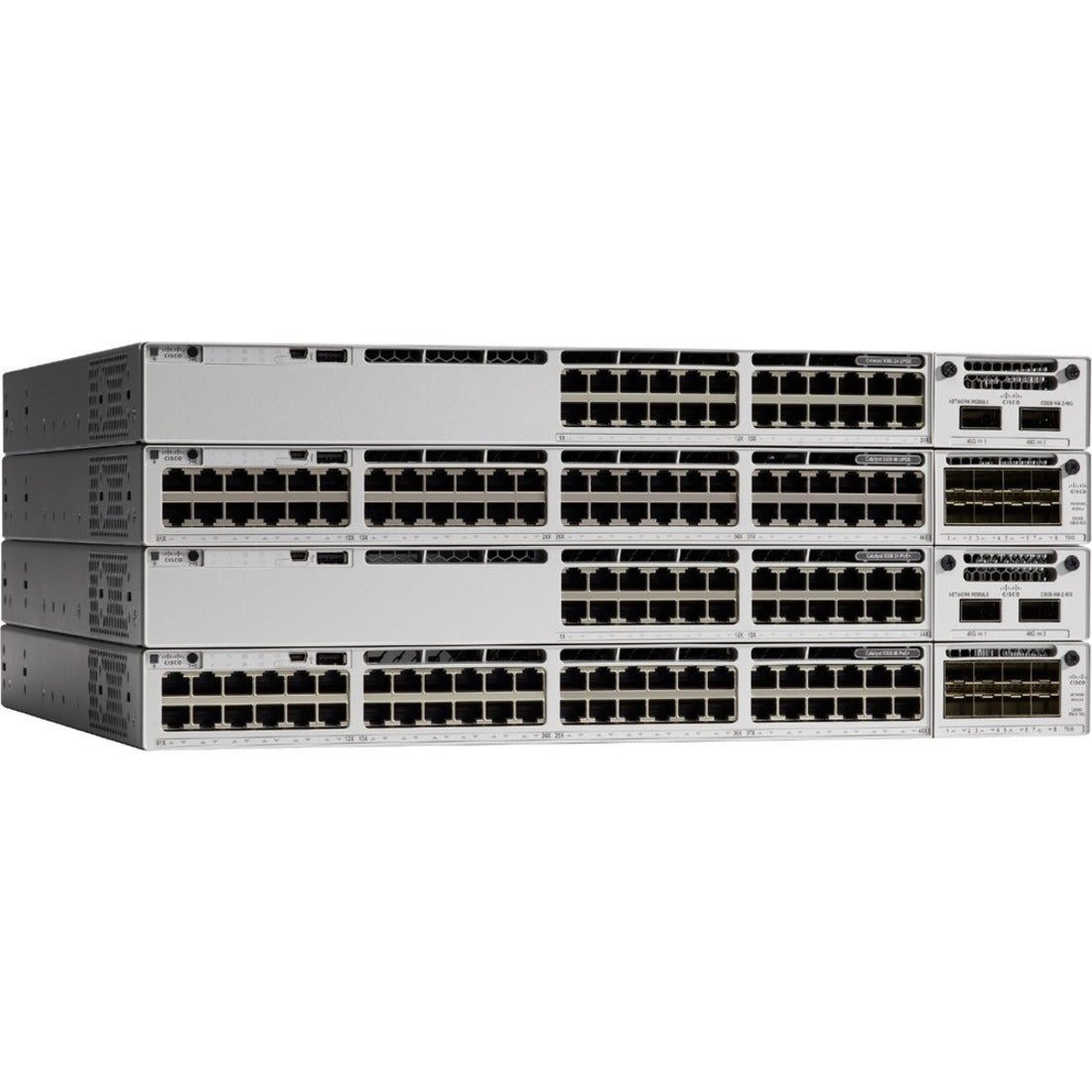

Photo is for illustration purposes only. Actual product may be different.
$20,162.82
$20,162.82
Sale Sold out
MSRP: $29,572.13
Shipping calculated at checkout.
  • 24x 25G/10G/1G SFP28 fiber ports with modular uplink support
  • 16GB RAM and 16GB flash memory for high-performance operations
  • Layer 2 and Layer 3 switching with support for RIPv2, RIPng, and OSPF
  • MACsec and AES encryption for secure data transmission
  • Managed via IPv4, IPv6, SNMP, Syslog, and DHCP protocols
  • Support for jumbo frames up to 9198 bytes and 32,000 MAC address entries

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers flexible high-speed uplink and port density with 24 SFP28 ports and modular uplinks
  • Enterprise-grade security ensured via MACsec and AES encryption standards
  • Long service life and minimal downtime supported by MTBF of 249,350 hours and limited lifetime warranty

Product Overview

The Cisco Catalyst 9300X 24-Port SFP28 Modular Uplink Switch (model C9300X-24Y-E) is an enterprise-class Layer 2 and Layer 3 managed switch with twenty-four 25G/10G/1G SFP28 ports and modular uplinks for scalable high-density fiber connectivity. It supports dynamic routing via RIPv2, RIPng, and OSPF and provides secure encryption through MACsec and AES. Designed for physical resilience in a 1RU chassis, it features 715W power availability and delivers reliability with an MTBF of over 249,000 hours. Manageable via SNMP, IPv4/IPv6, Syslog, and DHCP, and equipped with 16GB RAM and 16GB flash, the switch supports jumbo frame sizes to 9198 bytes and a MAC table of 32,000 entries. TAA compliance and adherence to IEEE networking standards bolster its enterprise-readiness. With its extensive technical capabilities and Cisco’s Limited Lifetime hardware Warranty, the Catalyst 9300X is crafted for modern data centers, campus cores, and mission-critical enterprise networks.

Specifications

Product Overview
Product Type Managed Switch
Model C9300X-24Y-E
Form Factor 1RU
Weight 16.2 lbs.
Power Requirements 100 to 240 VAC
Power Consumption 715 Watt
MTBF (Mean Time Between Failures) 249350 hours
RAM 16 GB
Flash Memory 16 GB
MAC Address Table Size 32000 entries
Layer Support Layer 2 and Layer 3
Chassis Type Fixed with Modular Uplink Slots
PoE Support No PoE

Wireless Features

Compliance & Origin
Country of Origin China / Mexico / United States
TAA Compliant Yes
Compliance Standards IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.1p, IEEE 802.3bt

Advanced Security Features
Encryption Algorithms MACsec, AES
Routing Protocol Support RIPv2, RIPng, OSPFv2/v3

Interfaces
Downlink Ports 24 x 25G/10G/1G SFP28
Uplink Ports Modular (Not Included)
Other Interfaces 1 x RJ-45 Console Port, 1 x USB 2.0 Type-A Port
Jumbo Frame Support 9198 bytes
Data Transfer Rate 10 Gbps per port (max 25 Gbps with SFP28 support)
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet
Status Indicators LED Indicators

Physical & Environmental
Width 17.5 inches
Depth 17.6 inches
Height 1.73 inches
Minimum Operating Temperature -5°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C

Cloud Management & Licensing
Remote Management Protocols SNMP, IPv4, IPv6, Syslog, DHCP
Cloud Management Cisco DNA Center (optional license required)
Software Licensing Cisco DNA Essentials, Advantage, or Premier license (software sold separately)

Service & Support
Warranty Limited Lifetime Hardware Warranty
Service Features Service Assurance
