Cisco Catalyst 9400 Series 48‑Port UPOE Line Card, C9400-LC-48U=

VENDOR: CISCO Mfg Part#: C9400-LC-48U= UPC#: 889728044066
  • The Cisco C9400-LC-48U= is a high-performance 48-port UPOE line card designed for the Catalyst 9400 Series switches. Featuring Gigabit Ethernet connectivity and compliance with multiple IEEE standards, this module offers enterprise-grade scalability and power over Ethernet capabilities in one streamlined solution. It supports Cisco IOS XE 16.6.1 or later and includes a limited lifetime warranty.
1 1

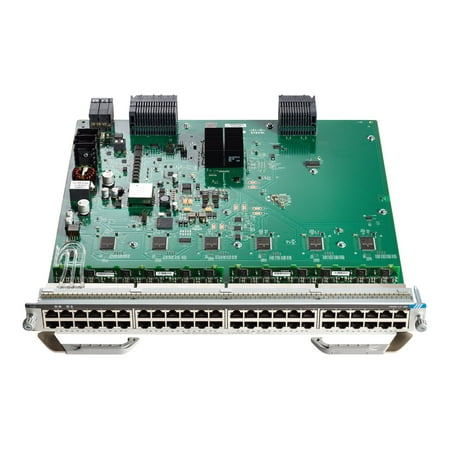

Photo is for illustration purposes only. Actual product may be different.
$7,719.31
$7,719.31
Sale Sold out
MSRP: $11,228.09
Shipping calculated at checkout.
  • 48-Port UPOE 10/100/1000 (RJ-45) line card for Catalyst 9400 Series
  • Supports data rates up to 1 Gbps per port with Gigabit Ethernet
  • Compliant with multiple IEEE networking standards including 802.3af, 802.3at, 802.3bt
  • Designed for use with Cisco IOS XE Software Release 16.6.1 or later
  • High hardware reliability with MTBF of 915,150 hours
  • Includes Limited Lifetime Warranty and TAA compliance
View full details

Key Benefits

Eye-Insights
  • Optimized for high-density enterprise switching with support for 48 Gigabit UPOE ports
  • Ensures long-term reliability with 915,150-hour MTBF and robust CISCO engineering
  • Meets government procurement standards with TAA compliance and future-ready IOS XE support

Product Overview

The Cisco Catalyst C9400-LC-48U= line card is purpose-built for the Cisco Catalyst 9400 Series switches, delivering up to 48 ports of 10/100/1000 UPOE-enabled RJ-45 connections. Engineered to meet evolving enterprise networking needs, it supports full Gigabit Ethernet throughput and complies with a broad range of IEEE standards. With wired connectivity and robust transport via Gigabit Ethernet, this line card is optimized for high-density environments.

Designed to integrate seamlessly with systems running Cisco IOS XE Software Release 16.6.1 or later, the line card ensures compatibility and delivers uniform power per port. Its durable build, along with an MTBF of 915,150 hours, underscores its reliability. A limited lifetime warranty and TAA compliance make it suitable for secure enterprise and government networks.

Specifications

Primary Information
Data Transfer Rate 1 Gbps
Networking / Ports Qty 48
Data Link Protocol Gigabit Ethernet
Product Type Line card
Network / Interface Type Ethernet
Transport Protocol Gigabit Ethernet
Connectivity Technology Wired
Networking Compliant Standards IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3an

Special Feature
COO MEXICO
TAA compliance Yes

Expansion
Interfaces & Connections 48-Port UPOE 10/100/1000 (RJ-45)

Service&Support
Service & Support Type Limited Lifetime Warranty

Dimensions&Miscellaneous
Width 14.92 Inch
Depth 14.57 Inch
Height 1.6 Inch

UNSPSC Code
UNSPSC Code 43201404

General
For Use With Cisco Catalyst 9400 Series switch
Features Supported on Cisco IOS XE Software Release 16.6.1 or later. Cisco UPOE is enabled, capable of up to 60W on all ports in the line card. Energy Efficient Ethernet 802.3az. IEEE 802.3af/at and Cisco pre-standard PoE. IEEE 802.1AE (MACsec-256) capability in hardware. Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes.
