Lenovo ThinkCentre neo 50q Gen 4 Thin Client, Celeron 7305, 8GB RAM, 256GB SSD

VENDOR: LENOVO Mfg Part#: 12M20017UX
Skip to product information
1 of 4
Photo is for illustration purposes only. Actual product may be different.
Regular price $599.00
Regular price Sale price $599.00
Sale Sold out
Shipping calculated at checkout.
  • Intel Celeron 7305 5-core processor at 1.1 GHz with 8MB Smart Cache
  • 8GB DDR4 3200MHz RAM, upgradeable to 16GB (1 slot)
  • 256GB PCIe Gen4 SSD for high-speed storage
  • Supports up to 3 monitors via HDMI and DisplayPort
  • Connectivity: Gigabit Ethernet, WiFi 6 (AX201), Bluetooth 5.1
  • Compact chassis (7.05" x 7.2" x 1.44") with Firmware TPM 2.0 security
View full details

Key Benefits

Eye-Insights
  • Efficient performance in a compact form factor ideal for space-constrained business environments
  • Fast and reliable data access with PCIe Gen4 SSD and DDR4 memory
  • Built-in security features such as Firmware TPM 2.0 and physical lock support enhance device protection

Product Overview

ThinkCentre neo 50q Gen 4, Intel Celeron 7305 (1.10GHz, 8MB), Ubuntu Linux, 8.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics, BT 5.1 or above, WiFi6 AX201 2x2, 3YR Onsite, USB, Calliope, Black-English (US)

Specifications

Primary Information

System Type Personal Computer
Model ThinkCentre neo 50q Gen 4 Thin Client
Cabinet Form Factor Thin Client
Processor / Type Celeron
Processor / Manufacturer Intel
Multi-Core Technology 5-Core
Max Turbo Frequency 1.1 GHz
Cache Memory Installed Size 8 MB
Processor / Number 7305
Cache Memory Installed Size 8 MB
Mainboard / Chipset Type Intel SoC Platform
RAM / Technology DDR4
RAM / Total Slots Qty 1
RAM / Total Installed Size 8 GB
RAM / Memory Speed 3200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 16 GB
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type PCI Express 4.0 x4
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type None
Audio Output Realtek ALC256
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.1
Video Output Type HDMI, Display Port
Graphics Controller Intel UHD Graphic
Max Monitors Supported 3
Video Output Interface Display Port; HDMI
Speakers 1 x 2W
Operating System Ubuntu Linux
Interfaces & Connections 1x USB-C 3.2 Gen 2; 1x USB 3.2 Gen 2; 1x headphone / microphone combo jack (3.5mm); 2x USB 2.0; 2x USB 3.2 Gen 2; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45)

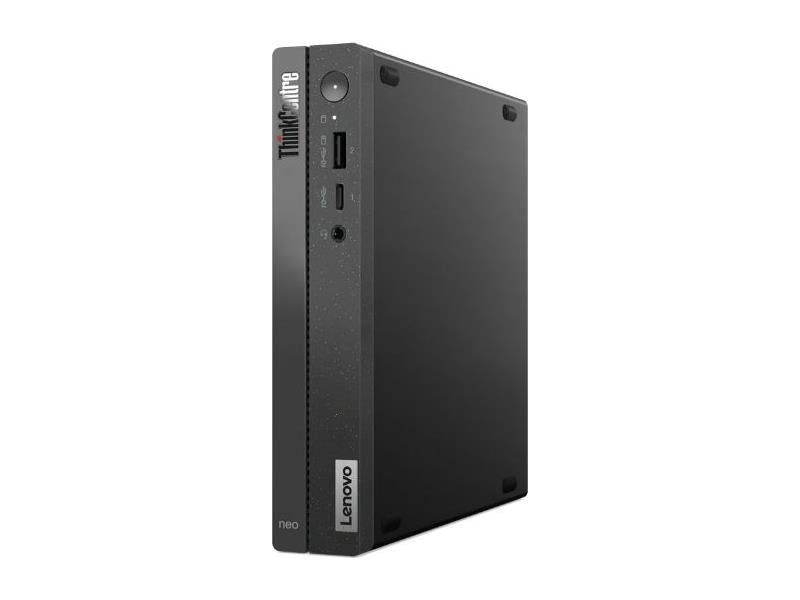

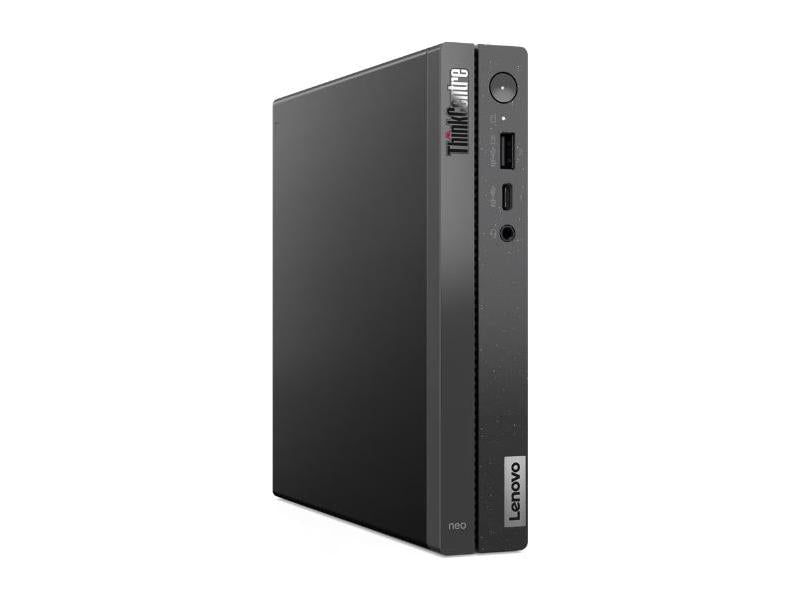

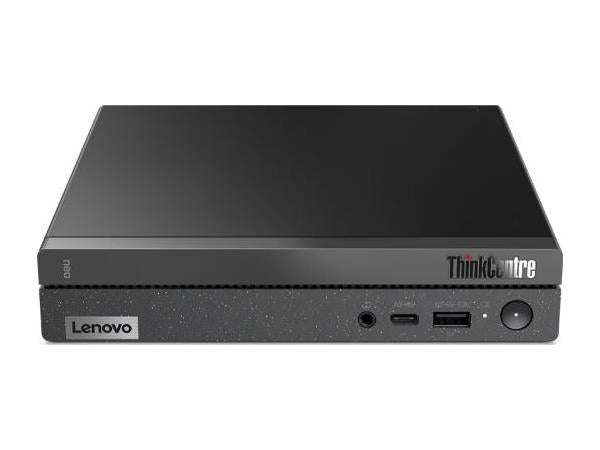

Front I/O Ports 1x USB-C 3.2 Gen 2; 1x USB 3.2 Gen 2; 1x headphone / microphone combo jack (3.5mm);

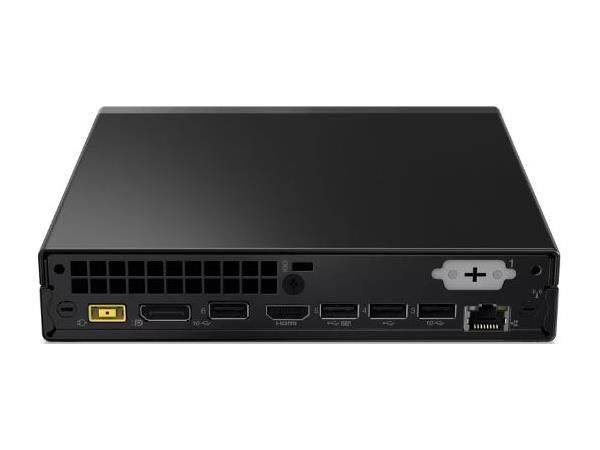

Rear I/O Ports 2x USB 2.0; 2x USB 3.2 Gen 2; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45)
Expansion Slots Total (Free) Two M.2 slots (one for WLAN, one for SSD)
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.45 lbs.
Enclosure Color Black
Service & Support Type 3YR Onsite
Security Devices Firmware TPM 2.0 integrated in SoC,Physical Locks
Processor / Clock Speed 1.1 GHz

Processor

Processor / Manufacturer Intel
Processor / Type Celeron
Multi-Core Technology 5-Core
Max Turbo Frequency 1.1 GHz
Processor / Number 7305
Cache Memory Type Smart Cache
Cache Memory Installed Size 8 MB
Processor / Clock Speed 1.1 GHz

Expansion

Interfaces & Connections 1x USB-C 3.2 Gen 2; 1x USB 3.2 Gen 2; 1x headphone / microphone combo jack (3.5mm); 2x USB 2.0; 2x USB 3.2 Gen 2; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45)
Expansion Slots Total (Free) Two M.2 slots (one for WLAN, one for SSD)
Front I/O Ports 1x USB-C 3.2 Gen 2; 1x USB 3.2 Gen 2; 1x headphone / microphone combo jack (3.5mm);
Rear I/O Ports 2x USB 2.0; 2x USB 3.2 Gen 2; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45)

Special Feature

Security Devices Firmware TPM 2.0 integrated in SoC,Physical Locks
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous

Enclosure Color Black
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.45 lbs.

Memory

Cache Memory Type Smart Cache
RAM / Total Slots Qty 1
RAM / Technology DDR4
RAM / Total Installed Size 8 GB
RAM / Memory Speed 3200 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 16 GB

Storage

Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type PCI Express 4.0 x4
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type None
Hard Drive / Capacity (2nd) None GB

Networking

Data Link Protocol Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.1

Video

Video Output Type HDMI, Display Port
Graphics Controller Intel UHD Graphic
Video Output Interface HDMI; Display Port

UNSPSC Code

UNSPSC Code 43211508
