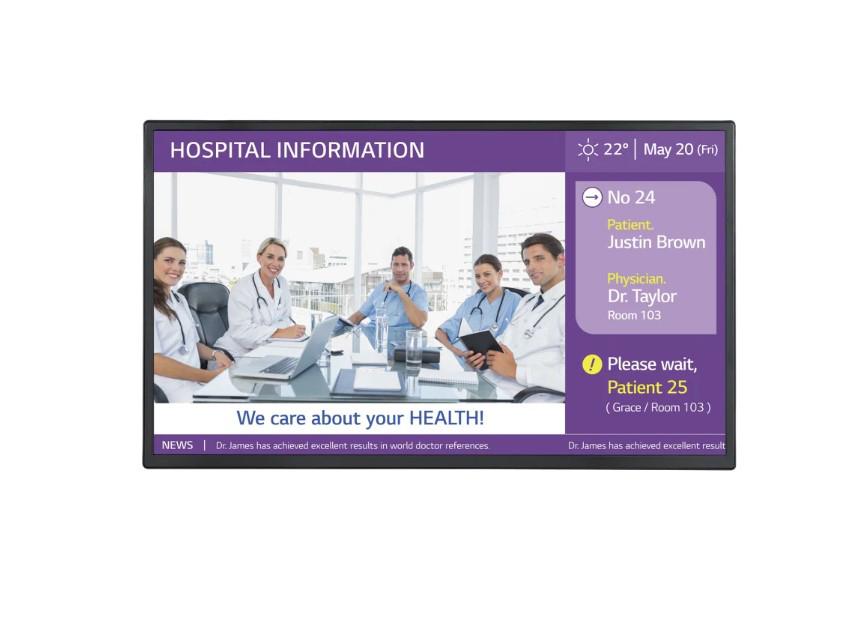

LG 32ML5K-B 32" FHD Display, 400nit, webOS6.0, HDMI, PoE++

VENDOR: LG Mfg Part#: 32ML5K-B UPC#: 195174044278
  • 32 UHD, 400NIT,HDMI(2), RS232C IN/OUT,RJ45(LAN), IR IN, USB(1),AUDIO OUT,WEBOS6.0
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,159.94
$1,159.94
Sale Sold out
MSRP: $1,266.00
Shipping calculated at checkout.
  • 32" Full HD IPS display with 1920x1080 resolution and 400-nit brightness in AC mode
  • Dual HDMI inputs with HDCP 2.2/1.4, RJ45 LAN (PoE++), RS232C, USB 2.0, and IR In support
  • LG webOS 6.0 platform for intuitive GUI and app development tools
  • Wide 178° viewing angle with 95% BT709 color gamut and 16.7 million colors
  • Integrated speakers (2 x 3W) and audio out for basic sound playback
  • Conformal coating for environmental protection from dust and moisture
View full details

Key Benefits

Eye-Insights
  • Provides versatile deployment with both 120V AC and PoE++ power options, reducing cabling needs in enterprise installations
  • Elevates digital signage and commercial display experiences with webOS 6.0 flexible content management tools
  • Industrial-grade reliability features such as conformal coating allow usage in challenging environments like factories or transit stations

Product Overview

32Inch, 400nit, IPSPanel Technology, 1920x1080 (FHD), AC Mode 400nit(Typ.) PoE Mode 200nit (Typ.), Response Time9ms (G to G),

Specifications

Primary Information
Model 32ML5K
Max Resolution 1920 x 1080
Display Diagonal Size 32 Inch
Display / Response Time 9 Ms
Brightness AC Mode 400nit(Typ.) PoE Mode 200nit (Typ.)
Image Aspect Ratio 16:9
Display / Refresh Rate 60 Hz
Features LG webOS platform enhances user convenience with intuitive GUI and simple app development tools. In various places the ML5K series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting ML5K series from salt, dust, iron powder, humidity, etc.
Display Type LED Backlight
Display Format FHD
Display Technology IPS
Flat / Curved Flat
Display / Color Support 16.7 Million Colors
Image Contrast Ratio 1200:1
Dynamic Contrast Ratio 1000000:1
Viewing Angle 178/178
Color Gamut BT709 95%
HDR Capable None
Network Connectivity Wi-Fi; LAN
Audio Output Speaker
Speakers 2 x 3W
Interfaces HDMI (2, HDMI1/HDMI2 : HDCP 2.2/1.4), RS232C IN (1, 4pin Phone-jack), RJ45(LAN) (1, PoE++), IR IN, USB (USB2.0 Type A(1))
Video Interfaces HDMI
Power Consumption Operational 55 Watt
Power Consumption Sleeping Not Included
Power Consumption SDR (On mode) Not Included
Power Consumption HDR (On mode) Not Included
Power Consumption (Off Mode) 1W
Power / Voltage Required 120V~, 50/60Hz or PoE++ : 41.1-57V
Power Consumption Standby Not Included
Color Black
Adjustable Display Tilt None
Adjustable Display Height None
Adjustable Display Swivel None
Adjustable Display Pivot None
Stand None
VESA Mount Compatible 200 x 200 mm
Width 729.4 Mm
Depth 428.9 Mm
Height 55.5 Mm
Weight 5.7 Kg
Min Operating Temperature 0 C
Max Operating Temperature 40 C
Humidity Range Operating 10 % to 80 %

UNSPSC Code
UNSPSC Code 43211902

Power
Power / Voltage Required 120V~, 50/60Hz or PoE++ : 41.1-57V
Power Consumption Operational 55 Watt
Power Consumption Sleeping Not Included
Power Consumption (Off Mode) 1W
Power Consumption HDR (On mode) Not Included
Power Consumption SDR (On mode) Not Included

Special Feature
COO MEXICO
TAA compliance Yes
Adjustable Display Tilt None
Adjustable Display Height None
Adjustable Display Swivel None
Adjustable Display Pivot None

Display
Brightness AC Mode 400nit(Typ.) PoE Mode 200nit (Typ.)
Display Diagonal Size 32 Inch
Image Aspect Ratio 16:9
Color Gamut BT709 95%
Display / Color Support 16.7 Million Colors
Display Type LED Backlight
Dynamic Contrast Ratio 1000000:1
Flat / Curved Flat
HDR Capable None
Flat / Curved Flat
