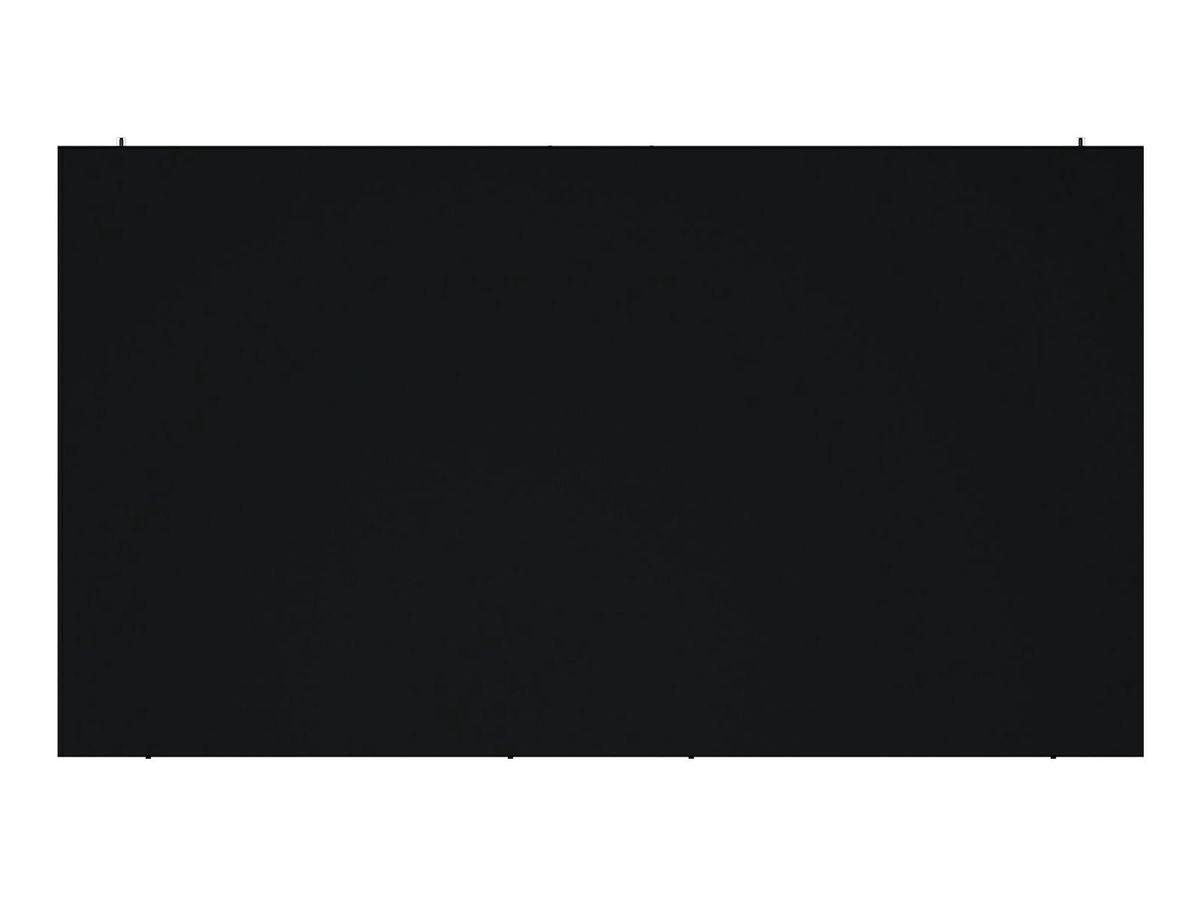

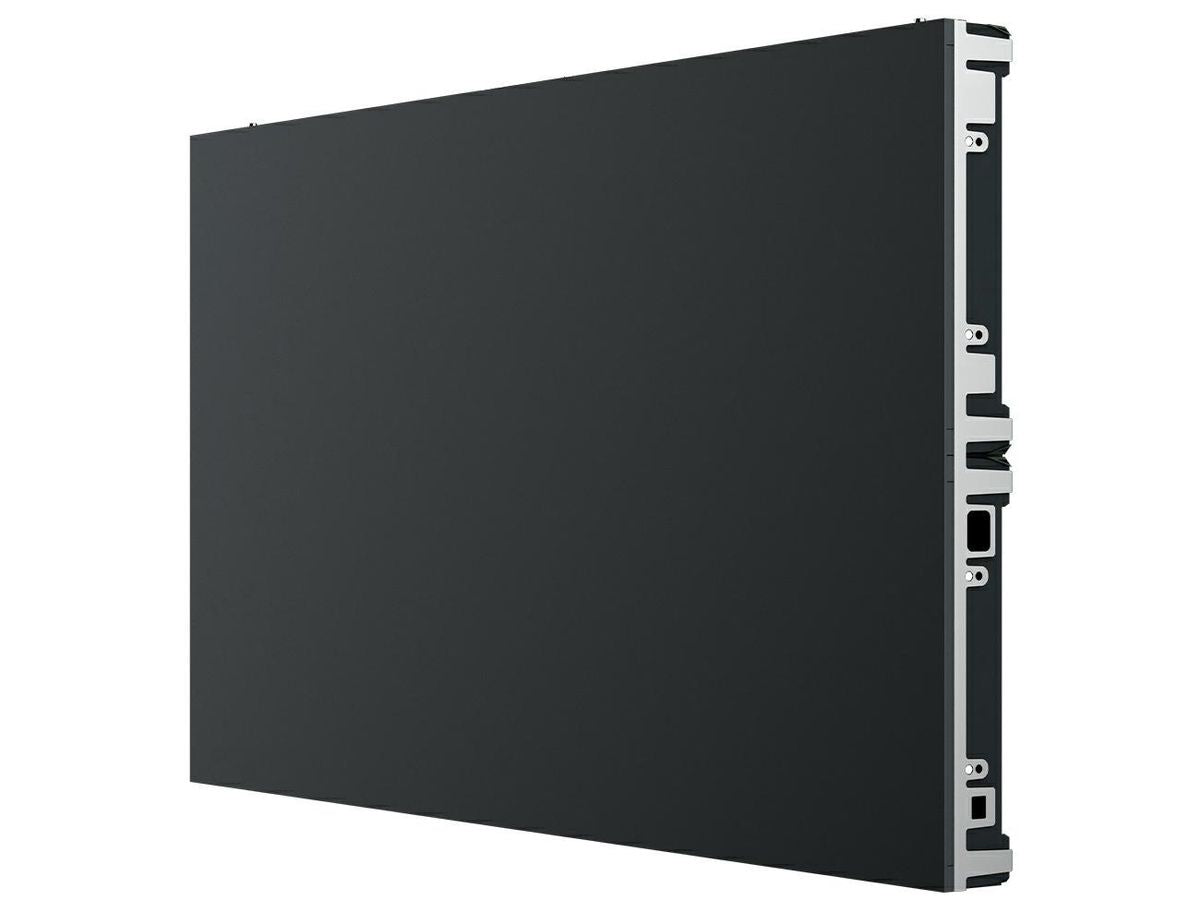

LG LSBF015 DVLED Display, 1.56mm Pixel, 600nit, TAA, 1200x675 mm

VENDOR: LG Mfg Part#: LSBF015-GDR UPC#: 195174076095
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
1 4
Photo is for illustration purposes only. Actual product may be different.
$5,767.14
$5,767.14
Sale Sold out
MSRP: $7,208.00
Shipping calculated at checkout.
  • 1.56 mm pixel pitch for ultra-fine image resolution
  • 600 nits max brightness (after calibration)
  • 3840 Hz refresh rate for smooth visual playback
  • 5000:1 image contrast ratio for deep blacks and vivid colors
  • TAA compliant and manufactured in Slovakia
  • Power range: 100–240V, max cabinet power 428W
View full details

Key Benefits

Eye-Insights
  • Ideal for government and enterprise use with full TAA compliance.
  • Supports modular and custom installations with 45° right-cut miter design.
  • Delivers exceptional visual clarity and performance with 1.56 mm pixel pitch and 3840 Hz refresh.

Product Overview

LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Primary Information
Model LSBF015
Display Type LED Backlight
Flat / Curved Flat
Display / Refresh Rate 3840 Hz
Dot Pitch / Pixel Pitch 1.56 Mm
Image Contrast Ratio 5000:1
Brightness Max. Brightness (After Calibration) 600
Power Consumption Operational Power Consumption (W/Cabinet, Max.) 428 Power Consumption (W/Cabinet, Avg.) 182 Power Consumption (W/m, Max.) 530 Watt
Power / Voltage Required 100 to 240
Width 1200 Mm
Depth 675 Mm
Height 72 Mm
Weight 23 Kg
Min Operating Temperature -20C
Max Operating Temperature 40C
Humidity Range Operating 10-80% RH

Power
Power / Voltage Required 100 to 240
Power Consumption Operational Power Consumption (W/Cabinet, Max.) 428 Power Consumption (W/Cabinet, Avg.) 182 Power Consumption (W/m, Max.) 530 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness Max. Brightness (After Calibration) 600
Display Type LED Backlight
Dot Pitch / Pixel Pitch 1.56 Mm
Flat / Curved Flat
Flat / Curved Flat

Special Feature
COO SLOVAKIA
TAA compliance Yes
