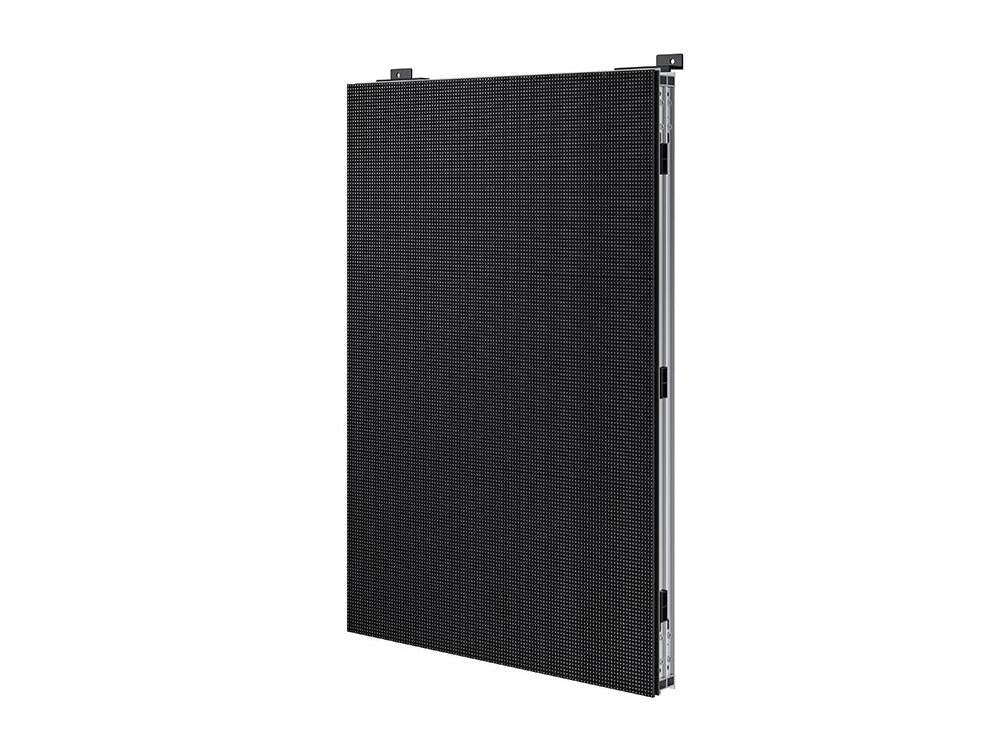

Samsung XHB-EP16FLAT2X3 LED Cabinet Display, Flat, 7000 nits, HDR

VENDOR: SAMSUNG Mfg Part#: LH160XHBCAE UPC#: 8806094571516
  • The Samsung XHB-EP16FLAT2X3 is a high-performance LED display cabinet engineered for impactful digital signage in demanding environments. Featuring an impressive 7000 nits brightness and 281 trillion color support, this unit delivers outstanding clarity and vibrant visuals. Designed to operate in extreme temperatures with a robust build, this cabinet ensures long-lasting performance in outdoor or large-format display setups.
1 1
Photo is for illustration purposes only. Actual product may be different.
$1,539.77
$1,539.77
Sale Sold out
MSRP: $2,066.18
Shipping calculated at checkout.
  • Display Type: LED Cabinet
  • Brightness: 7000 nits, ideal for high ambient light environments
  • Color Support: 281 trillion colors for rich, lifelike imagery
  • Refresh Rate: Ultra-smooth 7680 Hz for flicker-free visuals
  • Operating Temperature Range: -40°C to 55°C for extreme environments
  • HDR Capable: Expanded contrast and dynamic visuals
View full details

Key Benefits

Eye-Insights
  • Superior brightness and color fidelity ensure visibility and impact in daylight or harsh lighting.
  • Extreme operating temperature tolerance (-40°C to 55°C) increases deployment flexibility for indoor and outdoor signage.
  • TAA compliance makes it suitable for government or regulated sector contracts.

Product Overview

The Samsung XHB-EP16FLAT2X3, model LH160XHBCAE, is a professional-grade LED display cabinet built to excel in high-impact digital signage deployments. Its flat-panel design ensures a seamless, tileable configuration, ideal for creating expansive, continuous video walls. A peak brightness of 7000 nits and a 7000:1 contrast ratio make the panel highly visible even in direct sunlight. The panel supports a staggering 281 trillion colors and features a high 7680 Hz refresh rate, ensuring flicker-free motion in venues such as retail or public spaces.

Engineered for durability, the cabinet operates efficiently at 85 watts and supports 100~240 VAC input. Its wide thermal tolerance from -40°C to 55°C and TAA compliance make it suitable for mission-critical installations. Measuring 689.9 mm x 1035.4 mm and weighing 60.4 lbs., it offers deployment flexibility. While lacking integrated networking and stand, it provides ample HDR support and visual intensity for professional use cases.

Specifications

Primary Information
Model LH160XHBCAE
Display Type LED Cabinet
Flat / Curved Flat
Max Resolution 42 x 63
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 16.43 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/115
HDR Capable Yes
Picture Enhancements None
Network Connectivity None
Power Consumption Operational 85 Watt
Power / Voltage Required 100~240 VAC
Stand None
Width 689.9 Mm
Depth 100.9 Mm
Height 1035.4 Mm
Weight 60.4 lbs.
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100~240 VAC
Power Consumption Operational 85 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Cabinet
Dot Pitch / Pixel Pitch 16.43 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
