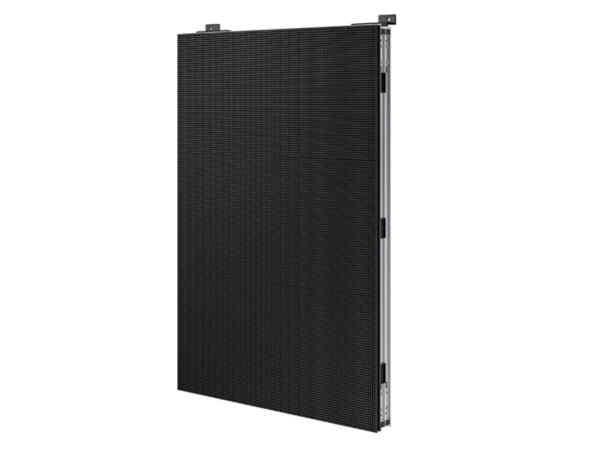

Samsung XHB-EP8FLAT2X3 LED Display, 8.21mm Pixel Pitch, 7000 nits

VENDOR: SAMSUNG Mfg Part#: LH080XHBCAE UPC#: 8806094560084
  • The Samsung XHB-EP8FLAT2X3 is a professional-grade outdoor LED display, engineered for optimal visibility in diverse environments. Featuring a stunning 7000 nits brightness and wide color gamut supporting 281 trillion colors, it ensures vibrant, clear visuals under any lighting conditions. This rugged solution is ideal for demanding digital signage applications.
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,007.50
$2,007.50
Sale Sold out
MSRP: $2,693.79
Shipping calculated at checkout.
  • LED Display with flat panel design for outdoor use
  • 7000 nits maximum brightness for optimal sunlight visibility
  • 281 trillion color support for high-fidelity visual output
  • 8.21 mm pixel pitch ideal for medium/long viewing distance
  • Wide 160°/117° horizontal/vertical viewing angles
  • Operating temperature range of -40°C to 50°C for harsh environments
View full details

Key Benefits

Eye-Insights
  • Exceptional 7000 nits brightness ensures clear outdoor visibility in daylight and adverse weather.
  • TAA compliance and Mexican manufacturing allow deployment in government and enterprise settings.
  • Engineered for extreme temperatures (-40°C to 50°C), ensuring durability and uptime in outdoor environments.

Product Overview

The Samsung XHB-EP8FLAT2X3 LED display (model LH080XHBCAE) is purpose-built for high-impact outdoor digital signage. Its key visual attributes include a remarkable 7000 nits brightness rating and a contrast ratio of 7000:1 for sharp image quality. The flat-panel LED construction offers a wide viewing angle of 160° horizontal and 117° vertical. Supporting an exceptional 281 trillion colors, the display delivers eye-catching, true-to-life imagery. The 8.21 mm pixel pitch makes it ideal for medium- to long-range viewing applications. With 200W power consumption and support for 100–240V AC, it fits a broad range of environments. Designed to operate between -40°C to 50°C, it performs reliably in challenging outdoor settings. Measuring 689.9 mm x 92 mm x 1035.4 mm and weighing 23.2 kg, it is both compact and robust. TAA compliance and a country of origin in Mexico position it well for enterprise and government digital signage deployments.

Specifications

Primary Information
Model LH080XHBCAE
Display Type LED Display
Flat / Curved Flat
Max Resolution 84 x 126
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 8.21 Mm
Image Contrast Ratio 7000:1
Brightness 7000 nits
Viewing Angle 160/117
HDR Capable None
Picture Enhancements None
Power Consumption Operational 200 Watt
Power / Voltage Required 100-240 VAC, 50/60 Hz
Stand None
Width 689.9 Mm
Depth 92 Mm
Height 1035.4 Mm
Weight 23.2 Kg
Features Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether its sunny or stormy.
Min Operating Temperature -40 Celsius
Max Operating Temperature 50 Celsius

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 200 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 7000 nits
Display / Color Support 281 Trillion
Display Type LED Display
Dot Pitch / Pixel Pitch 8.21 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
