Belkin 2-Port Dual Head DP/HDMI Secure Desktop KVM Switch PP4.0

VENDOR: BELKIN Mfg Part#: F1DN202KVM-UN-4 UPC#: 745883800940
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,230.00
$1,230.00
Sale Sold out
MSRP: $1,566.00
Shipping calculated at checkout.
  • 2-port secure desktop KVM switch with DisplayPort and HDMI dual-head support
  • Supports up to 4K@60Hz resolution for high-fidelity display performance
  • Designed for NIAP Protection Profile 4.0 compliance and CAC integration
  • Customizable port coloring and naming for intuitive switching
  • Desktop form factor with wired connectivity
  • TAA compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Certified to meet NIAP Protection Profile 4.0 for secure peripheral sharing devices, ensuring trusted performance in classified environments
  • Dual-head DisplayPort and HDMI support enables seamless operation across multiple high-resolution monitors
  • Customizable user interface with port color coding and naming reduces operational errors and improves user efficiency

Product Overview

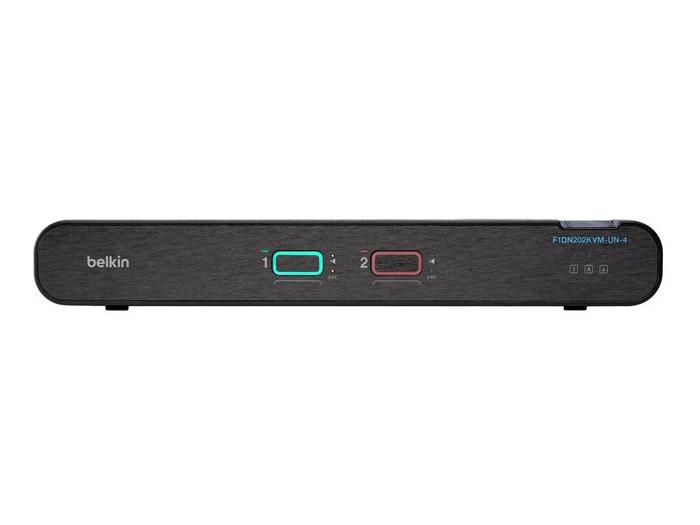

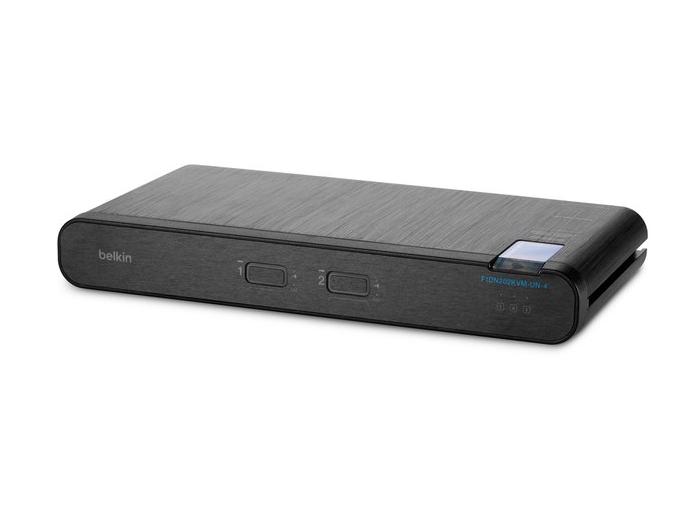

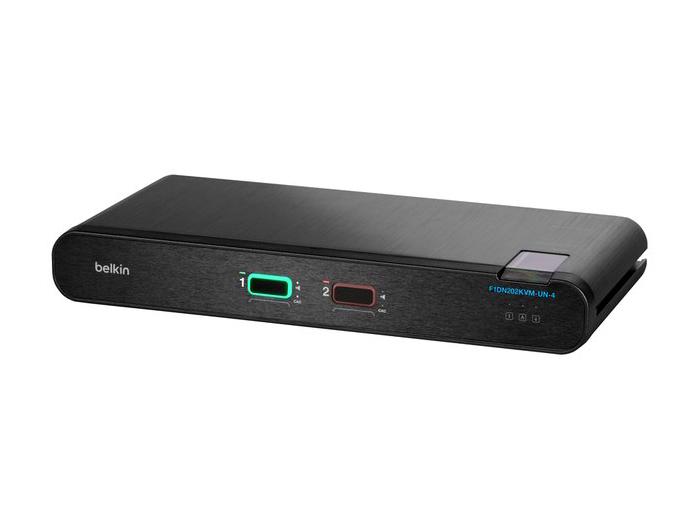

The Belkin F1DN202KVM-UN-4 is a 2-port secure KVM switch supporting dual-head DisplayPort and HDMI connections, delivering 4K@60Hz video clarity in high-assurance computing setups. Designed to meet NIAP PP 4.0 compliance and equipped with CAC support, it is ideal for mission-critical environments. The unit features customizable port labeling and coloring to prevent user error, and is compatible with the Belkin KVM Remote Control with Integrated Keyboard for enhanced productivity. Built in the United States and TAA compliant, it ensures both regulatory adherence and hardware reliability.

Specifications

Product Overview
Product Type Secure Desktop KVM Switch
Model F1DN202KVM-UN-4
Manufacturer Belkin
Form Factor Desktop
Power Requirements External power adapter (12V DC, typically included)
Weight Approximately 2.2 lbs (1.0 kg)

Wireless Features

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
NIAP PP4.0 Compliant Yes
Certifications Common Criteria, CE, FCC Class A
RoHS Compliant Yes

Advanced Security Features
Secure Switching Type NIAP PP4.0-Compliant Secure KVM
Data Path Isolation Unidirectional data flow with hardware-based security
USB Port Protection No USB Peripheral Sharing; only keyboard/mouse allowed
CAC (smart card) Support Yes, with dedicated port
Tamper Evident Seals Yes
Always-On Filtering Keyboard and mouse data filtered via secure firmware
No Shared RAM Yes, ensuring no data leakage between ports

Interfaces
Host Video Interfaces DisplayPort, HDMI
Video Outputs (per computer) 2 x DisplayPort or HDMI per system
Number of USB Ports 2 x USB (for keyboard and mouse input)

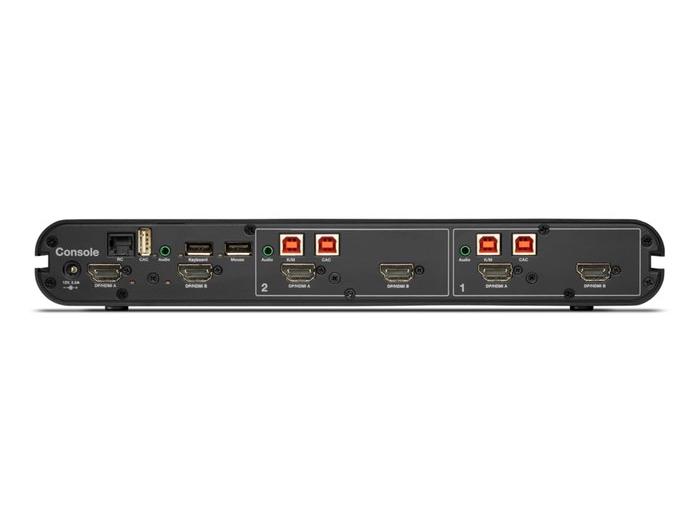

Console Ports 2 x DisplayPort or HDMI, 2 x USB Type-A, 1 x 3.5mm audio, 1 x CAC
Number of Computers Supported 2
Max Supported Resolution 4096 x 2160 @ 60Hz (4K UHD)
Connection Type Wired

Physical & Environmental
Dimensions 8.4 in x 5.9 in x 2.0 in (213 mm x 150 mm x 51 mm)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 140°F (-20°C to 60°C)
Relative Humidity 0% to 80% non-condensing
Cooling Fanless (passive cooling for silent operation)

Cloud Management & Licensing
Remote Management Compatible with Belkin KVM Remote Control with Integrated Keyboard
Local Management Interface Front panel push buttons with port labeling
Licensing Required No licensing required for standard operation
