Belkin 2-Port Dual Monitor Secure Desktop KVM Switch, DP/HDMI, PP4.0

VENDOR: BELKIN Mfg Part#: F1DN202KVM-UNN4 UPC#: 745883800957
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,229.00
$1,229.00
Sale Sold out
MSRP: $1,424.00
Shipping calculated at checkout.
  • Supports up to two connected computers for secure desktop switching
  • Dual monitor support with DisplayPort and HDMI interfaces
  • Supports resolutions up to 4K at 60Hz for high-fidelity video output
  • Designed for NIAP Protection Profile PSD 4.0 compliance

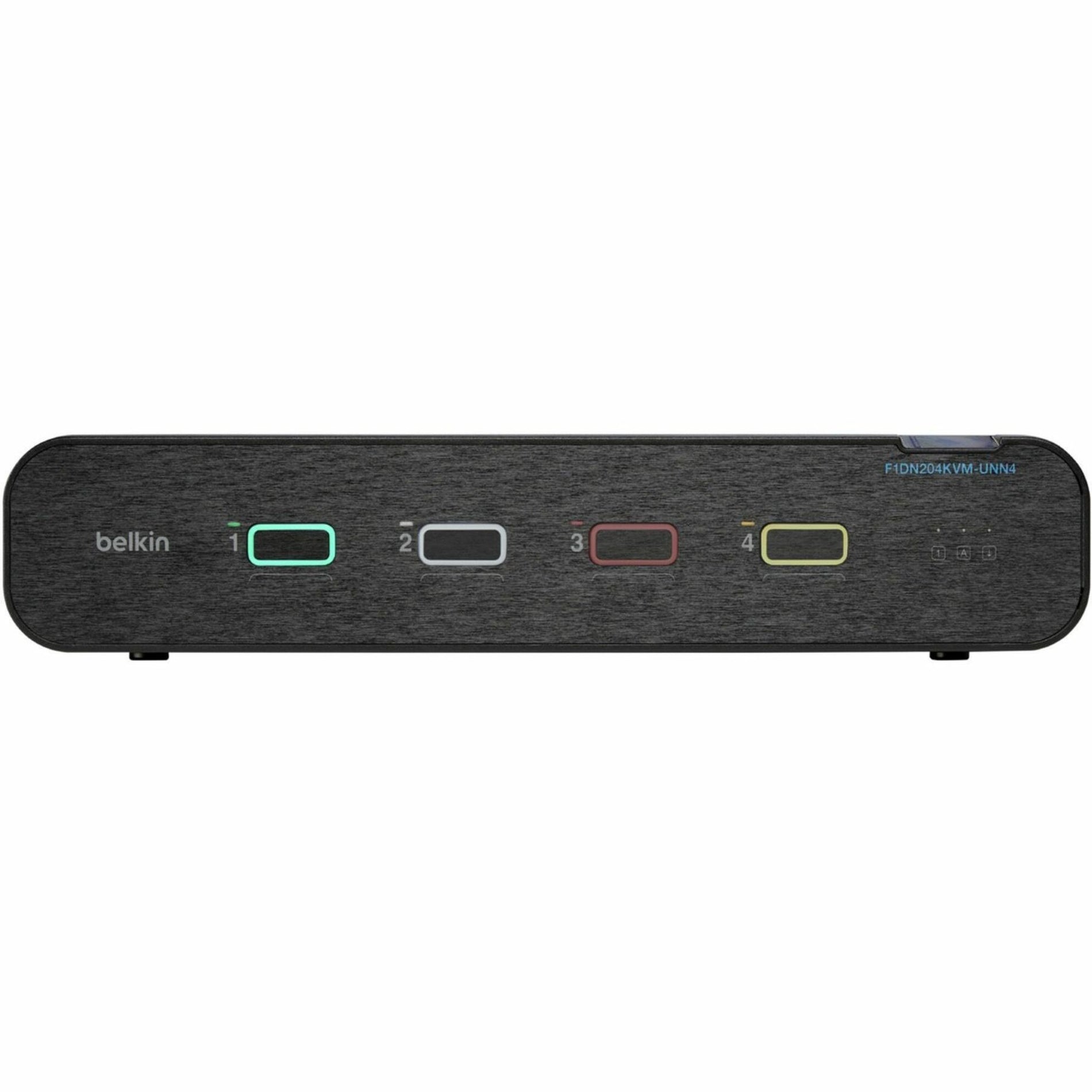

  • Customizable front panel port naming and color coding
  • TAA-compliant and manufactured in the United States

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for ultra-secure switching between systems with NIAP Protection Profile 4.0 compliance, ideal for regulated environments.
  • Supports dual-display setups via DisplayPort and HDMI with 4K@60Hz resolution, ensuring optimal productivity and clarity.
  • TAA-compliant and made in the USA, making it suitable for federal procurement and government IT infrastructures.

Product Overview

The Belkin F1DN202KVM-UNN4 Secure Universal 2-Port KVM Switch is engineered to support secure desktop environments demanding high video performance and structured data separation. Compliant with NIAP Protection Profile 4.0, this device enables users to switch securely between two computers using dual head DisplayPort and HDMI monitor configurations. It maintains video fidelity with support for resolutions up to 4K at 60Hz while adhering to strict security standards set for government and defense applications.

Optimized for multi-display desktops, this secure KVM switch features a desktop form factor with integrated wired connectivity and offers intuitive usability enhancements. Customizable port naming and color coding on the front panel make system identification faster and help reduce switching errors. User workflow is further improved when paired with optional Belkin remote controls that mirror these indicators. Although CAC support is not included in this variant, this TAA-compliant model is manufactured in the United States, indicating suitability for federally regulated environments.

Ideal for mission-critical workstations that require clean segmentation of data sources, the Belkin 2-Port KVM Switch is a robust and reliable infrastructure solution. From IT management to secured military access, this KVM solution enhances productivity and system integrity through clear display mapping and secure isolation between connected systems.

Specifications

Product Overview
Device Type KVM Switch
Model F1DN202KVM-UNN4
Form Factor Desktop
Number of Computers Supported 2
Dual Monitor Support Yes
Power Requirements External power supply (12V DC, 2.5A typical)
Power Consumption Maximum 18W
Video Performance Up to 4K @ 60Hz
Display Mapping Supports clear display mapping per system

Physical & Environmental
Dimensions (W x D x H) 7.95 x 4.13 x 2.36 in (202 x 105 x 60 mm)
Weight 3.2 lbs (1.45 kg)
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Operating Humidity 0% to 80% (non-condensing)
Storage Humidity 0% to 95% (non-condensing)

Cloud Management & Licensing
Remote Management Support Supported via optional Belkin Remote Control
Management Interface No GUI/Web Portal; local-only hardware switching
Firmware Upgradable No (firmware locked for security compliance)
Custom Port Naming Yes
Custom Port Coloring Yes

Interfaces
Host Computer Ports 2 x DisplayPort, 2 x HDMI, 2 x USB Type-B
Console Ports 2 x DisplayPort, 2 x HDMI, 1 x USB Keyboard, 1 x USB Mouse, 1 x Audio Out
Video Interfaces DisplayPort, HDMI
Peripheral Interfaces USB Type-B, USB Type-A
Audio Support Yes (3.5mm stereo audio out)
USB Hub No integrated USB hub
Video Resolution Support 3840 x 2160 @ 60Hz

Compliance & Origin
TAA Compliant Yes
Country of Origin United States
NIAP Protection Profile PP 4.0
Certifications FCC, CE, RoHS
UL Listed Yes

Advanced Security Features
Common Access Card (CAC) Support No
Secure Switching Technology Yes – Hardware-based data isolation
Unidirectional Data Paths Yes
Anti-Tamper Protection Yes – Physical seals and intrusion detection
Keyboard and Mouse Emulation Always-On Emulation
Buffer Overflow Protection Yes
Channel Isolation Air-gap separation; no data leakage
