Products Memory, Storage and Components Belkin 4-Port DP/HDMI Secur...

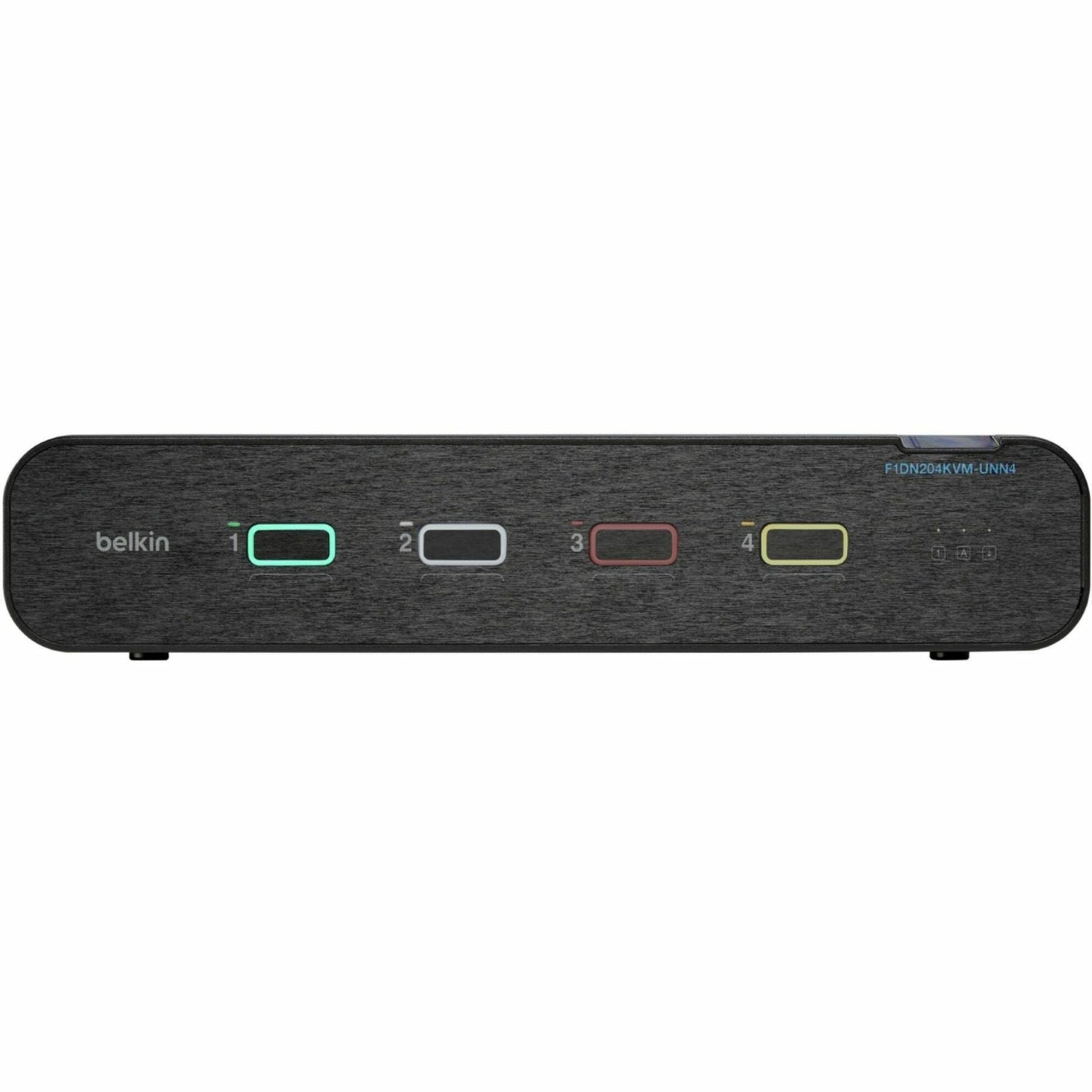

Belkin 4-Port DP/HDMI Secure Desktop KVM Switch PP4.0

VENDOR: BELKIN Mfg Part#: F1DN104KVM-UN-4 UPC#: 745883785841
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,406.00
$1,406.00
Sale Sold out
MSRP: $1,791.00
Shipping calculated at checkout.
  • 4-port secure desktop KVM switch for DisplayPort and HDMI video
  • Supports CAC (Common Access Card) functionality
  • TAA-compliant (Trade Agreements Act compliant)
  • Manufactured in the United States
  • Belkin PP4.0 series design for high-assurance environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports both DP and HDMI video, offering flexibility for mixed-display environments.
  • TAA compliance and US-made origin meet federal procurement and security standards.
  • Integrated CAC support streamlines secure authentication for high-assurance computing setups.

Product Overview

The Belkin 4-Port Secure Desktop KVM Switch PP4.0 (F1DN104KVM-UN-4) enables secure switching between systems using DisplayPort and HDMI interfaces. Engineered for high-security environments, it ensures physical data isolation and is TAA-compliant, making it suitable for deployment in government or defense sectors. With common access card (CAC) compatibility and US-origin manufacturing, the switch upholds key criteria for use in sensitive installations. While detailed video specifications and switching performance weren't provided, the unit consistently supports multi-system control under strict data security standards.

Specifications

Product Overview
Product Type Secure Desktop KVM Switch
Form Factor Desktop
Number of Computers Controlled 4
Number of Displays Supported 1 per computer
Supported Video Interfaces DisplayPort and HDMI
CAC Support Yes
TAA Compliant Yes
Weight 1.45 kg (3.2 lbs)
Power Requirements 12V DC, 3.3A
Power Supply Type External AC Adapter

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin United States
Compliance Standards TAA, NIAP PP 4.0 Compliant
Certifications FCC Part 15 Class B, UL, CE, RCM

Advanced Security Features
Secure Keyboard/Mouse Switching Yes, via dedicated processor channels
Unidirectional Data Paths Yes
Buffer Overflow Protection Yes
Tamper Evident Seals Yes
Always-on Intrusion Detection Yes
NIAP Protection Profile PP4.0
Smart Card (CAC) Isolation Yes

Interfaces
Computer Ports 4 x HDMI/DisplayPort
Keyboard/Mouse Ports 4 x USB Type A (per computer), 2 x USB front-facing console
Supported Resolutions Up to 3840 x 2160 at 30Hz
Console Video Output HDMI & DisplayPort
USB CAC Connection Yes, USB port for Smart Card Reader
Audio Support No
EDID Support Yes, Fixed EDID

Physical & Environmental
Dimensions 26.3 x 14.6 x 4.4 cm (10.35 x 5.75 x 1.73 in)
Form Factor Material Metal enclosure
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% non-condensing
Cooling Passive cooling
Color Black

Cloud Management & Licensing
Cloud Management No
Management Interface Physical front panel buttons
Licensing Required No
