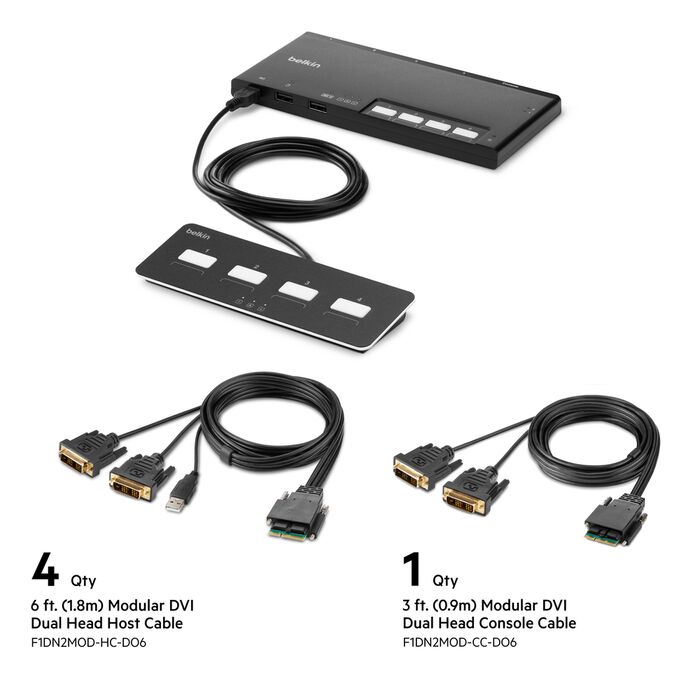

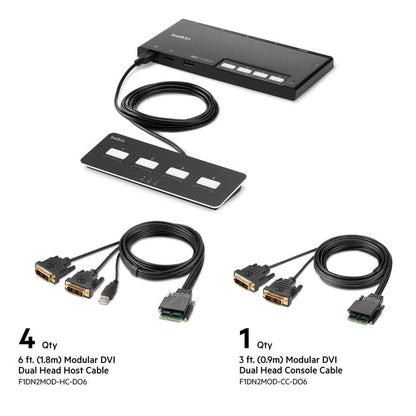

Belkin 4-Port Dual Head DVI Modular Secure KVM Switch F1DN204MOD-DD-4

VENDOR: BELKIN Mfg Part#: F1DN204MOD-DD-4 UPC#: 745883789634
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,223.00
$1,223.00
Sale Sold out
MSRP: $1,558.00
Shipping calculated at checkout.
  • 4-port desktop KVM switch with dual-head DVI-D support
  • Designed for NIAP PP PSD 4.0 cybersecurity compliance
  • Supports 4K resolution (3840x2160) at 30Hz refresh rate
  • Includes tamper-evident packaging for secure transport
  • TAA compliant and manufactured in the United States
  • Remote control functionality for enhanced access control

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for secure government or military environments requiring NIAP PP PSD 4.0 compliance
  • Supports high-definition video with 4K resolution at 30Hz, ensuring excellent visual clarity
  • TAA compliant and made in the USA, simplifying procurement in regulated sectors

Product Overview

The Belkin F1DN204MOD-DD-4 is a modular 4-port secure KVM switch engineered for high-security workstations and classified environments. With dual-monitor DVI-D support and the ability to control up to four systems through a single user console, it provides both operational efficiency and mission-critical isolation. Designed to be compliant with NIAP Protection Profile for Peripheral Sharing Devices (PP PSD) 4.0, it meets stringent cybersecurity standards required by government and defense agencies.

This switch supports video resolutions up to 3840x2160 at 30Hz, ensuring crisp image clarity for high-resolution displays. It includes tamper-evident packaging and is manufactured in the United States, with full TAA compliance for procurement flexibility. The modular base architecture allows for source isolations and host interface compatibility tailored to secure workflows. Remote-control capability adds an extra layer of operational convenience while keeping security uncompromised.

Specifications

Product Overview
Device Type KVM Switch
Form Factor Desktop
Model F1DN204MOD-DD-4
Number of Computers 4
Monitors Supported 2 (Dual-Head)
Video Resolution Supported 3840 x 2160 @ 30 Hz
Modular Architecture Yes
Remote Control Capability Yes
Power Supply External power adapter (included)
Power Consumption 12V DC, max 20W

Advanced Security Features
Security Compliance NIAP Protection Profile for Peripheral Sharing Device (PP PSD) 4.0
Tamper Resistance Tamper-evident packaging, tamper-proof hardware
Air-Gap Isolation Yes
Data Leakage Prevention Unidirectional keyboard and mouse data flow
USB Device Filtering Yes, USB peripheral filter ensures only keyboard/mouse input
Keyboard Filtering Yes, secure keystroke processing
Chassis Intrusion Detection Yes

Wireless Features
Wireless Support No wireless connectivity

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications FCC Class A, CE, UL, NIAP PP 4.0
RoHS Compliance Yes
Packaging Security Tamper-evident sealed packaging
Product UPC 745883789634

Interfaces
Interface Types DVI-D, USB, Audio (3.5 mm)

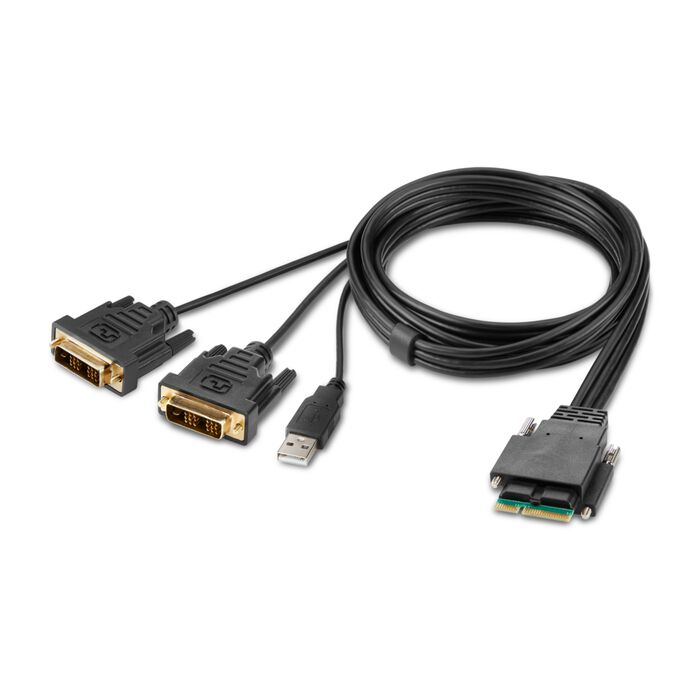

Host Ports Modular DVI-D and USB
Console Ports DVI-D x2, USB Keyboard, USB Mouse, Audio
USB Ports 2 x USB Type A (console), 1 x USB Type B per channel (host)
Audio Support Yes (unidirectional stereo audio)
Port Selection Manual push-button
Maximum Video Bandwidth 300 MHz
Extended Display Identification Data (EDID) EDID emulation per channel

Cloud Management & Licensing

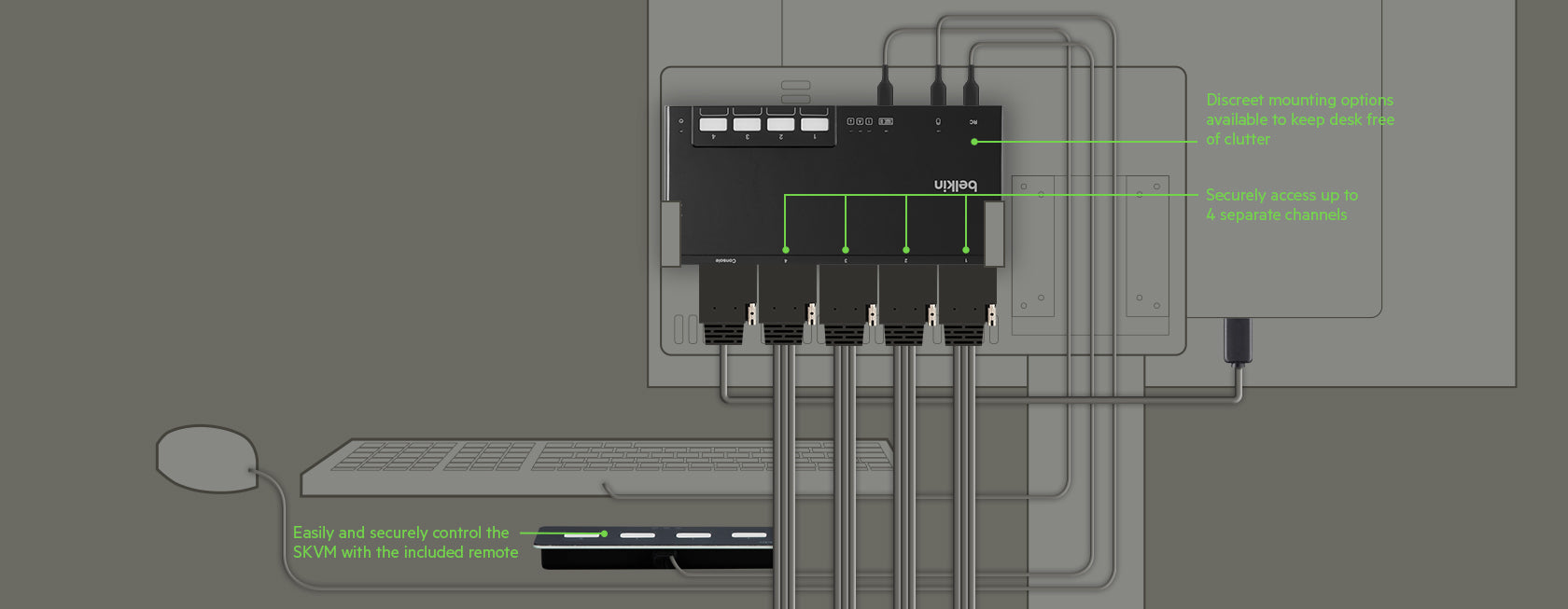

Remote Management Yes, remote-control module supported
Management Interface External remote control accessory port
Licensing Required No

Physical & Environmental
Width 7.1 in (180 mm)
Depth 4.5 in (115 mm)
Height 2.0 in (50 mm)
Weight 3.62 lbs (1.64 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -4°F to 122°F (-20°C to 50°C)
Operating Humidity 0%–80% non-condensing
Storage Humidity 0%–80% non-condensing
Chassis Material Metal
