Cisco IBM SAN48C-6 48-Port 32G FC Switch + 24 Optics

VENDOR: CISCO Mfg Part#: 02JD727
  • The IBM SAN48C-6 from Cisco is a high-performance 48-port Fibre Channel (FC) fabric switch designed for enterprise SAN environments. It includes 24 32G optics, supports a blazing 32 Gbps data rate, and comes in a compact 1RU form factor, making it ideal for dense data center deployments.
1 1

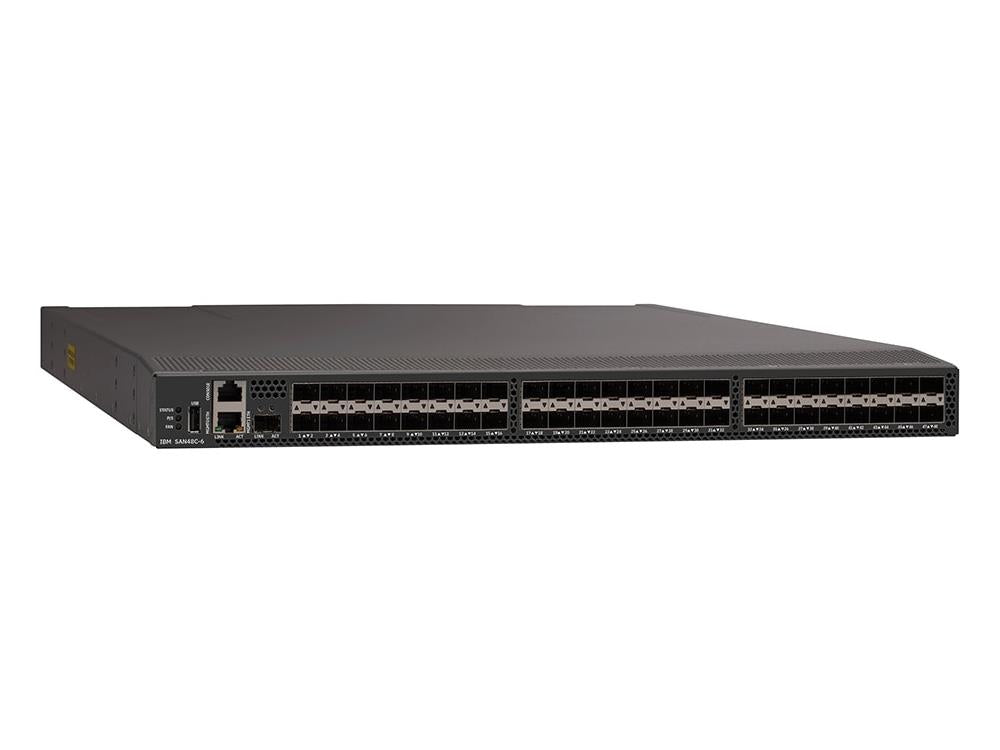

Photo is for illustration purposes only. Actual product may be different.
$33,951.52
$33,951.52
Sale Sold out
Shipping calculated at checkout.
  • 48 Fibre Channel ports with up to 32 Gbps throughput
  • Includes 24 pre-installed 32G optics
  • 1RU rack-mount form factor for space efficiency
  • Interfaces: Fibre Channel, RJ-45, RS-232, USB
  • Remote management via SNMP with LED indicators
  • 650W power supply with 100–240 VAC input range
View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast SAN throughput with 32 Gbps Fibre Channel ports, optimizing enterprise storage performance.
  • Includes 24 high-speed 32G optics, minimizing setup time and reducing additional hardware costs.
  • Compact 1RU design allows for high port density without sacrificing rack space in data centers.

Product Overview

The Cisco IBM SAN48C-6 is a robust 48-port Fibre Channel fabric switch engineered for high-performance SAN deployments. It includes 24 pre-installed 32G optics and supports data transfer rates up to 32 Gbps, enabling fast, low-latency connectivity. Designed in a compact 1RU form factor, it integrates easily into dense data center environments. This switch features Fibre Channel, RJ-45, RS-232, and USB interfaces, along with SNMP-based remote management and LED indicators for device status. With a 650W universal power supply and an operating range of 0–40°C, it offers dependable performance backed by TAA compliance and solid construction.

Specifications

Primary Information
Network Device Type Switch
Model SAN48C-6
Form Factor 1RU
Connectivity Technology Wired
Data Transfer Rate 32 Gbps
Networking / Ports Qty 52
Data Link Protocol Gigabit Ethernet
Status Indicators LED Indicators
Power / Device Type Power Supply
Power / Provided (W) 650 Watt
Power / Voltage Required 100 to 240 VAC
Features Lowers TCO with SAN consolidation; Leverages IBM Storage Networking c-type family components; Provides enterprise-class availability; Transforms businesses with enterprise cloud deployment; Simplifies IT management; Supports robust security; Offers advanced diagnostics and troubleshooting tools

Interfaces / Ports
Interfaces Fibre Channel, RJ-45, RS-232, USB

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO MEXICO
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
Remote Management Protocol SNMP
Interfaces Fibre Channel, RJ-45, RS-232, USB

Dimensions&Miscellaneous
Width 17.3 Inch
Depth 22.3 Inch
Height 1.72 Inch

UNSPSC Code
UNSPSC Code 43222612
