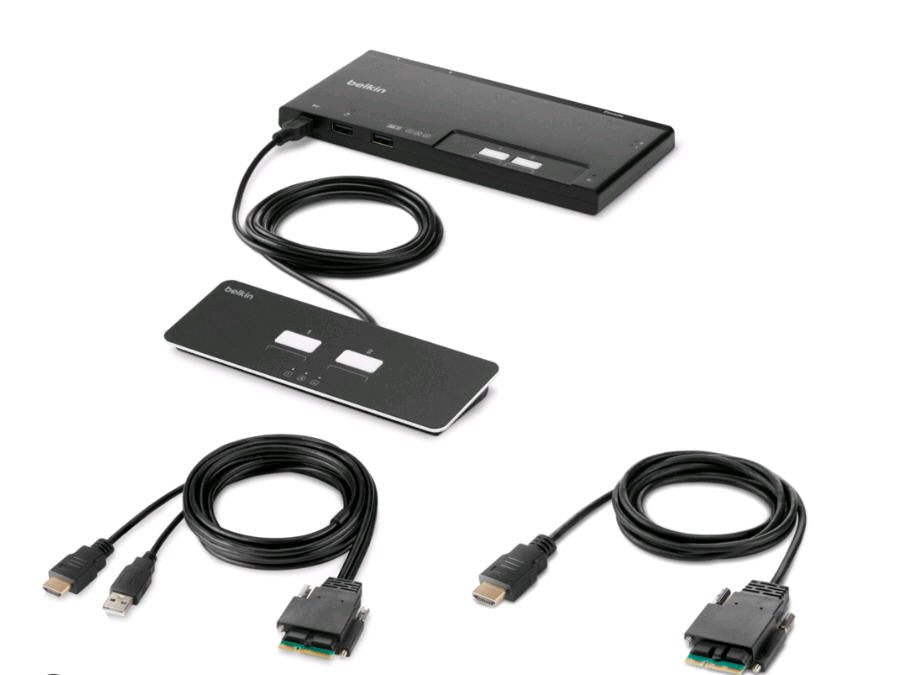

Belkin 2-Port HDMI Modular Secure KVM Switch with Remote

VENDOR: BELKIN Mfg Part#: F1DN102MOD-HH-4 UPC#: 745883789405
1 3
Photo is for illustration purposes only. Actual product may be different.
$434.48
$434.48
Sale Sold out
MSRP: $553.99
Shipping calculated at checkout.
  • 2-port secure HDMI KVM switch supporting single monitor setup
  • Maximum resolution of 4K @ 30Hz for clear visual fidelity
  • USB, HDMI, and DVI interface options for broad compatibility
  • Desktop form factor with modular integration and remote control
  • TAA-compliant and made in the United States
  • PP4.0-certified design for enhanced security environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered for secure deployments with PP4.0 certification and TAA compliance
  • Delivers streamlined workflow with 2-port control and high-resolution HDMI support
  • Made in the United States, ensuring high manufacturing standards for federal and enterprise use

Product Overview

The Belkin 2-Port HDMI Modular Secure KVM Switch (F1DN102MOD-HH-4) is designed for data-sensitive environments requiring secure, seamless control of two systems from one set of peripherals. With support for 4K@30Hz resolution and TAA-compliant construction in the United States, it ensures both performance and compliance. Modular architecture with a remote control option provides practical flexibility, while dedicated console and host ports support USB, HDMI, and DVI connectivity. This desktop-form KVM switch is ideal for secure government, defense, and enterprise workstations.

Specifications

Product Overview
Product Type Secure Modular KVM Switch
Form Factor Desktop
Number of Computers Supported 2
Max Resolution 4K@30Hz
Max Monitors Supported 1
Power Supply External power adapter
Power Requirements 12V DC, 1A
Power Consumption 12W (typical)
Weight 2.25 lbs (1.02 kg)

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
FCC Certification Yes
UL Listed Yes
RoHS Compliant Yes
Security Certifications NIAP Protection Profile v4.0

Advanced Security Features
Security Architecture Physically isolated signal paths per channel
Hardware-Based Separation Yes
Anti-Tamper Protection Yes
Tamper-Evident Seals Yes
Keyboard/Mouse Emulation Always-on, to prevent unwanted data leakage
Unidirectional Data Flow Enforcement Yes
Peripheral Isolation No shared USB peripherals between ports

Interfaces
Console Keyboard/Mouse Ports 2 x USB Type-A
Console Video Port 1 x HDMI
Host Interface Ports 2 x HDMI, 2 x USB B
Optional Interface Expansion Modular interface slot (HDMI/DVI/DisplayPort options)
Remote Control Port 1 x RJ-45 (for remote control unit)
Audio Support No

Physical & Environmental
Dimensions (W x D x H) 7.87 x 4.25 x 1.73 in (200 x 108 x 44 mm)
Enclosure Type Metal
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% (non-condensing)
MTBF 100,000 hours

Cloud Management & Licensing
Cloud Management Not applicable
Management Interface Remote Control Module (via RJ45)
Licensing Requirements None
